Bosch Rexroth 3842998322

FLOW RACK ECOFLOW

MPN: 3842998322
Category: EcoFlow flow rack

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998322?

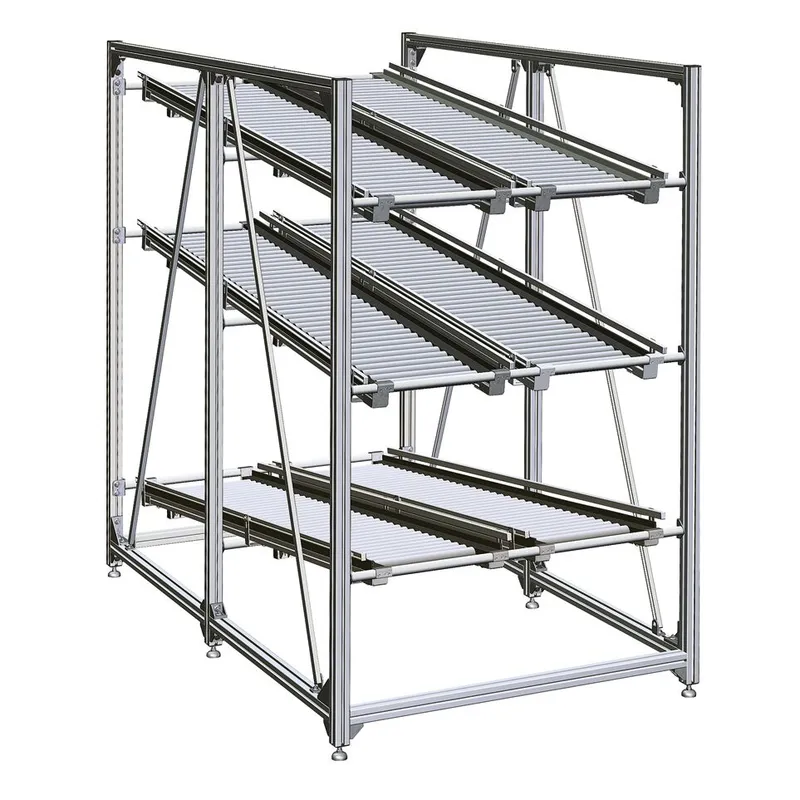

Flow Rack EcoFlow

Material supply in the supermarket or directly at the workstation

For heavy loads

Full-width rollers for the transport and supply of blister packs or cardboard boxes

Available as ESD-conductive version

Design: Fully assembled or as a kit for self-assembly

Allows for the addition of any desired modules, including cross ties and conveyor tracks as well as individual components

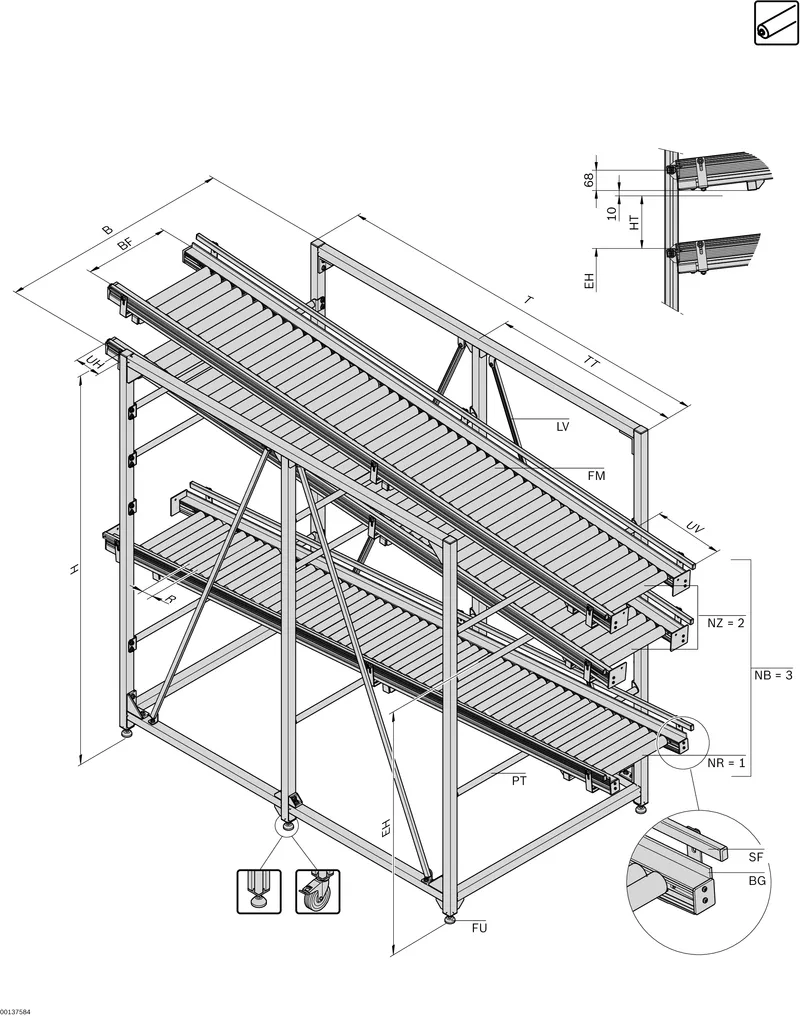

Specifications

Conductivity [ESD]	yes, no
Packaging unit	1
Version [A]	Disassembled, assembled
Foot type [FU]	Leveling foot, LR
Slide rail border BG	inside, outside
Conveyor medium FM	Rollers in plastic, steel, stainless steel
Gradient G	0 ... 10 % (recommended: 6 %)
Roller distance R	50, 100 mm
Lateral guide SF	with; without
Number of conveyor tracks [NB]	0 ... 20
Number of return levels [NR]	0 ... 7
Number of supply levels [NZ]	1 ... 8
Cross tie type [PT]	Tubular cross tie, tubular cross tie with bracket, profile cross tie, double tubular cross tie
Front conveyor track projection [UV]	0, 50 ... 1000 mm
Conveyor track width min [BF min] [mm]	200
Conveyor track width max [BF max] [mm]	892
Flow rack system width min [B] [mm]	400
Flow rack system width max [B] [mm]	1000
Removal height of the lower supply level min [EH] [mm]	263
Removal height of the lower supply level max [EH] [mm]	1800
Flow rack system height min [H] [mm]	600
Flow rack system height max [H] [mm]	2000
Flow rack system depth min [T] [mm]	400
Flow rack system depth max [T] [mm]	6000
Transportation height min [HT] [mm]	100
Transportation height max [HT] [mm]	1200
Division of flow rack depth [TT]	1000, 1500
Number of side elements [Typ]	0, 1, 2
Rear conveyor track projection [UH]	0, 50 ... 1000 mm
Weight [kg]	0
