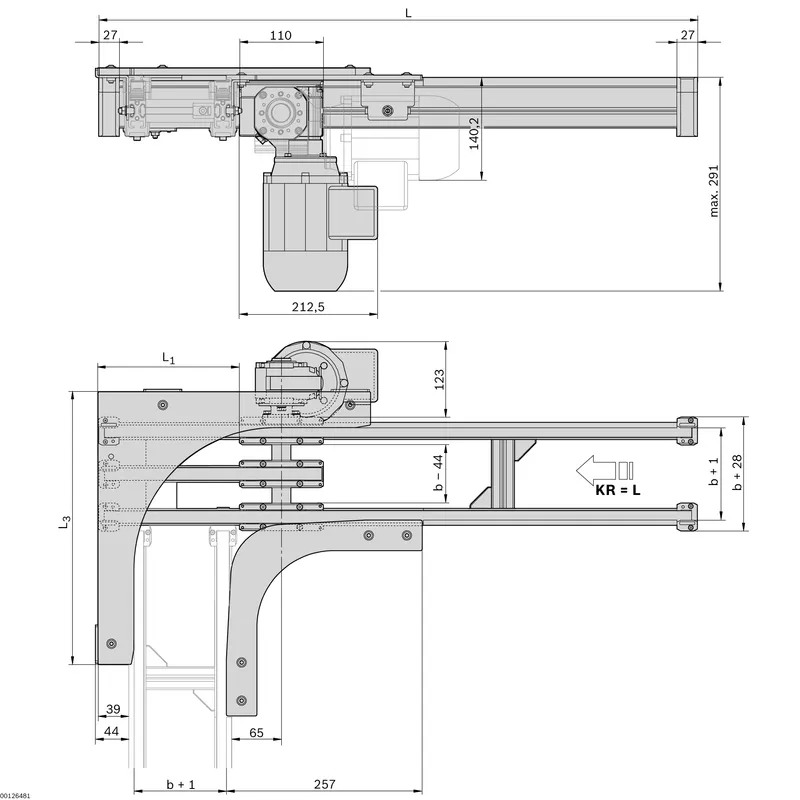

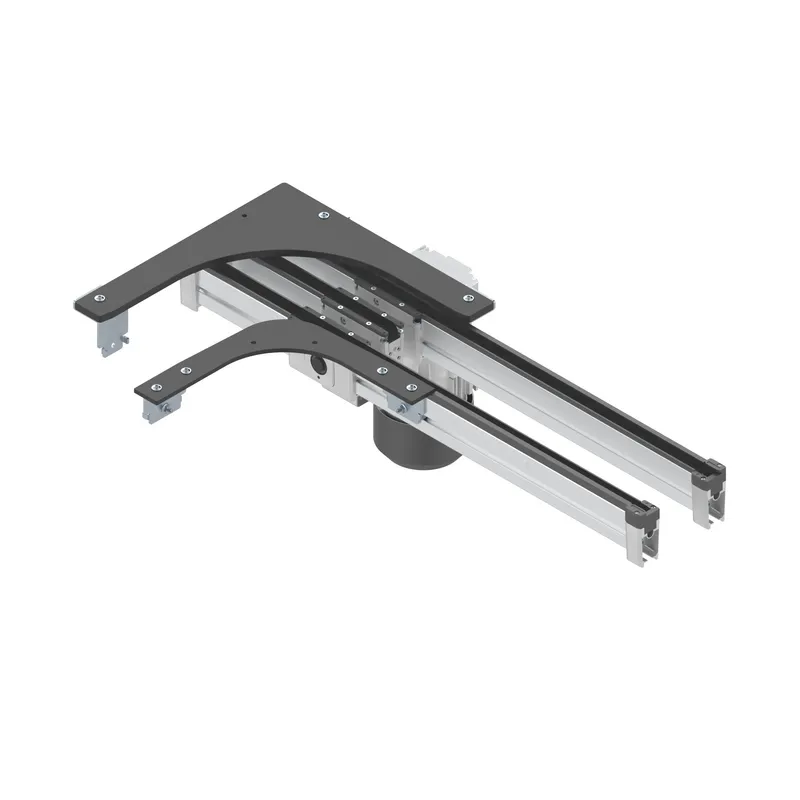

CURVE MODULE CU 1/90

MPN: 3842998287
Category: Curve CU 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998287?

Curve CU 1/90

The drive takes place via the belt section. No additional drive is required for the curve function.

Section load up to 30 kg

Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA

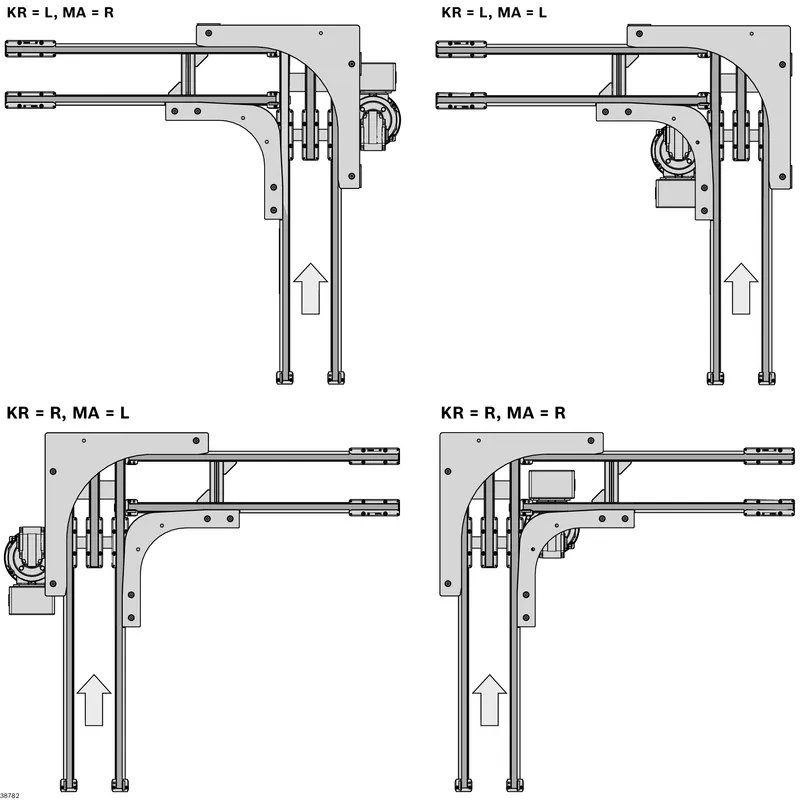

Curve direction right (KR = R) or left (KR = L)

Motor mounting right (MA=R) with KR=L or motor mounting left (MA=L) with KR=R

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Special models on request

Specifications

ESD	Yes
Length max [L max] [mm]	5000
Length min [L min] [mm]	415
Dry room [%rF]	<1
Section load in accumulation operation [kg]	30
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min

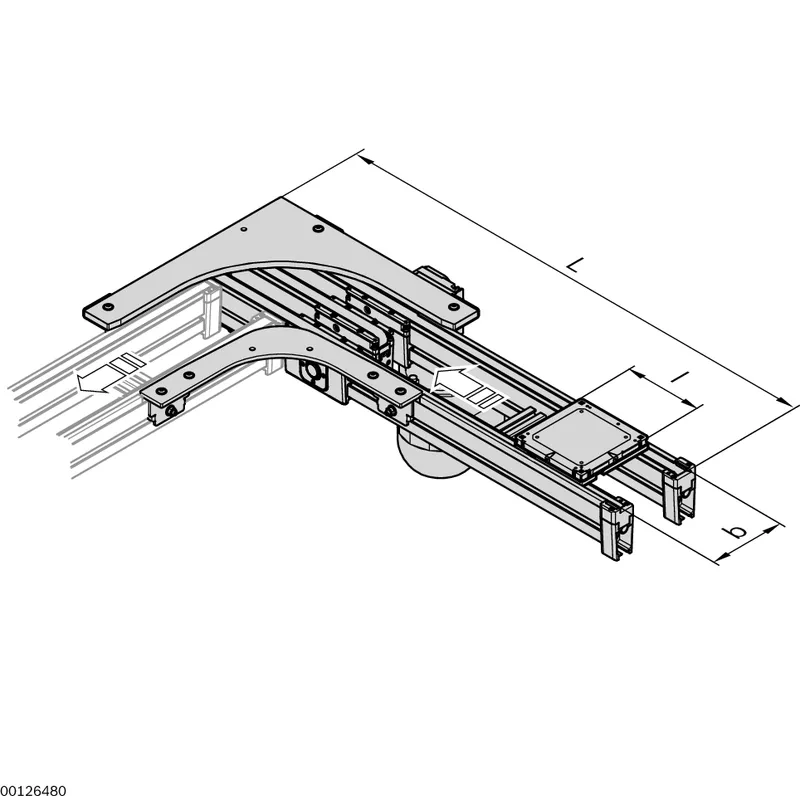

Length in direction of transport [lT] [mm]	120; 160; 80
Scope of delivery	Belt section with third track; Connection kit; Fastening material; Inner guide; Outer guide
Delivery information	Motor mounting MA = L with KR = R; MA = R with KR = L; Partially assembled
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7
Recommended accessories	Leg sets SZ 1/...
Weight [kg]	0
