Bosch Rexroth

Bosch Rexroth 3842998277

CONVEYOR SECTION CS/C EINSPUR

MPN: 3842998277
Category: Belt section flat top chain

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998277?

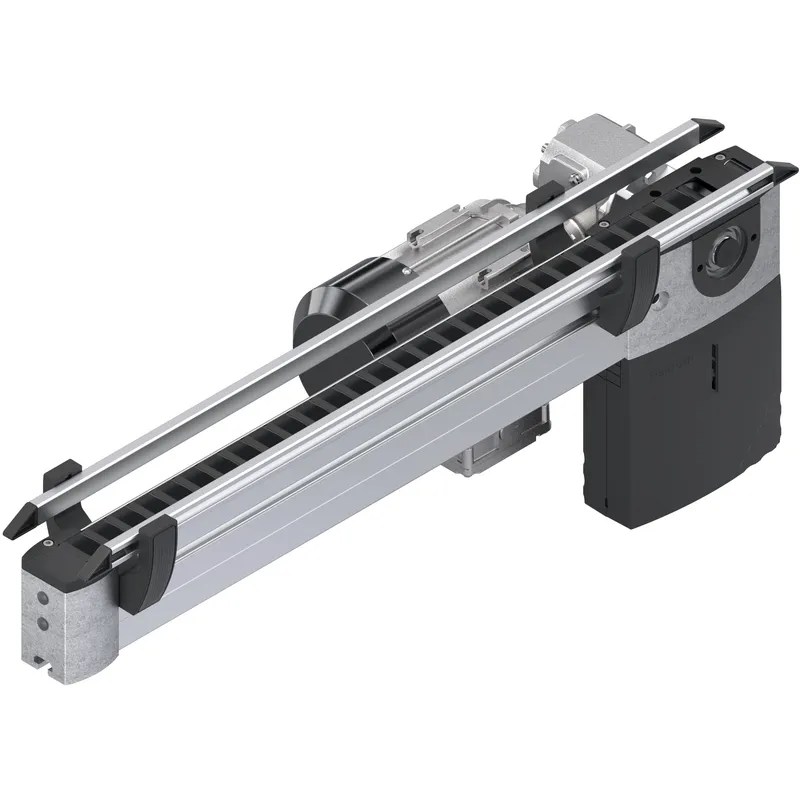

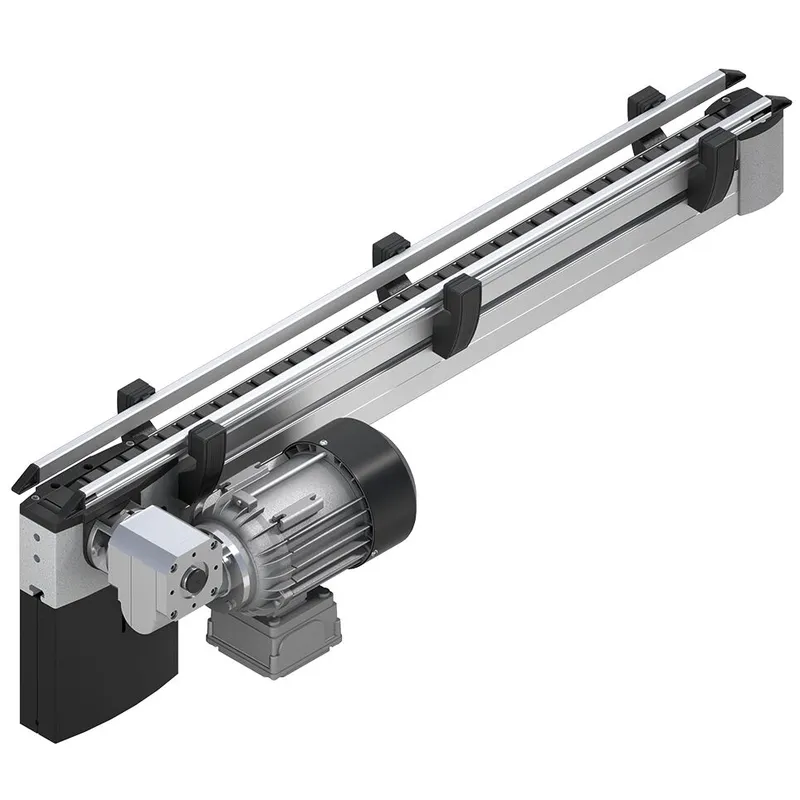

The single-track section CS/C is a conveyor section that is ready for operation with own drive for the transportation of small parts for mounting and assembly workstations

Motor connection: optionally with cable/plug or terminal box motor connection

Motor mounting right or left

Conveyor medium: plastic flat top chain (with KA = A suitable for use in an EPA)

Special models on request

Reversible operation is possible for l ≤ 2000 mm and environments without small parts

Specifications

Condition on delivery	Assembled
ESD	Yes
Length max [l max] [mm]	6000
Length min [L min] [mm]	350
Operating temperature [T] max	+40 °C
Section load in accumulation operation [kg]	100
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Notice	Max. section load in accumulation operation = 100 kg at l = 2001 ... 6000 mm; Max. section load in accumulation operation = 70 kg at l = 350 ... 2000 mm
Preferred values [mm]	42; 52; 62; 72
Conveyor medium	Plastic flat-top chain (with KA = A suitable for use in an EPA)
Recommended accessories	Connection kits; Decentralized automatic lubrication unit LU 2, or central automatic lubrication unit LU 2/P; Leg sets SZ 2/...
Weight [kg]	0
