Danfoss 22610-06-08Z

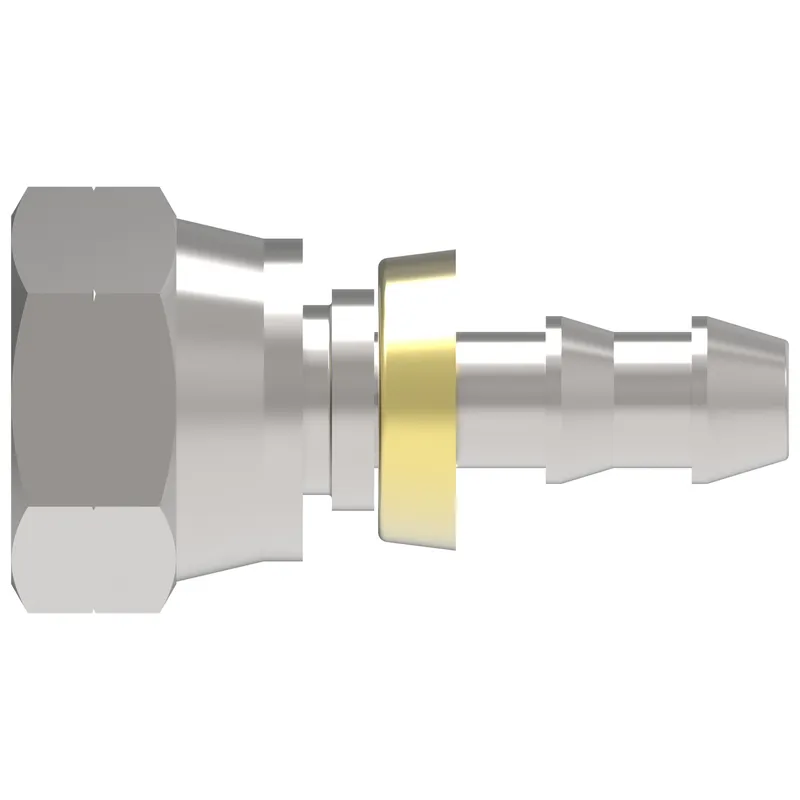

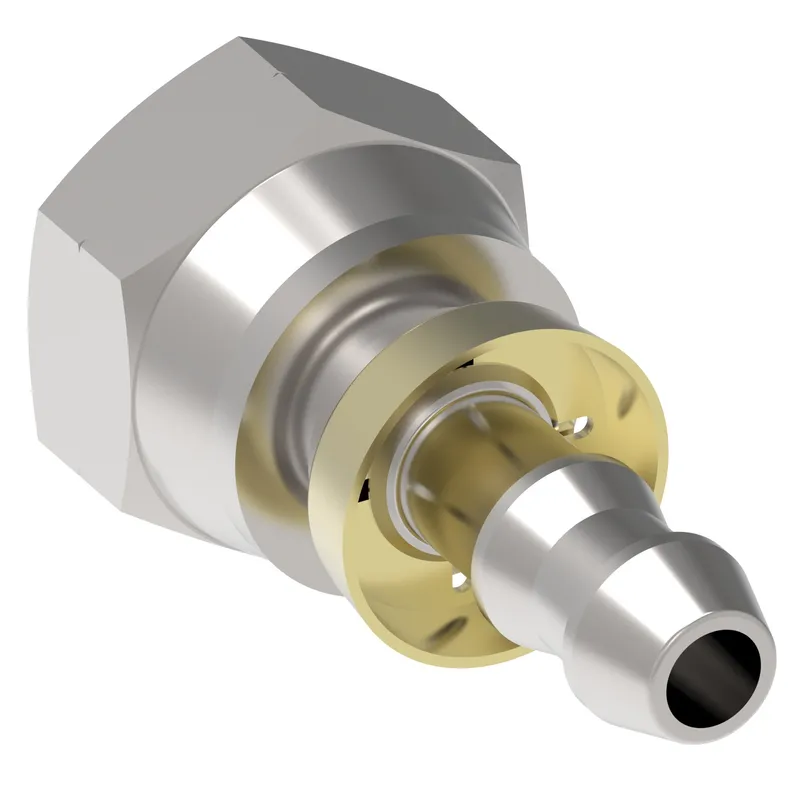

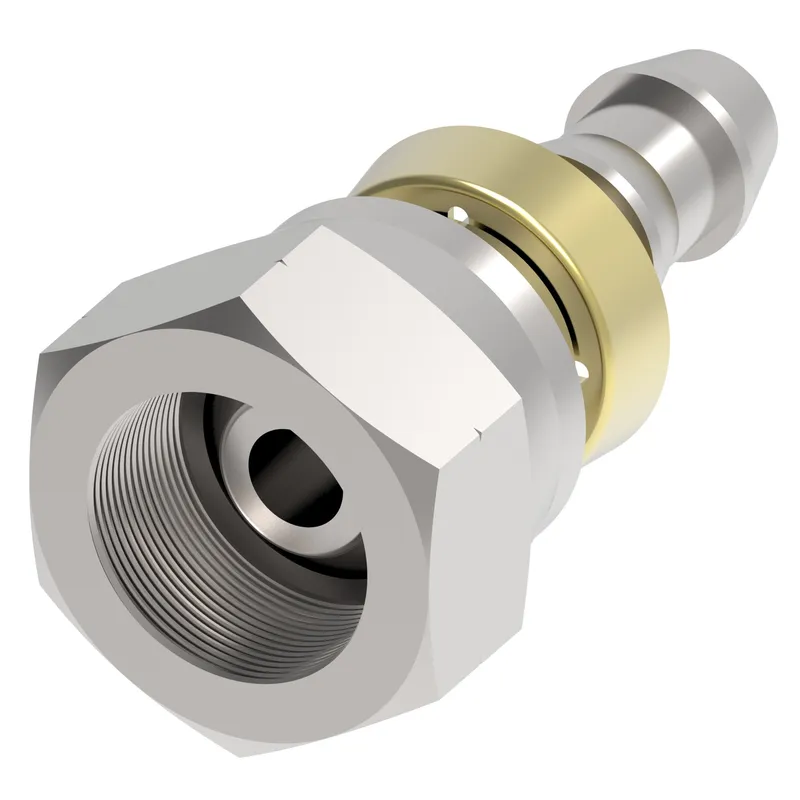

HOSE NIPPLE ASSY, 2P/08, BF/06, CS, STR

MPN: 22610-06-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22610-06-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/08, BF/06, CS, STR, manufacturer part number 22610-06-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.670
A dimension MM	42.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	33-40 lb-ft(45-55 Nm)
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.860
Hex size 1 MM	21.844
Hose cut off factor IN	0.630
Hose cut off factor MM	16.200
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.900
Product height in	1.000
Product height mm	25.400
Product length in	1.670
Product length mm	42.418
Product material	Carbon steel
Product width in	0.860
Product width mm	21.844
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 3/8
