Danfoss 22611-04-06Z

HOSE NIPPLE ASSY, 2P/06, BF/04, CS, STR

MPN: 22611-04-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

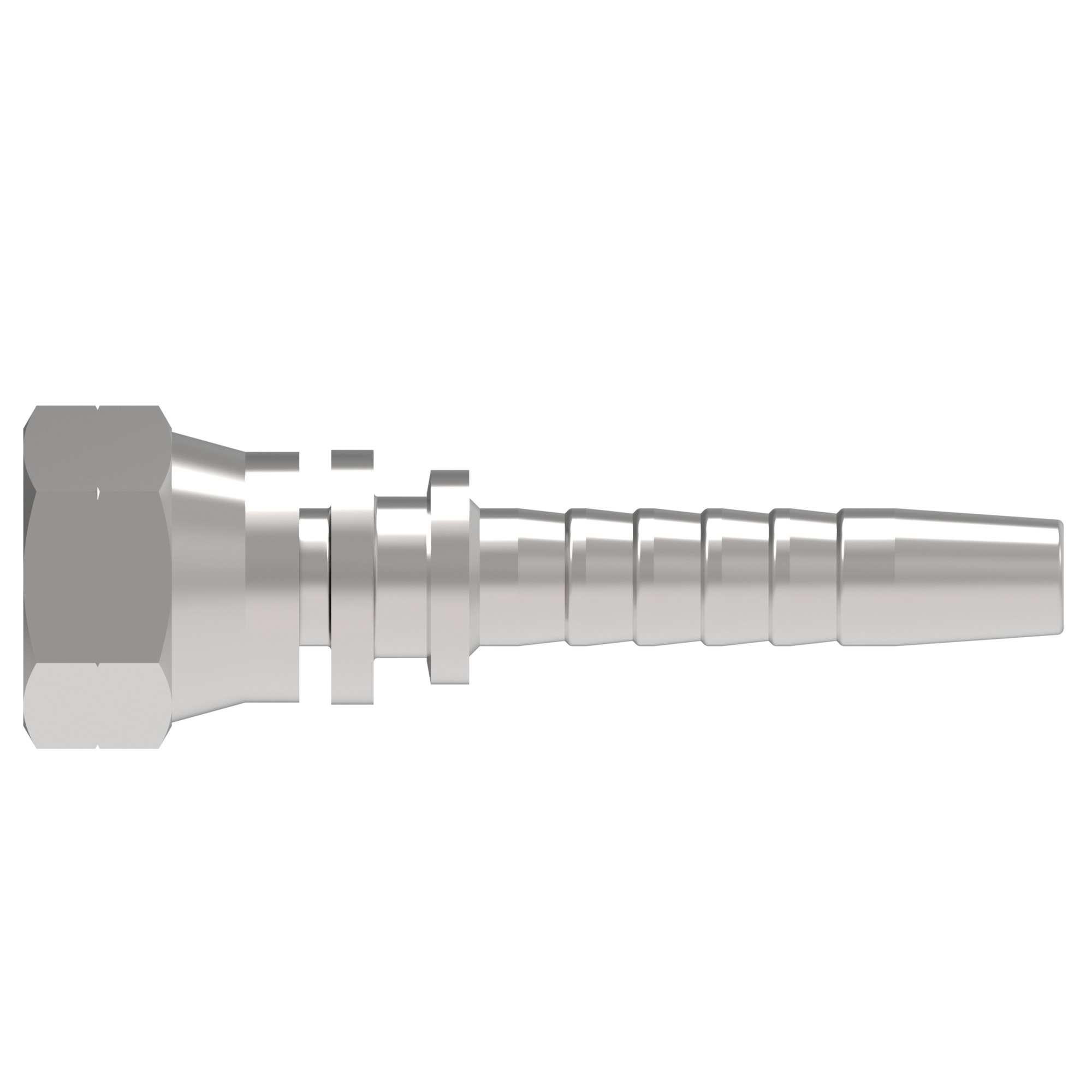

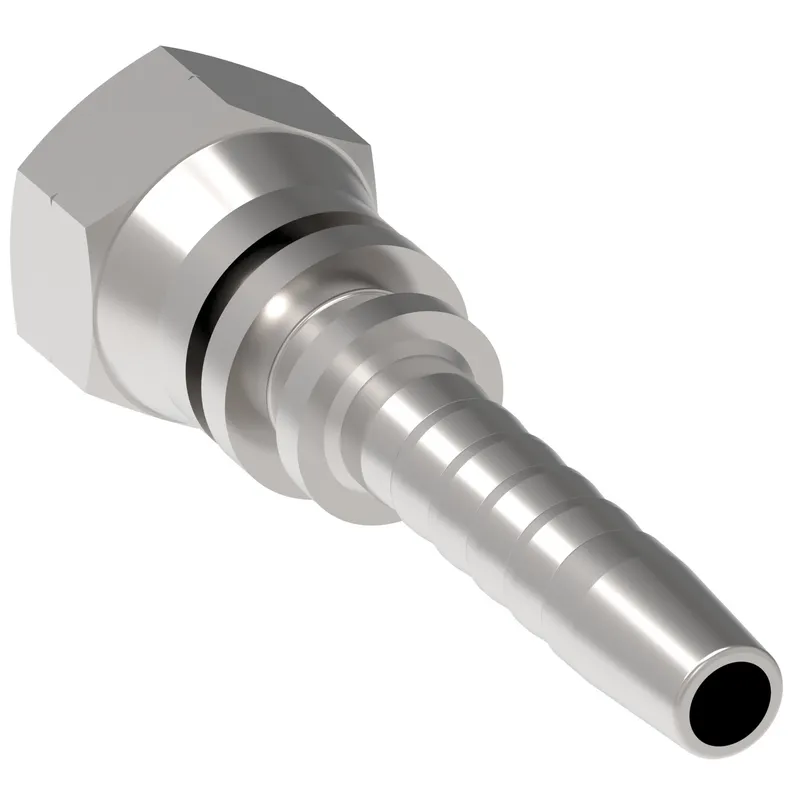

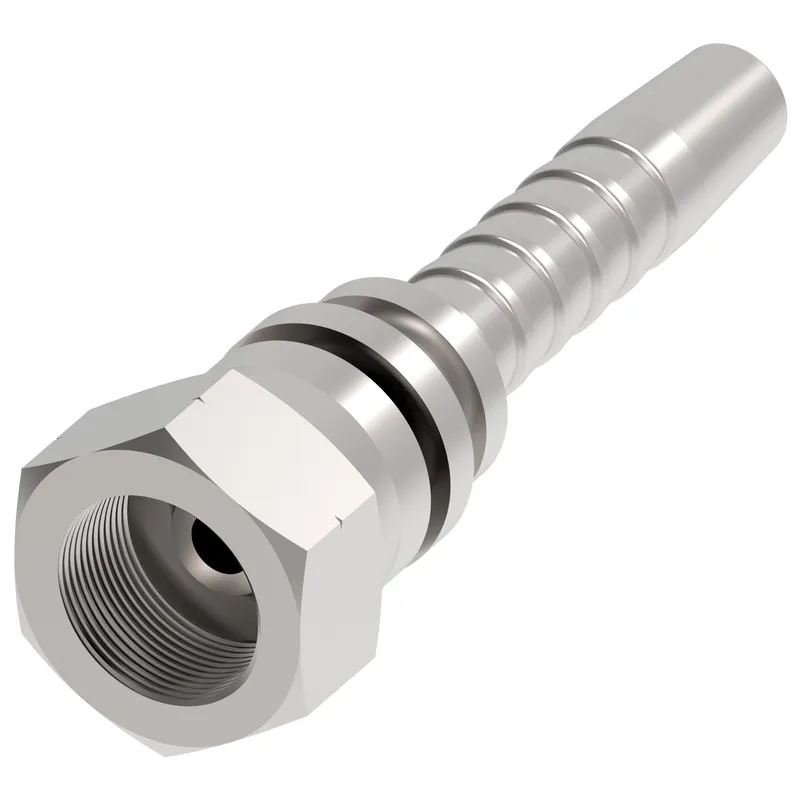

What is the Danfoss 22611-04-06Z?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/04, CS, STR, manufacturer part number 22611-04-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.880
A dimension MM	48.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	19-23 lb-ft(25-30 Nm)
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hose cut off factor IN	0.710
Hose cut off factor MM	18.000
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	0.870
Product height mm	22.098
Product length in	2.110
Product length mm	53.594
Product material	Carbon steel
Product width in	0.750
Product width mm	19.05
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	G 1/4
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
