Danfoss 22610-08-08Z

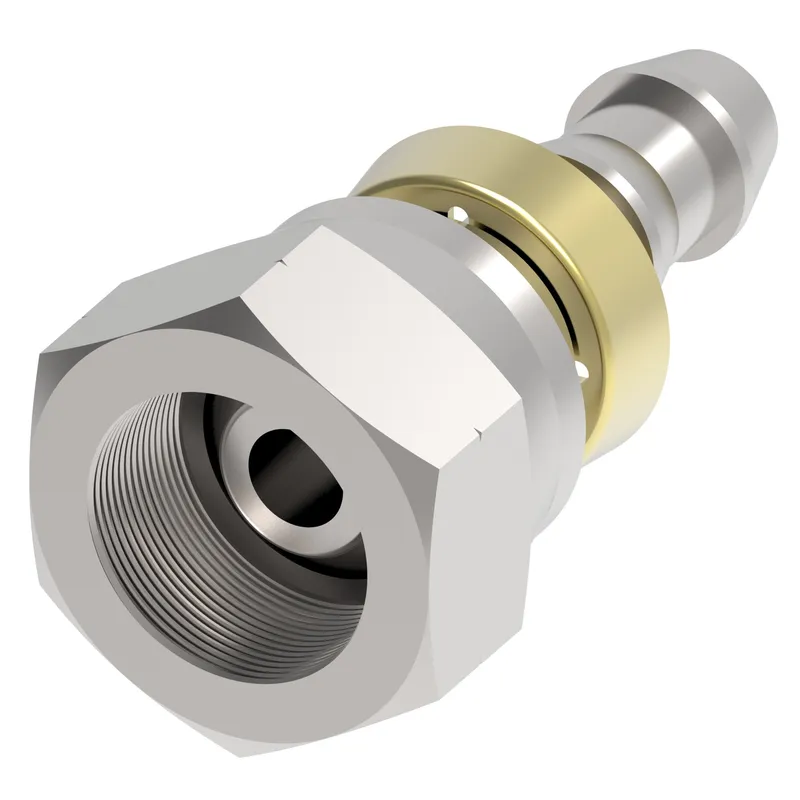

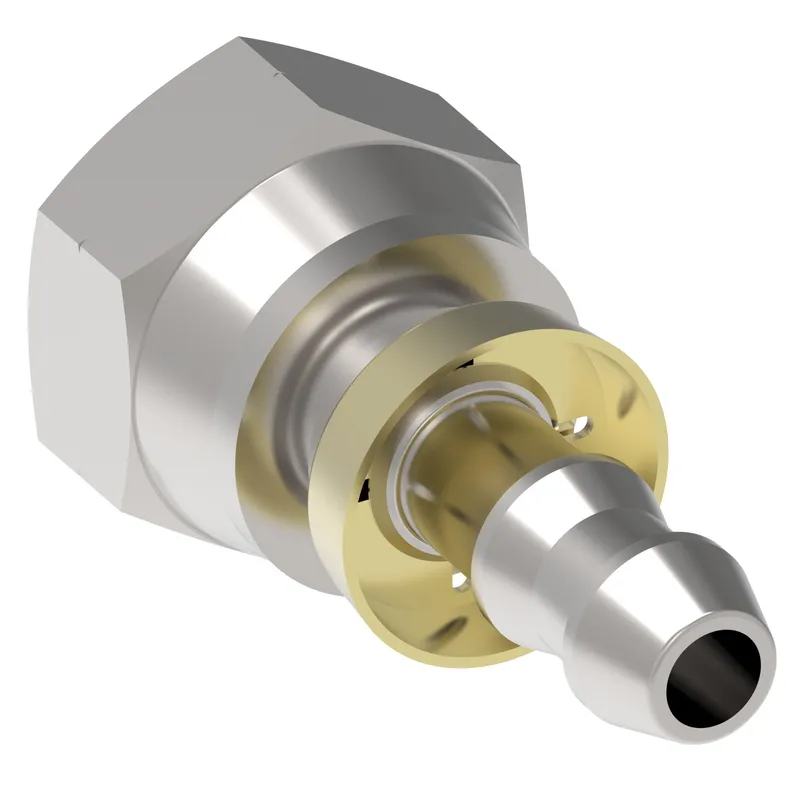

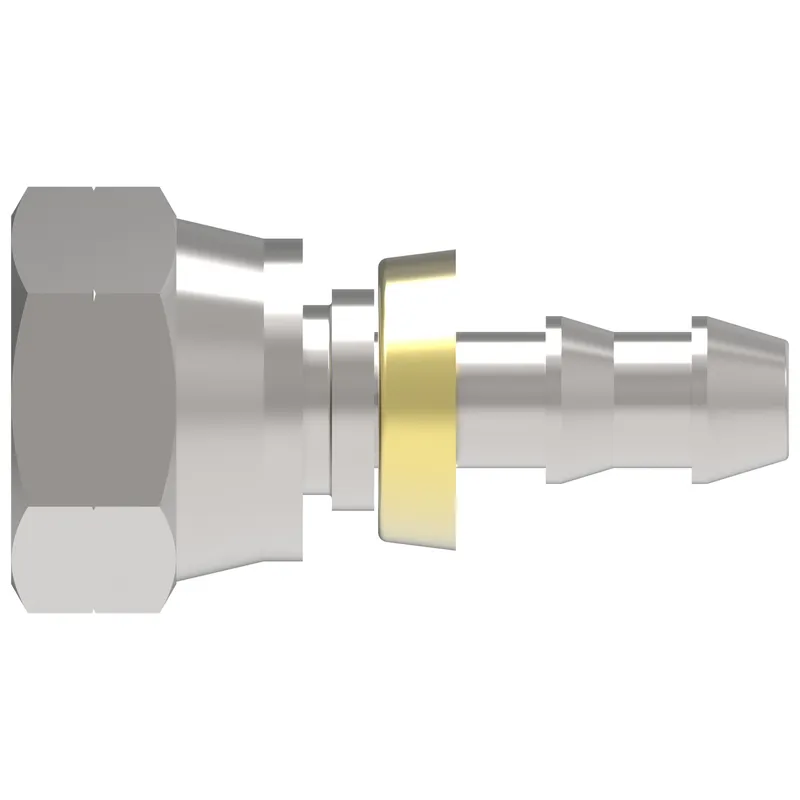

HOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR

MPN: 22610-08-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22610-08-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR, manufacturer part number 22610-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.750
A dimension MM	44.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-8
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 MM	27.000
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	0.710
Hose cut off factor MM	18.200
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.900
Product height in	1.220
Product height mm	30.988
Product length in	2.050
Product length mm	52.070
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1/2

22610-08-08Z: frequently asked questions

When can 22610-08-08Z be shipped?

22610-08-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22610-08-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22610-08-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22610-08-08Z, subject to availability and destination.
