Danfoss 22610-06-06Z

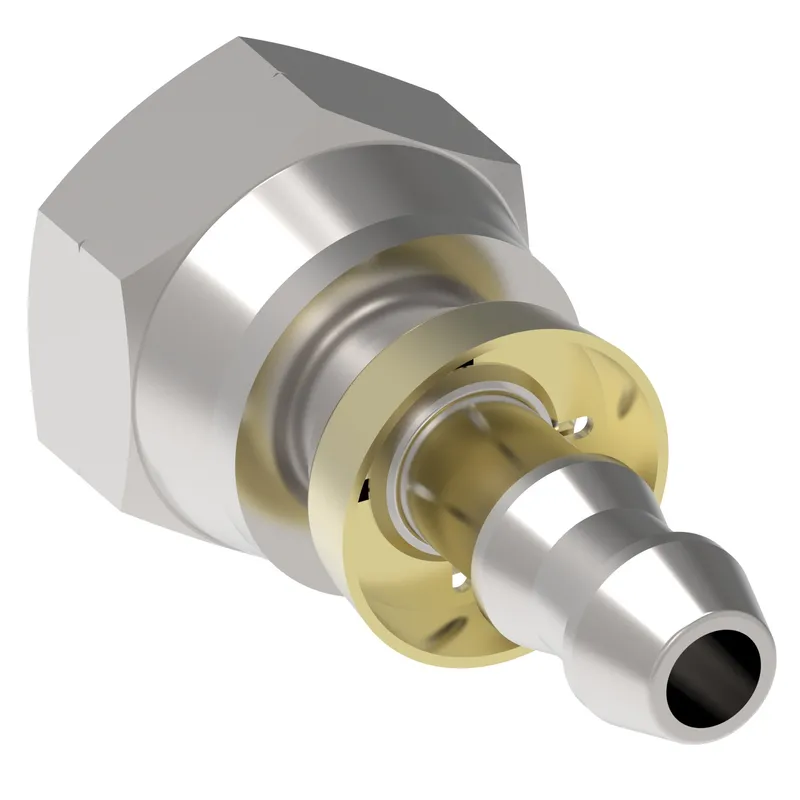

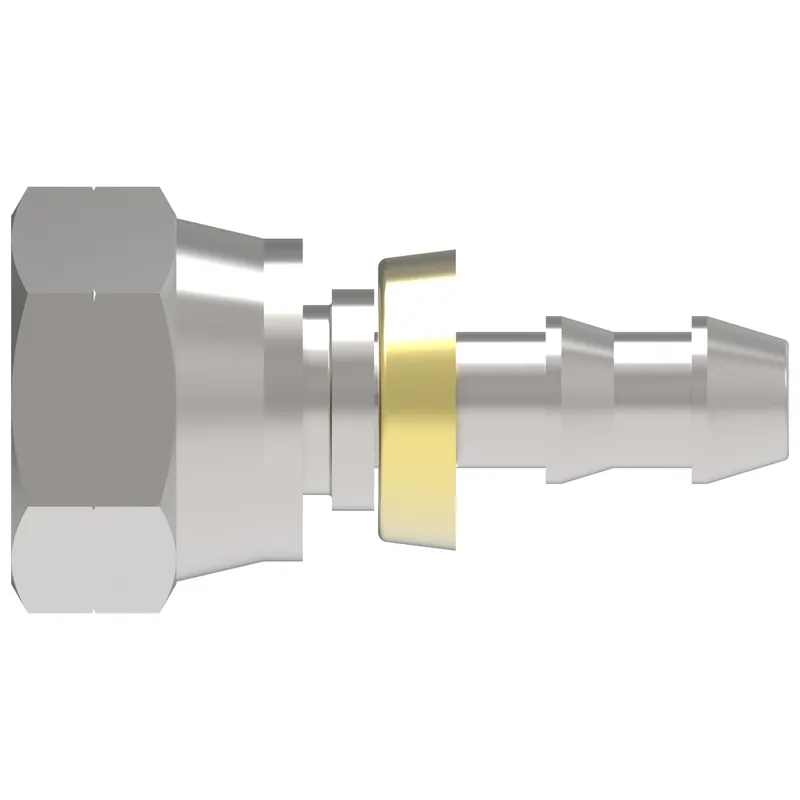

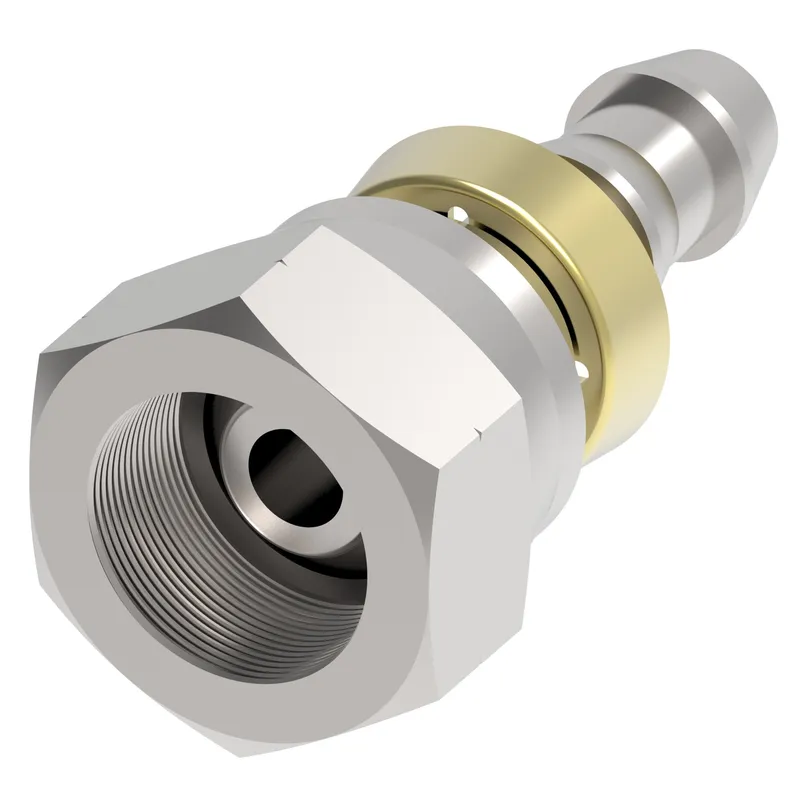

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, STR

MPN: 22610-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22610-06-06Z?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/06, CS, STR, manufacturer part number 22610-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.510
A dimension MM	38.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	33-40 lb-ft(45-55 Nm)
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.866
Hex size 2 IN	0.866
Hex size 2 MM	21.996
Hose cut off factor IN	0.640
Hose cut off factor MM	16.500
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	1.000
Product height mm	25.400
Product length in	1.760
Product length mm	44.704
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 3/8
