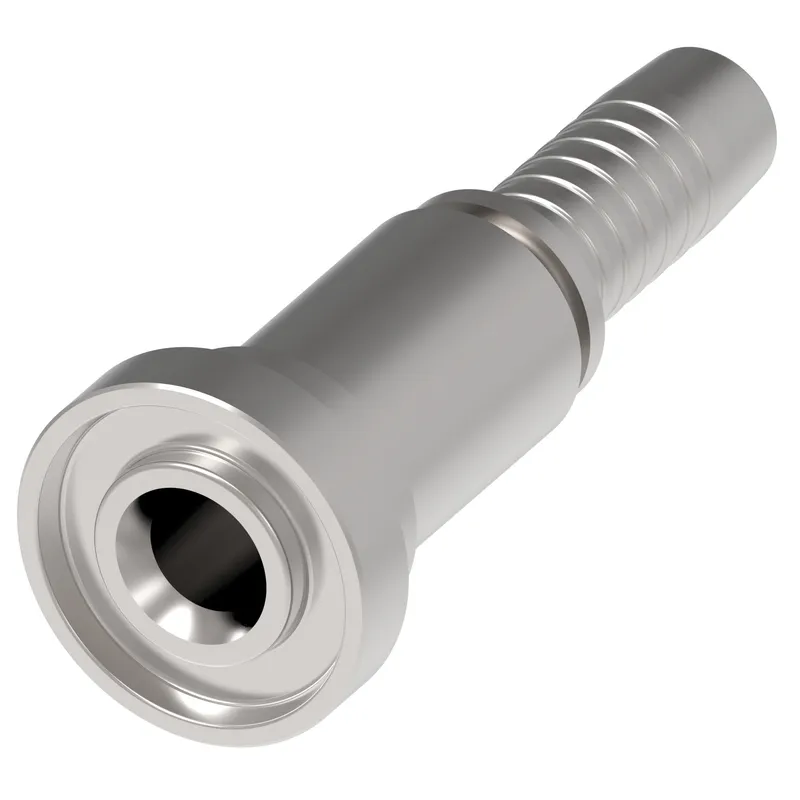

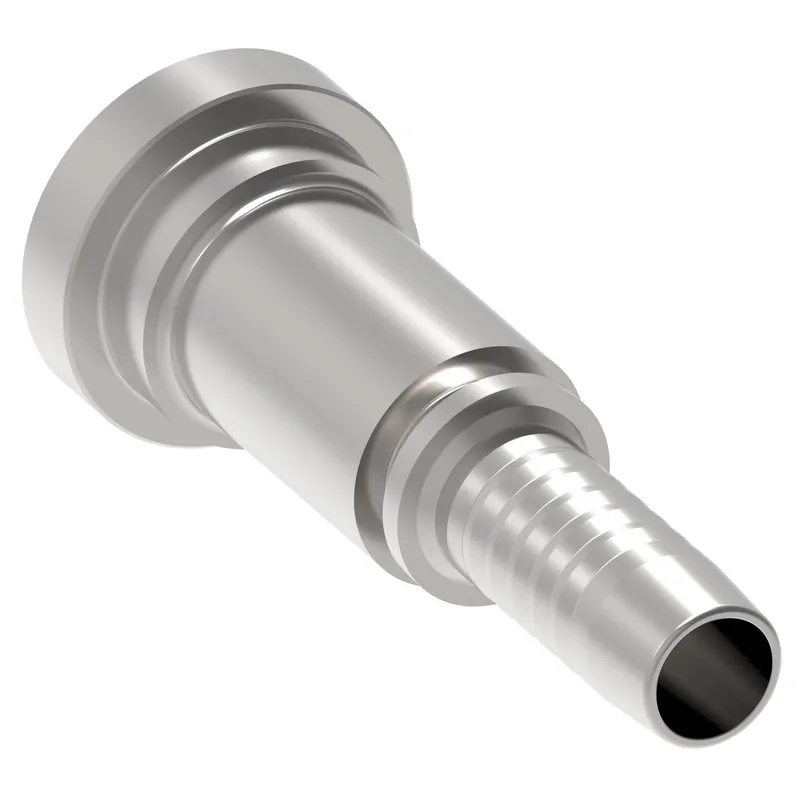

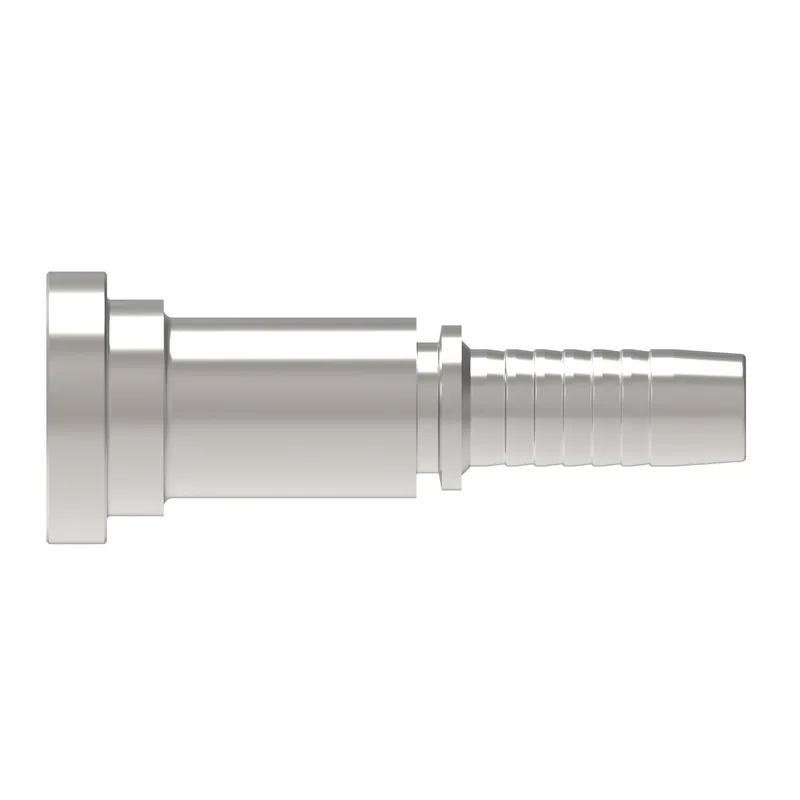

Danfoss 87311-16-16SR

HOSE NIPPLE ASSY, 2P/16, C61/16, AN, STR

MPN
87311-16-16SR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311-16-16SR?

Danfoss HOSE NIPPLE ASSY, 2P/16, C61/16, AN, STR, manufacturer part number 87311-16-16SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.897
A dimension MM99.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses EH080, EH081, EH084, H0084, H0554, H345, H6008, H6009, H9568, H9699
Construction StyleCrimp
End size 1-16
End size 2-16
End Type 1Split flange code 61
End Type 2Line/hose/tube
Hose cut off factor IN2.047
Hose cut off factor MM52.000
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in1.748
Product height mm44.399
Product length in3.898
Product length mm98.999
Product material304 Stainless steel
Product width in1.748
Product width mm44.399
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
