Danfoss 72011Y-04-04Z

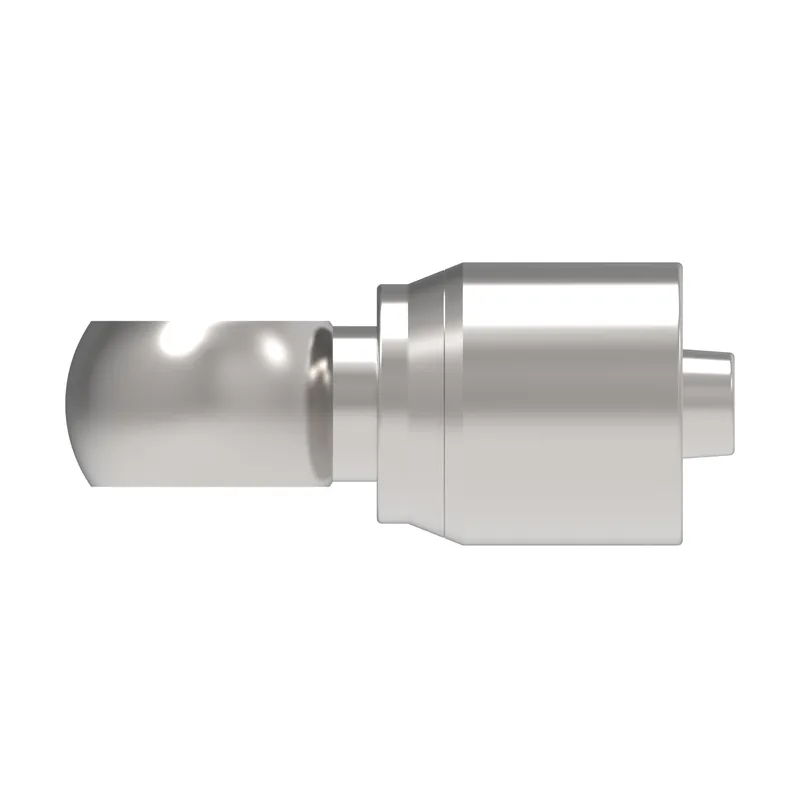

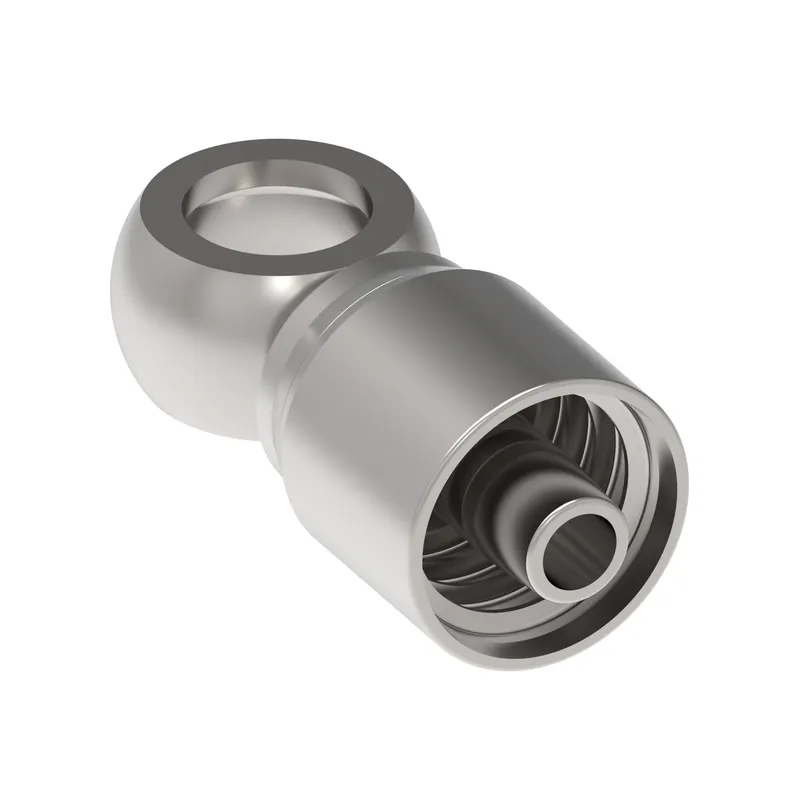

HOSE NIPPLE ASSY,1P/04,BANJO/04,CS,STR

MPN: 72011Y-04-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 72011Y-04-04Z?

Danfoss HOSE NIPPLE ASSY,1P/04,BANJO/04,CS,STR, manufacturer part number 72011Y-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.870
A dimension MM	47.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Construction Style	Crimp
End Type 1	Banjo DIN 7642 Form B, L.D.
Finish plating	Zinc plating
Hose cut off factor IN	0.767
Hose cut off factor MM	19.500
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	0.590
Product height mm	14.986
Product length in	2.340
Product length mm	59.436
Product material	Carbon steel
Product width in	0.940
Product width mm	23.876
Thread sealant	No
Thread size 1	G 1/4
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
