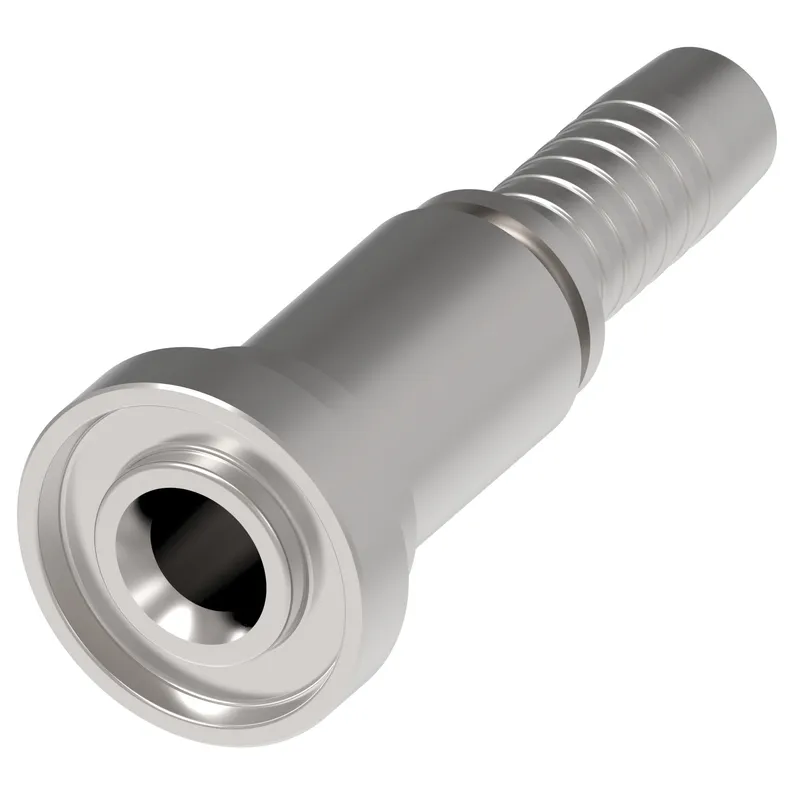

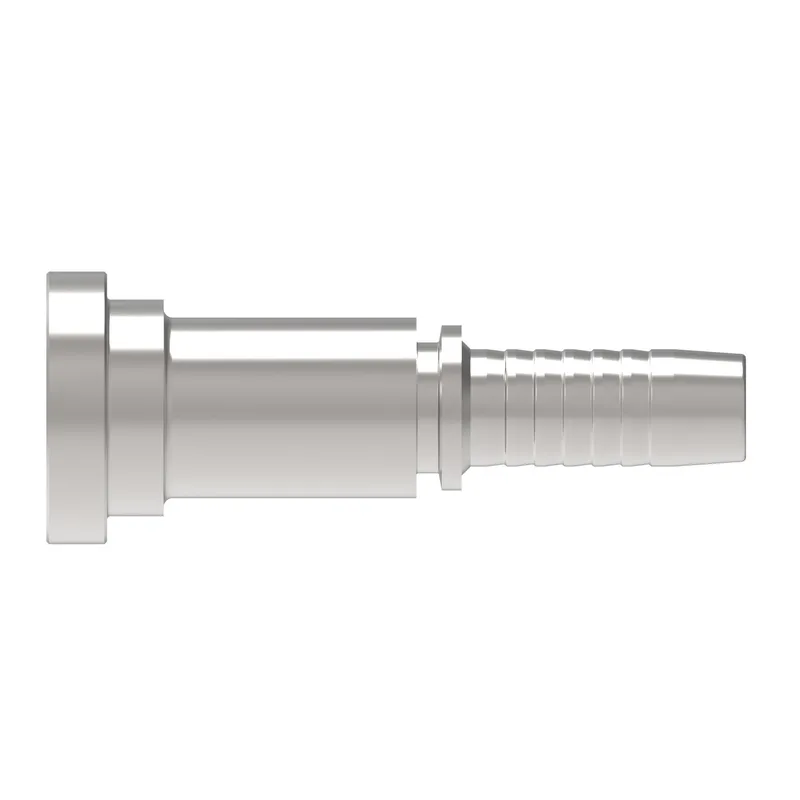

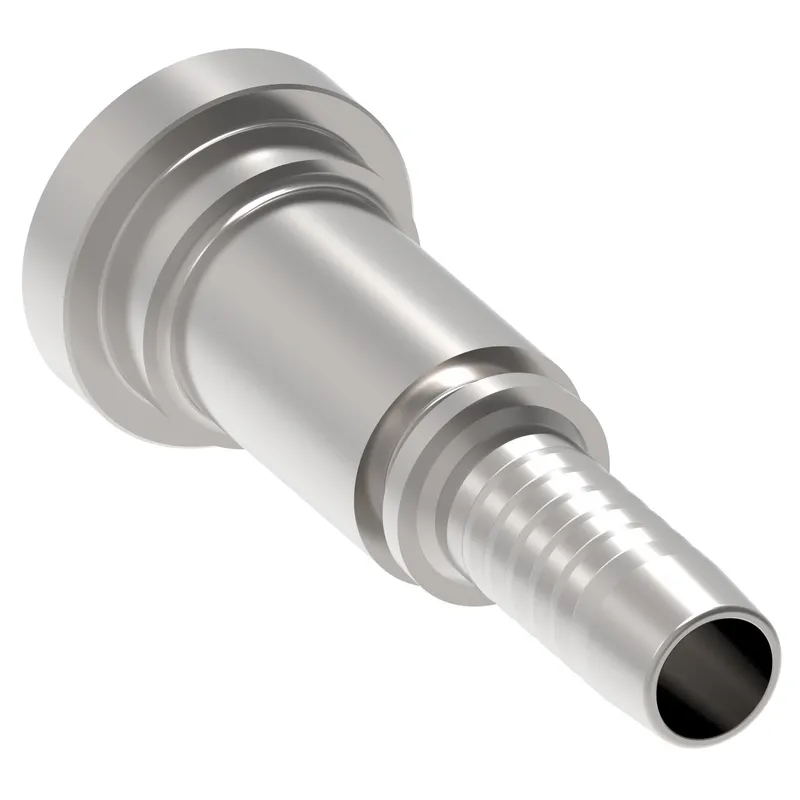

Danfoss 87311-12-16Z

HOSE NIPPLE ASSY, 2P/16, C61/12, CS, STR

MPN
87311-12-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311-12-16Z?

Danfoss HOSE NIPPLE ASSY, 2P/16, C61/12, CS, STR, manufacturer part number 87311-12-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.779
A dimension MM96.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Construction StyleCrimp
End size 1-12
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN1.929
Hose cut off factor MM49.000
Inside diameter IN0.826
Inside diameter MM21.000
Product height in1.500
Product height mm38.100
Product length in3.780
Product length mm95.999
Product materialCarbon steel
Product width in1.500
Product width mm38.1
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87311-12-16Z: frequently asked questions

When can 87311-12-16Z be shipped?

87311-12-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87311-12-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87311-12-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311-12-16Z, subject to availability and destination.
