Danfoss 87311-08-08Z

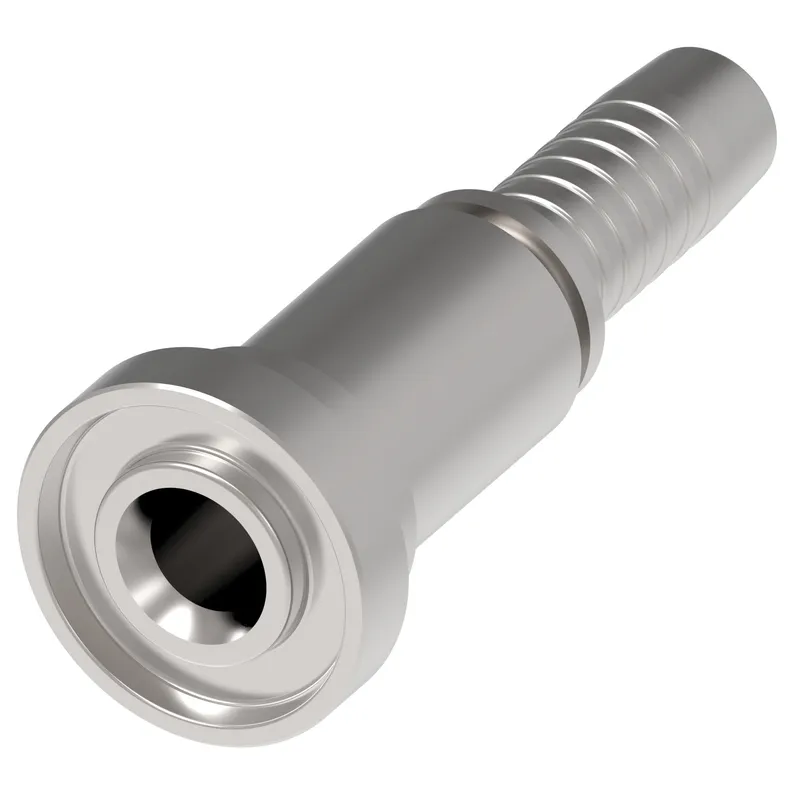

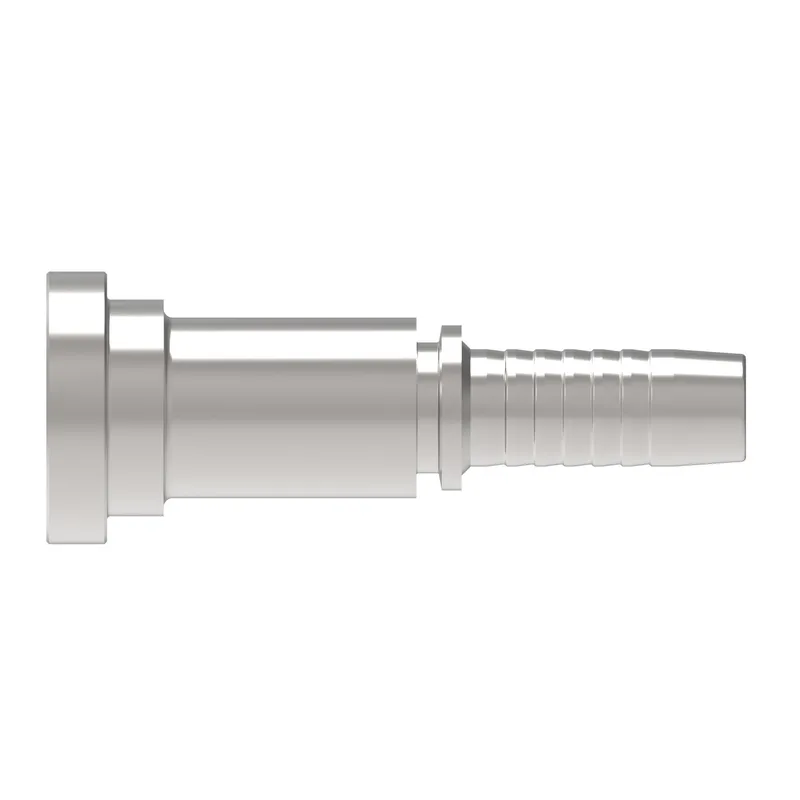

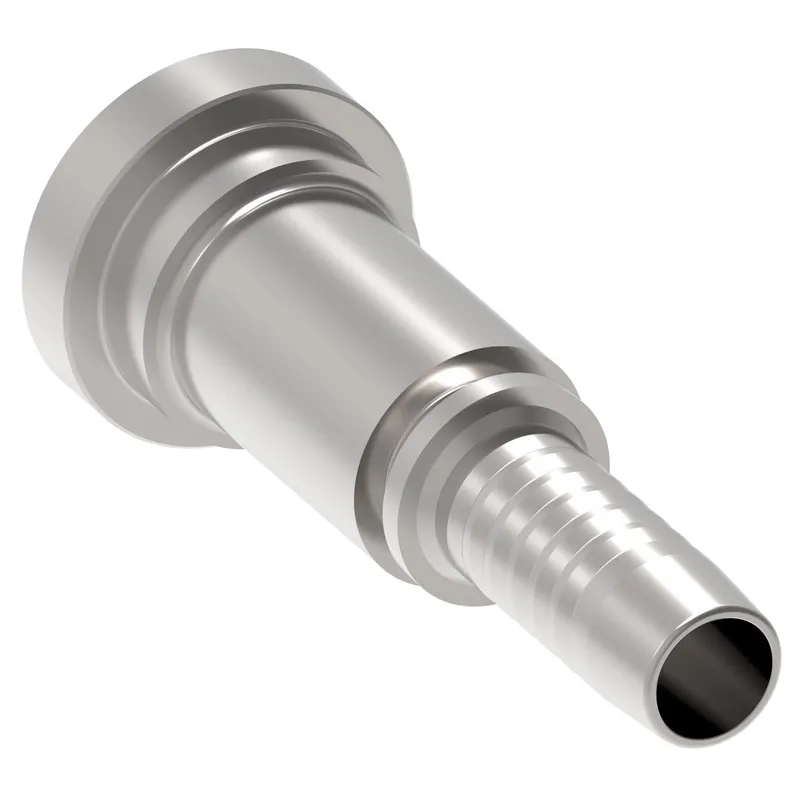

HOSE NIPPLE ASSY, 2P/08, C61/08, CS, STR

MPN
87311-08-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311-08-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/08, C61/08, CS, STR, manufacturer part number 87311-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.051
A dimension MM77.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Construction StyleCrimp
End size 1-8
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN1.811
Hose cut off factor MM46.000
Inside diameter IN0.393
Inside diameter MM10.000
Product height in1.189
Product height mm30.201
Product length in3.051
Product length mm77.500
Product materialCarbon steel
Product width in1.189
Product width mm30.201
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
