Danfoss 87311-12-12SR

HOSE NIPPLE ASSY, 2P/12, C61/12, AN, STR

MPN
87311-12-12SR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

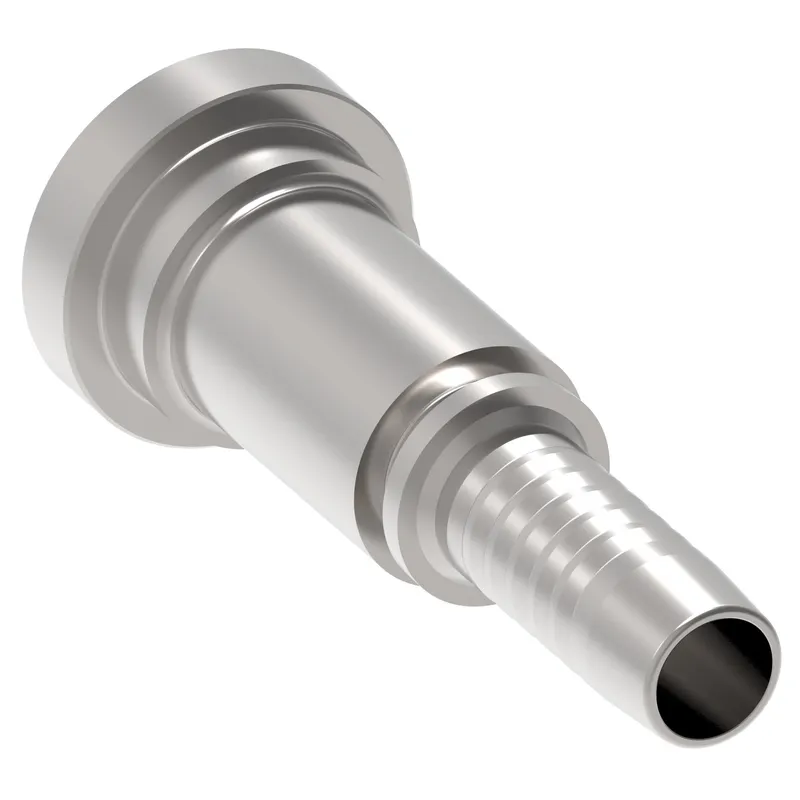

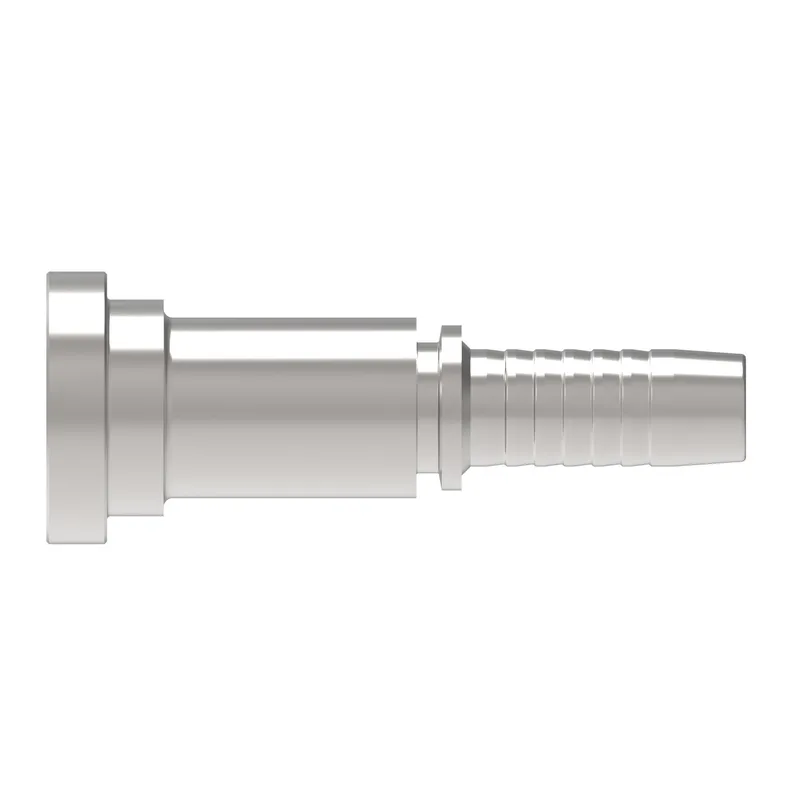

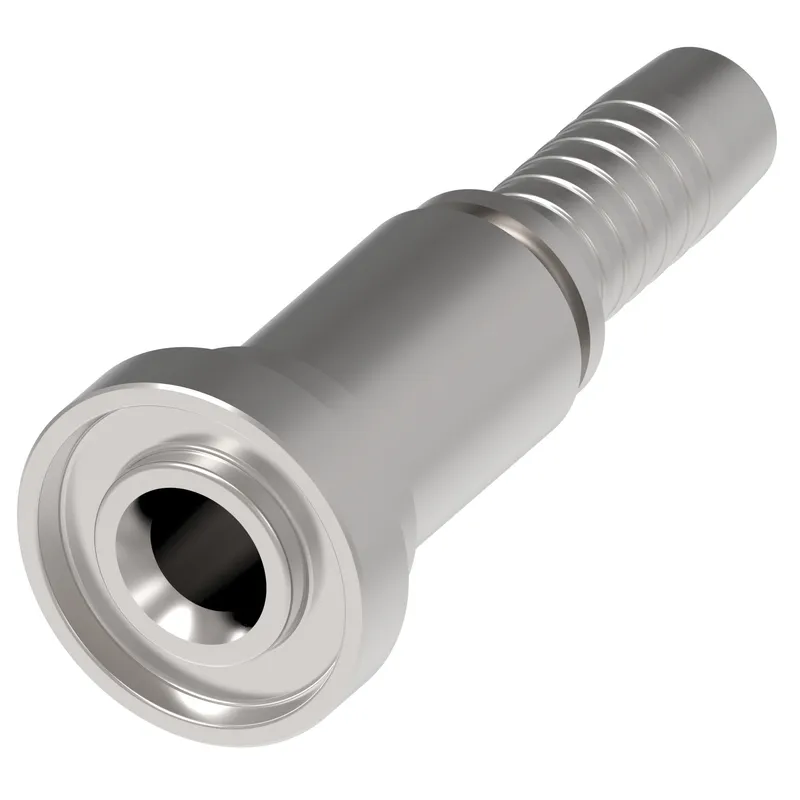

What is the Danfoss 87311-12-12SR?

Danfoss HOSE NIPPLE ASSY, 2P/12, C61/12, AN, STR, manufacturer part number 87311-12-12SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.405
A dimension MM86.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hoses EH080, EH081, EH084, H0084, H0554, H345, H6008, H6009, H9568, H9699
Construction StyleCrimp
End size 1-12
End size 2-12
End Type 1Split flange code 61
End Type 2Line/hose/tube
Hose cut off factor IN1.889
Hose cut off factor MM48.000
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.500
Product height mm38.100
Product length in3.406
Product length mm86.500
Product material304 Stainless steel
Product width in1.500
Product width mm38.1
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87311-12-12SR: frequently asked questions

When can 87311-12-12SR be shipped?

87311-12-12SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87311-12-12SR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87311-12-12SR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311-12-12SR, subject to availability and destination.
