Danfoss 87311-40-38FAZ

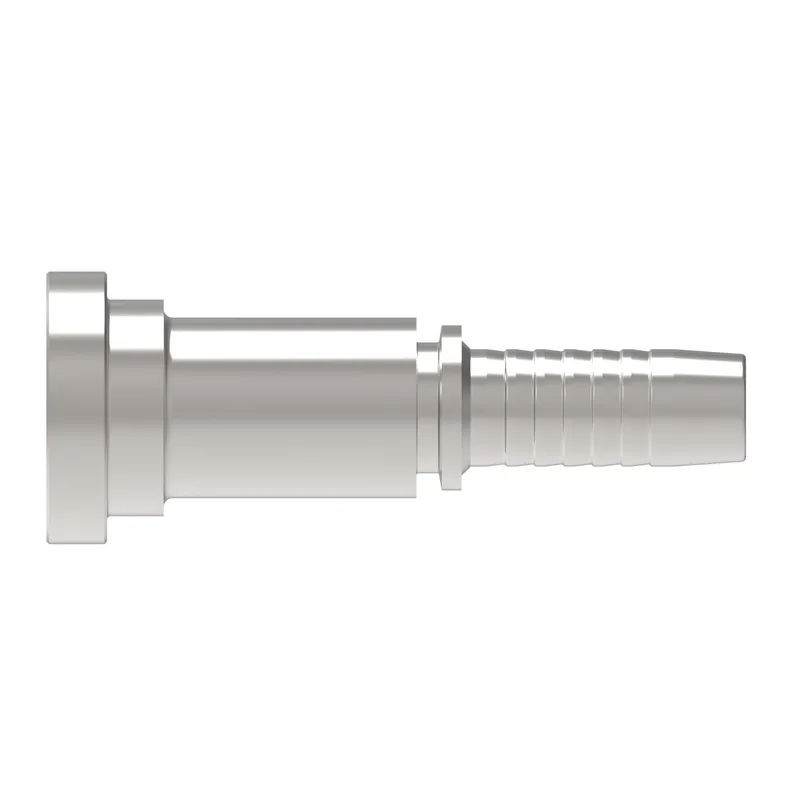

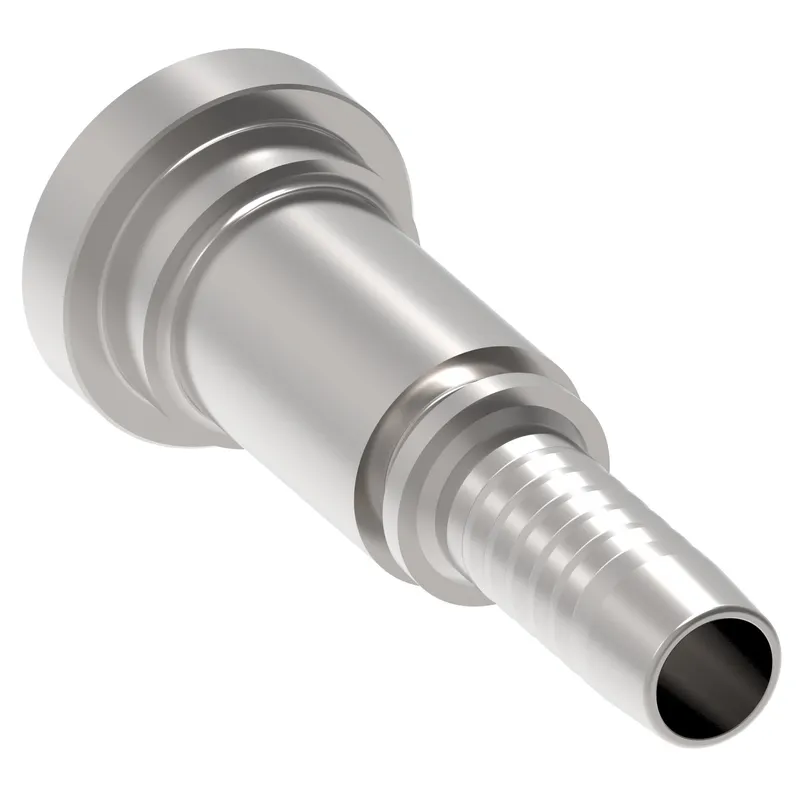

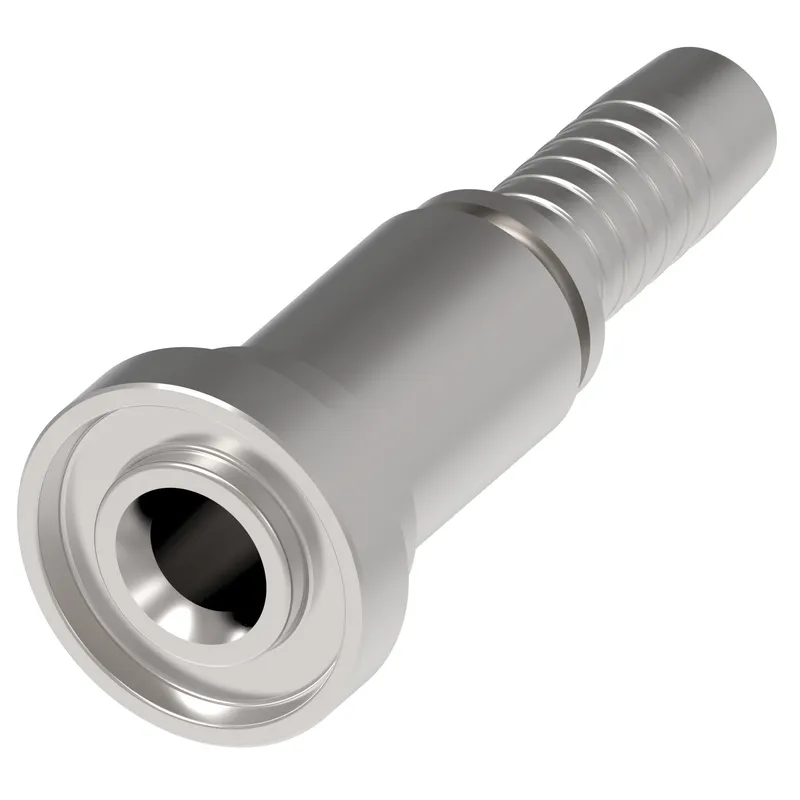

HOSE NIPPLE ASSY, 2P/38, C61/40, CS, STR

MPN
87311-40-38FAZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311-40-38FAZ?

Danfoss HOSE NIPPLE ASSY, 2P/38, C61/40, CS, STR, manufacturer part number 87311-40-38FAZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.826
A dimension MM148.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN2.380
Compatible hose ID MM63.500
Construction StyleCrimp
End size 1-40
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN2.992
Hose cut off factor MM76.000
Hose size-40
Inside diameter IN2.047
Inside diameter MM52.000
Product height in3.310
Product height mm84.074
Product length in5.826
Product length mm147.980
Product materialCarbon steel
Product width in3.310
Product width mm84.074
Thread sealantNo
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
