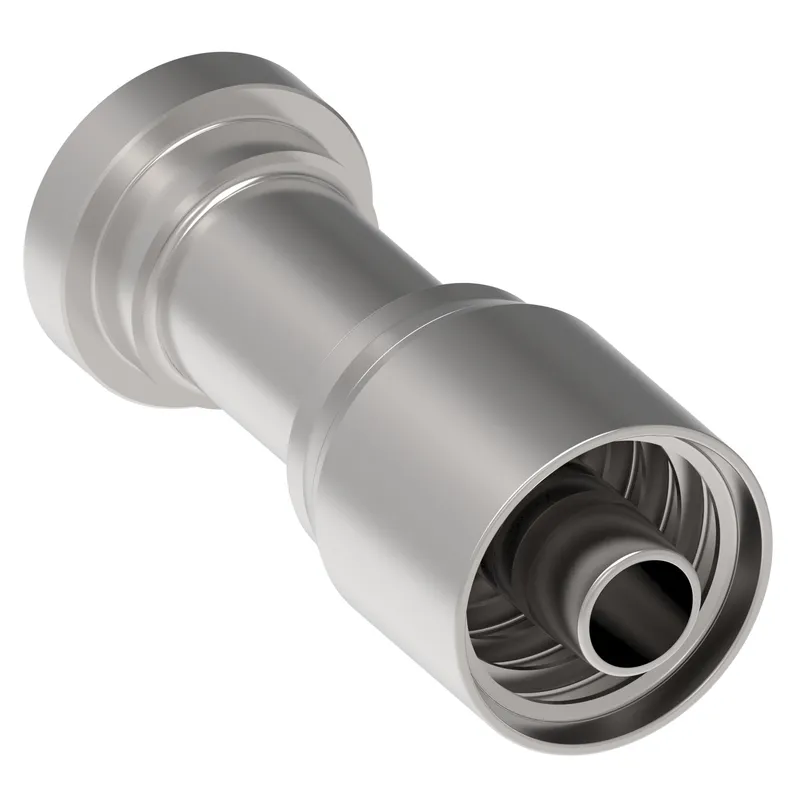

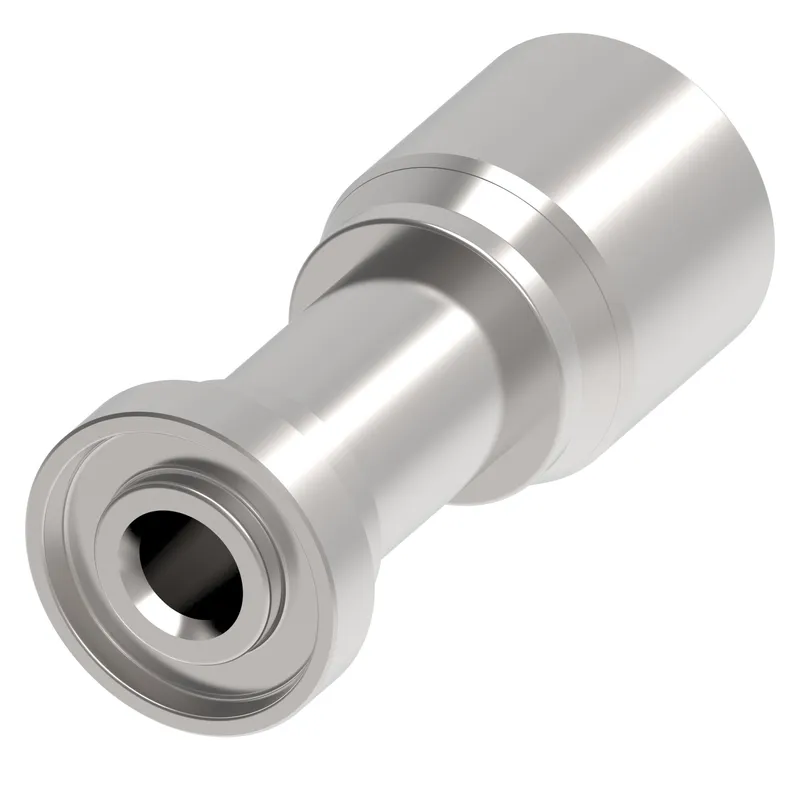

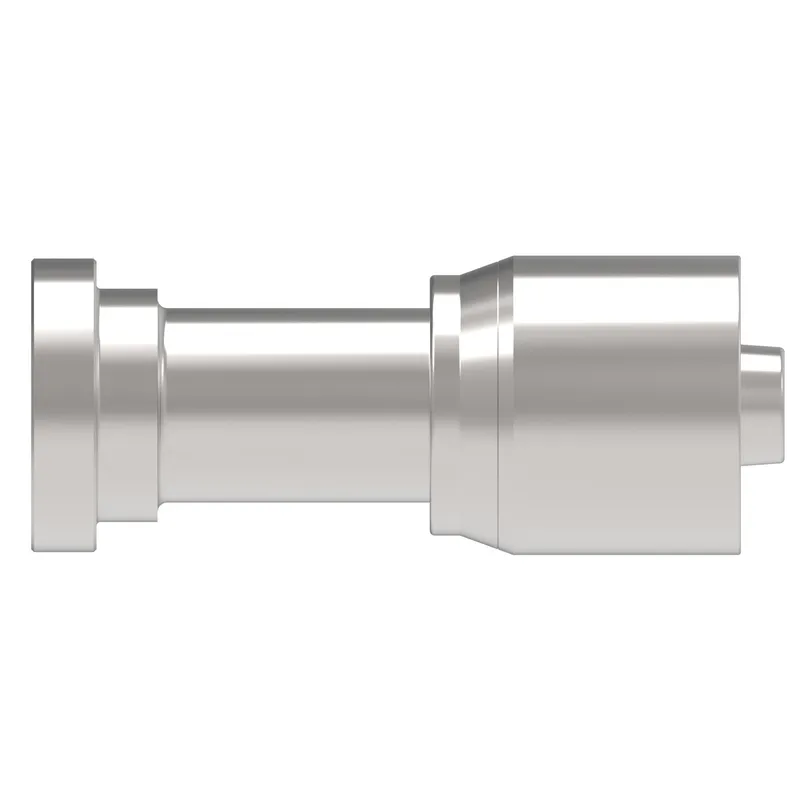

Danfoss 87311Y-12-12Z

HOSE NIPPLE ASSY, 1P/12, C61/12, CS, STR

MPN
87311Y-12-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311Y-12-12Z?

Danfoss HOSE NIPPLE ASSY, 1P/12, C61/12, CS, STR, manufacturer part number 87311Y-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.405
A dimension MM86.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hoses EH080, EH081, EH084, H0084, H0554, H345, H6008, H6009, H9568, H9699
Construction StyleCrimp
End size 1-12
End size 2-12
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN1.889
Hose cut off factor MM48.000
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.555
Product height mm39.500
Product length in3.406
Product length mm86.500
Product materialCarbon steel
Product width in1.555
Product width mm39.5
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
