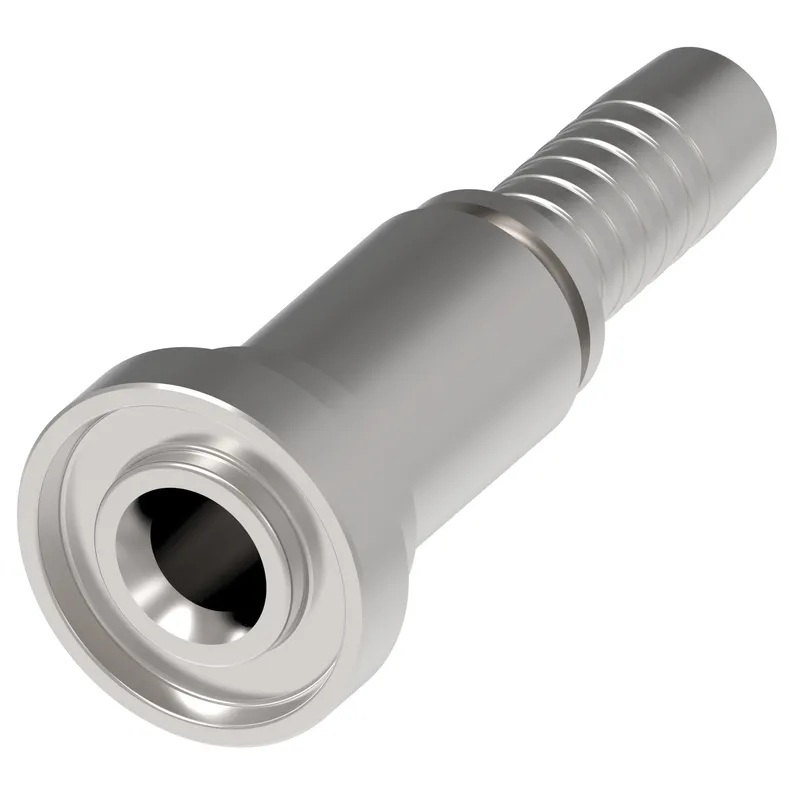

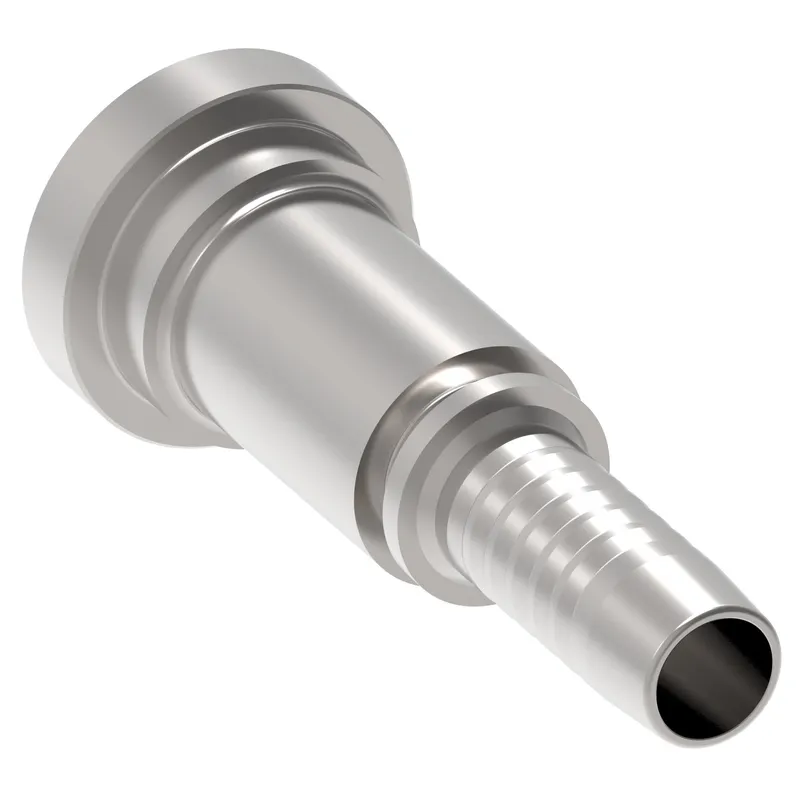

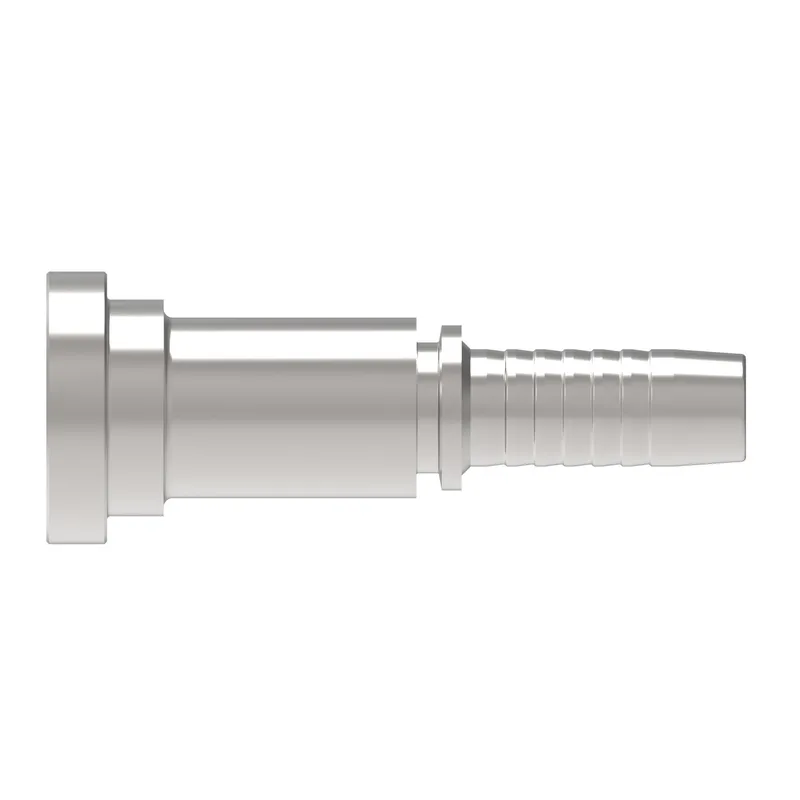

Danfoss 87311-48-48Z

HOSE NIPPLE ASSY, 2P/48, C61/48, CS, STR

MPN
87311-48-48Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311-48-48Z?

Danfoss HOSE NIPPLE ASSY, 2P/48, C61/48, CS, STR, manufacturer part number 87311-48-48Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN6.417
A dimension MM163.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN3.000
Compatible hose ID MM76.200
Compatible hoses EH080, EH081, EH084, H0084, H0554, H345, H6008, H6009, H9568, H9699
Construction StyleCrimp
End size 1-48
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN3.090
Hose cut off factor MM78.500
Hose size-48
Inside diameter IN2.519
Inside diameter MM67.000
Product height in4.000
Product height mm101.600
Product length in6.417
Product length mm162.999
Product materialCarbon steel
Product width in4.000
Product width mm101.6
Thread sealantNo
Working pressure max BAR207
Working pressure max PSI3002
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87311-48-48Z: frequently asked questions

When can 87311-48-48Z be shipped?

87311-48-48Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87311-48-48Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87311-48-48Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311-48-48Z, subject to availability and destination.
