Danfoss 87311Y-24-20Z

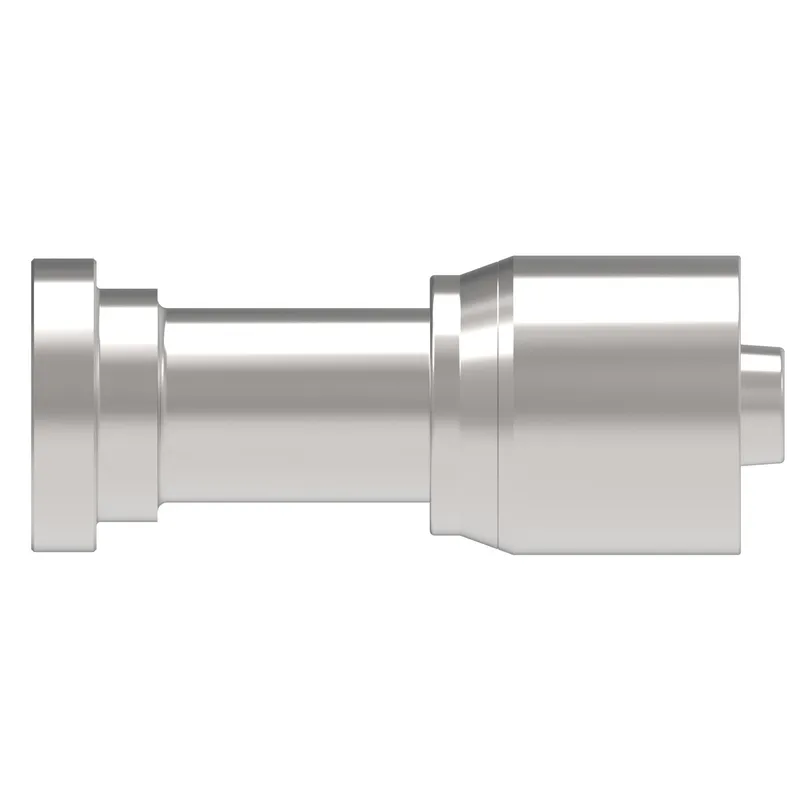

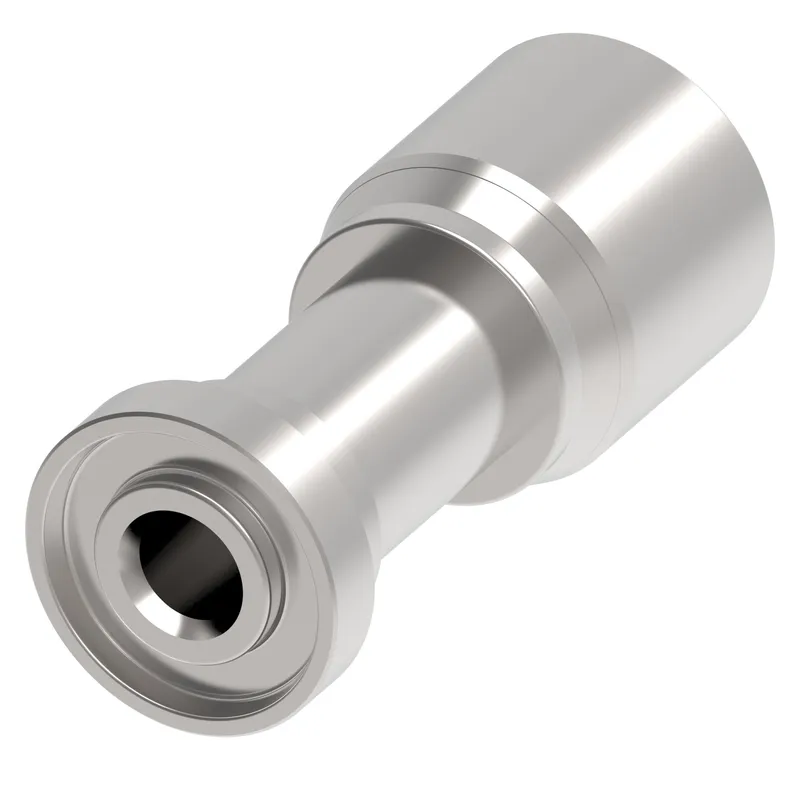

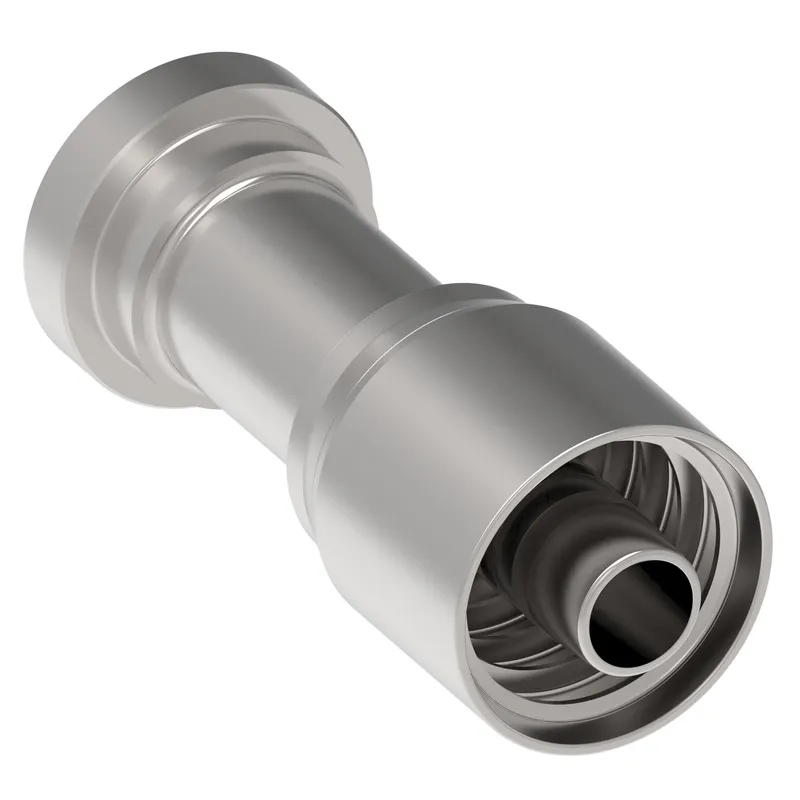

HOSE NIPPLE ASSY, 1P/20, C61/20, CS, STR

MPN
87311Y-24-20Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311Y-24-20Z?

Danfoss HOSE NIPPLE ASSY, 1P/20, C61/20, CS, STR, manufacturer part number 87311Y-24-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.803
A dimension MM122.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hoses EH080, EH081, EH084, H0084, H0554, H345, H6008, H6009, H9568, H9699
Construction StyleCrimp
End size 1-20
End size 2-20
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN2.677
Hose cut off factor MM68.000
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in2.374
Product height mm60.300
Product length in4.803
Product length mm122.001
Product materialCarbon steel
Product width in2.374
Product width mm60.3
Thread sealantNo
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
