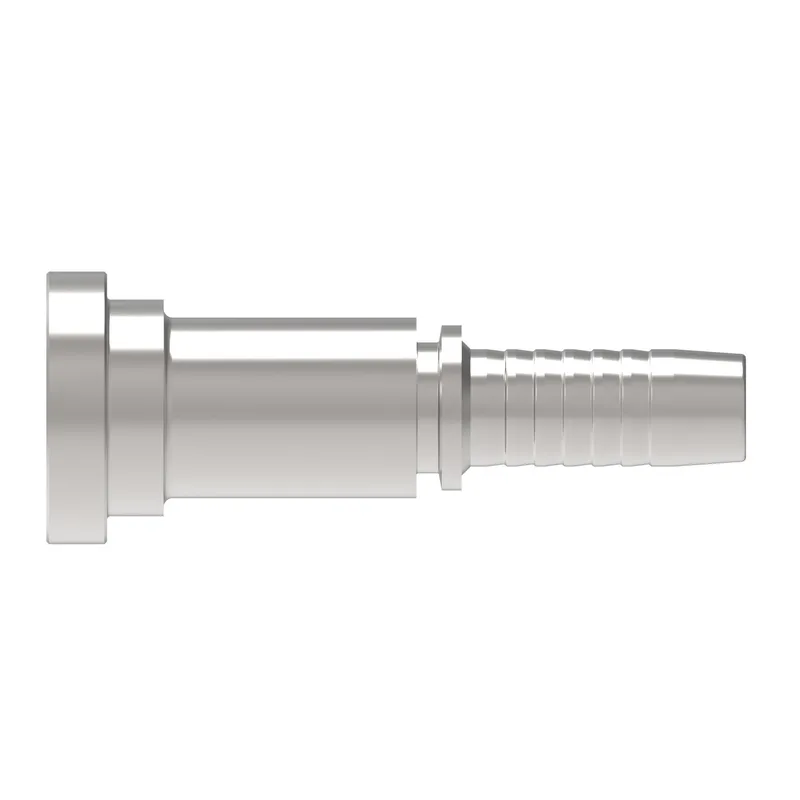

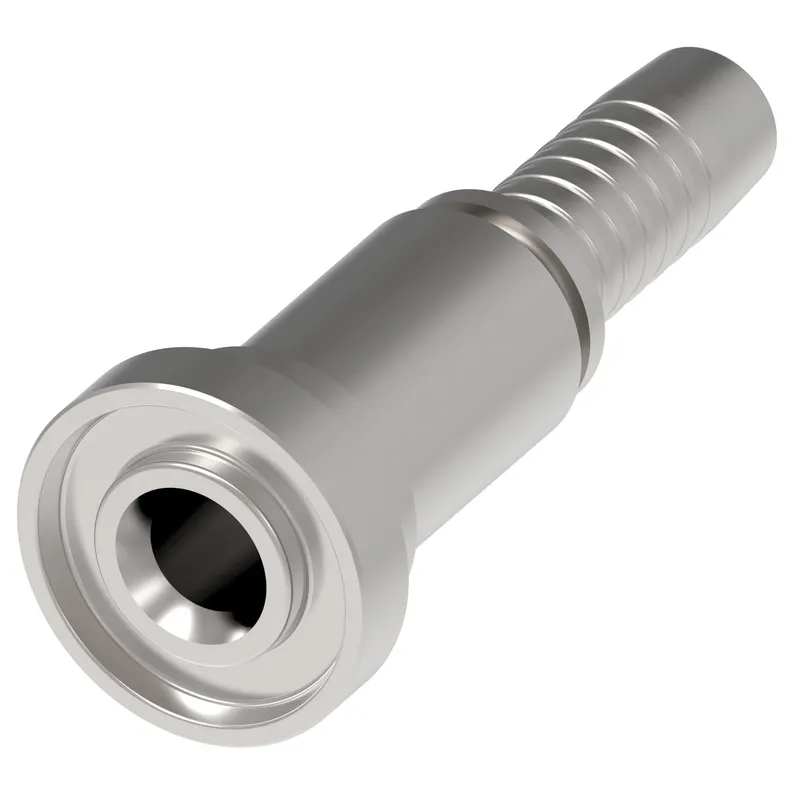

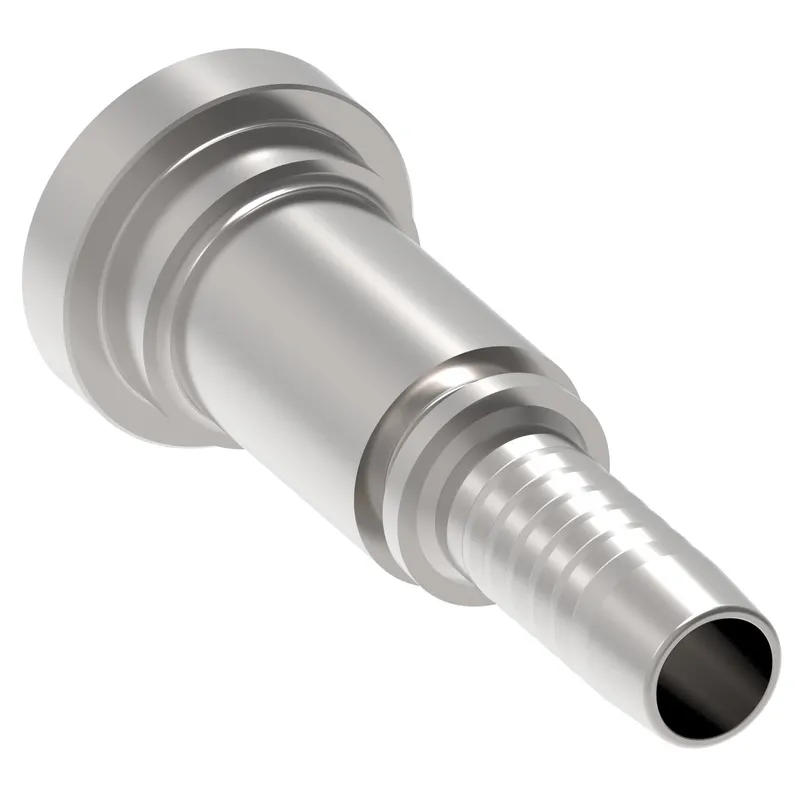

Danfoss 87311-40-40RZ

HOSE NIPPLE ASSY, 2P/40, C61/40, CS, STR

MPN
87311-40-40RZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311-40-40RZ?

Danfoss HOSE NIPPLE ASSY, 2P/40, C61/40, CS, STR, manufacturer part number 87311-40-40RZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN6.220
A dimension MM158.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN2.500
Compatible hose ID MM63.500
Compatible hosesH0554
Construction StyleCrimp
End size 1-40
End size 2-40
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN2.992
Hose cut off factor MM76.000
Hose size-40
Inside diameter IN2.125
Inside diameter MM54.000
Product height in3.311
Product height mm84.099
Product length in6.221
Product length mm158.001
Product materialCarbon steel
Product width in3.311
Product width mm84.099
Thread sealantNo
Working pressure max BAR207
Working pressure max PSI3002
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87311-40-40RZ: frequently asked questions

When can 87311-40-40RZ be shipped?

87311-40-40RZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87311-40-40RZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87311-40-40RZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311-40-40RZ, subject to availability and destination.
