Braided hose and fittings Parts

Danfoss

04Z-P54

Hose End (perm) 1S/1R Str M. BSPP

Danfoss

04Z-P06-BG

Hose End (perm) 1S/1R

Danfoss

04Z-P06

Hose End (perm) 1S/1R Str M SAE ORB

Danfoss

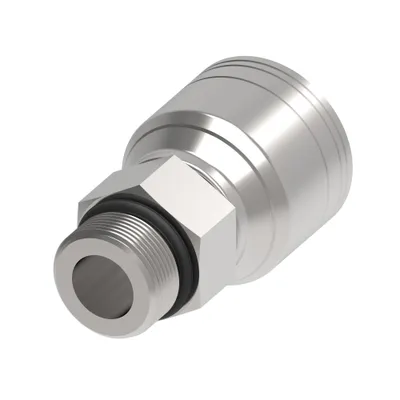

04Z-P05-BG

Hose End (perm) 1S/1R

Danfoss

04Z-P05

Hose End (perm) 1S/1R Str M SAE ORB

Danfoss

04Z-P04-BG

Hose End (perm) 1S/1R

Danfoss

04Z-P04

Hose End (perm) 1S/1R Str M SAE ORB

Danfoss

04Z-M04-BG

Ftng (perm), NPTF

Danfoss

04Z-M04

Ftng (perm), NPTF 90 DEG, MALE SWIVEL

Danfoss

04Z-L66-BG

Hose End (perm) 1S/1R

Danfoss

04Z-L66

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

04Z-L64-BG

Hose End (perm) 1S/1R

Danfoss

04Z-L64

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

04Z-J38-BG

Ftng (perm), ORS

Danfoss

04Z-J38

Ftng (perm), ORS 90 DEG, FEM SWIVEL

Danfoss

04Z-J36-BG

Ftng (perm), ORS

Danfoss

04Z-J36

Ftng (perm), ORS 45 DEG, FEM SWIVEL

Danfoss

04Z-J34-BG

Ftng (perm), ORS

Danfoss

04Z-J34

Ftng (perm), ORS 45 DEG, FEM SWIVEL

Danfoss

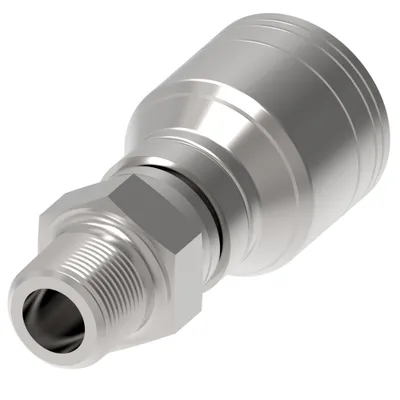

04Z-J04-BG

Hose End (perm) 1S/1R

Danfoss

04Z-J04

Hose End (perm) 1S/1R Str M. Pipe Swvl

Danfoss

04Z-E64-BG

Hose End (perm) 1S/1R

Danfoss

04Z-E64

Hose End (perm) 1S/1R Str Male ORS

Danfoss

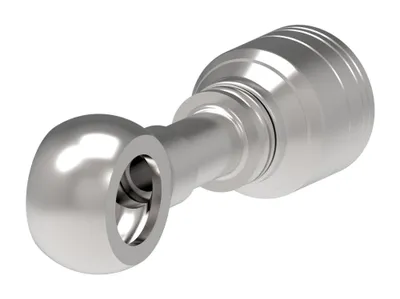

04Z-BR46

Fitting(Perm)R2 Banjo

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
04Z-P54	639789294432	0.750	19.100	0.820	20.828
04Z-P06-BG	810075335231	0.690	17.500	0.860	21.844
04Z-P06	639789296467	0.690	17.500	0.860	21.844
04Z-P05-BG	810075335224	0.630	16.000	0.920	23.368
04Z-P05	639789296450	0.630	16.000	0.920	23.368
04Z-P04-BG	—	0.560	14.200	0.920	23.368
04Z-P04	639789292650	0.560	14.200	0.920	23.368
04Z-M04-BG	810075335217	0.750	19.100	1.230	31.242
04Z-M04	639789321398	0.750	19.100	1.230	31.242
04Z-L66-BG	810075335200	0.810	20.600	1.380	35.052
04Z-L66	639789294425	0.810	20.600	1.380	35.052
04Z-L64-BG	810075335194	0.690	17.500	1.200	30.480
04Z-L64	639789292643	0.688	17.500	1.200	30.480
04Z-J38-BG	—	0.940	23.900	1.410	35.814
04Z-J38	639789322319	0.940	23.900	1.410	35.814
04Z-J36-BG	810075335187	0.810	20.600	1.290	32.766
04Z-J36	639789320452	0.810	20.600	1.290	32.766
04Z-J34-BG	810075335170	0.680	17.300	1.170	29.718
04Z-J34	639789320445	0.690	17.500	1.170	29.718
04Z-J04-BG	810075335163	0.750	19.100	1.620	41.148
04Z-J04	639789292636	0.750	19.100	1.620	41.148
04Z-E64-BG	810075335156	0.625	15.900	0.860	21.844
04Z-E64	639789292629	0.625	15.900	0.860	21.844
04Z-BR46	813688025070	—	—	1.790	45.466

Common to all listed parts

Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-4
Product material	Carbon steel
Thread sealant	No
