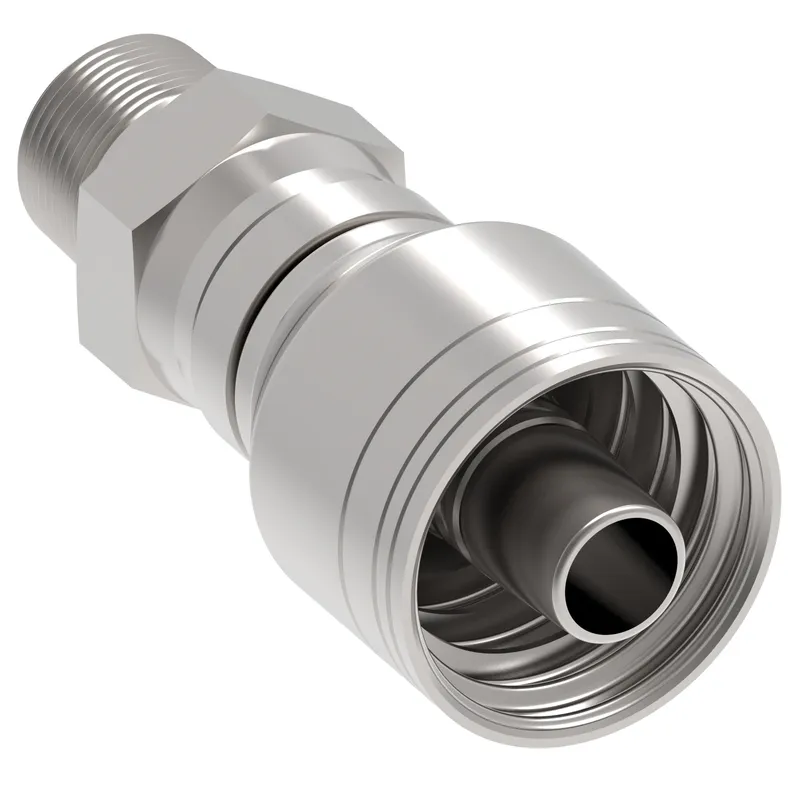

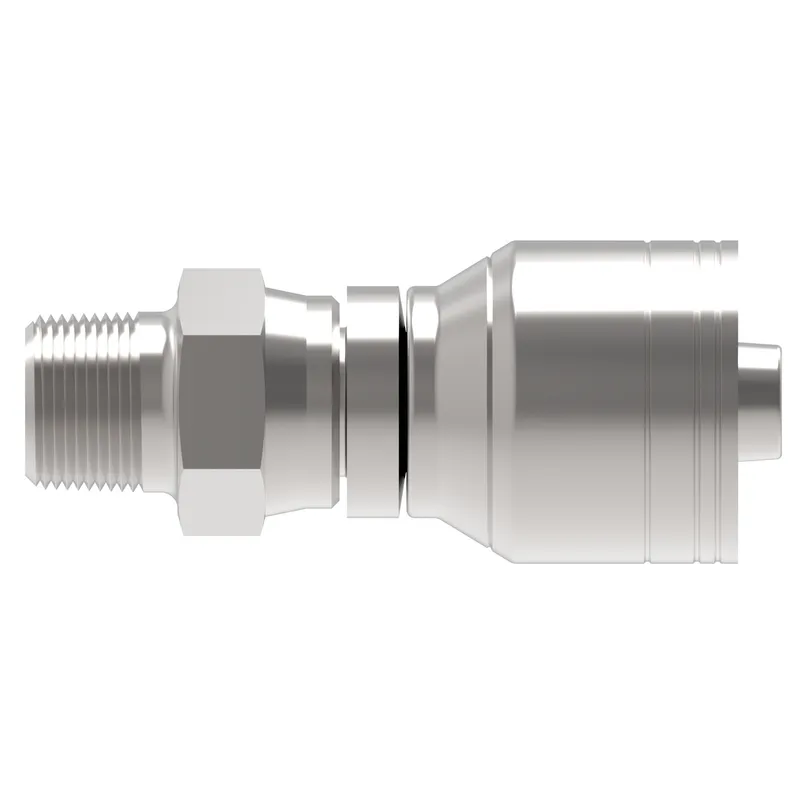

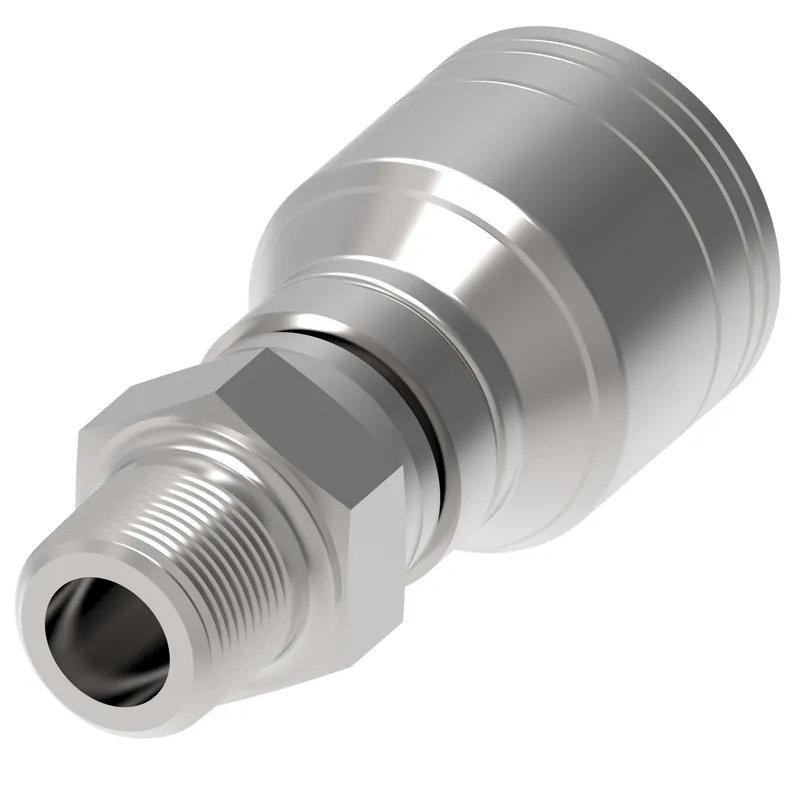

Hose End (perm) 1S/1R

Name: Danfoss 04Z-J04-BG – Hose End (perm) 1S/1R
Brand: Danfoss (Drives)
SKU: 04Z-J04-BG

MPN: 04Z-J04-BG · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 04Z-J04-BG be shipped?

04Z-J04-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 04Z-J04-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 04Z-J04-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 04Z-J04-BG, subject to availability and destination.

Danfoss Hose End (perm) 1S/1R, manufacturer part number 04Z-J04-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075335163
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Compliances	SAE J1176
Construction Style	Crimp
End size 1	-4
End type 1	Male pipe (NPT)
Finish plating	Dura-Kote
Hex size 1 IN	0.750
Hex size 1 MM	19.100
Hose cut off factor IN	1.620
Hose cut off factor MM	41.148
Hose size	-4
Inside diameter IN	0.1700
Inside diameter MM	4.3180
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350
