Braided hose and fittings Parts

Danfoss

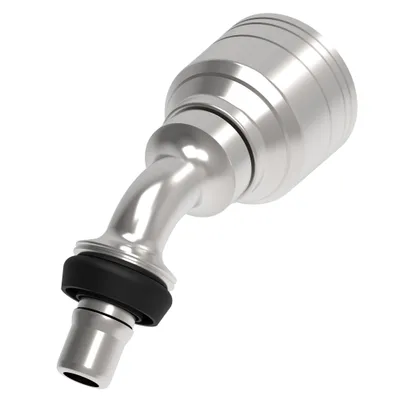

04Z-BC46

Hose End (perm) 1S/1R 45 D Male STC

Danfoss

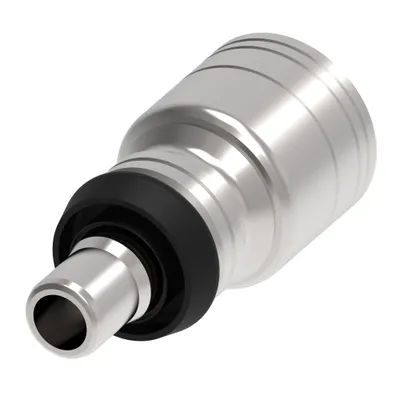

04Z-BC06

Hose End (perm) 1S/1R Str Male STC

Danfoss

04Z-B65-BG

Ftng (perm), SAE INV

Danfoss

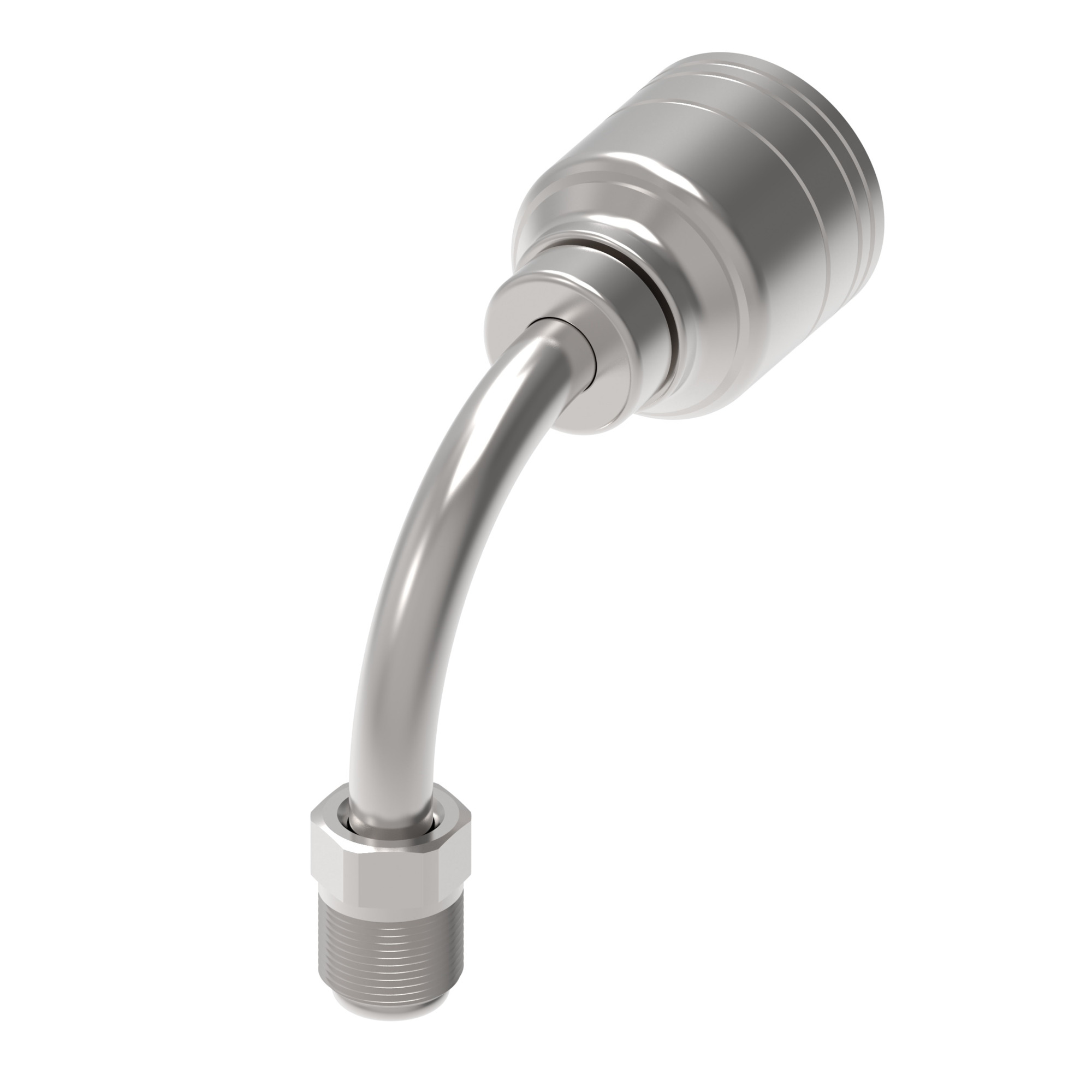

04Z-B65

Ftng (perm) INV FLARE, 90 DEG, STR MALE

Danfoss

04Z-B64-BG

Hose End (perm) 1S/1R

Danfoss

04Z-B64

Hose End (perm) 1S/1R 90 D M INVERTED

Danfoss

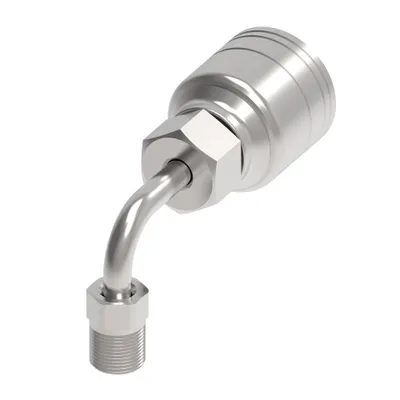

04Z-B63

Ftng (perm) INV FLARE, 90 DEG, STR MALE

Danfoss

04Z-B45-BG

Ftng (perm), SAE INV

Danfoss

04Z-B45

Ftng (perm) INV FLARE, 45 DEG, STR MALE

Danfoss

04Z-B44-BG

Hose End (perm) 1S/1R

Danfoss

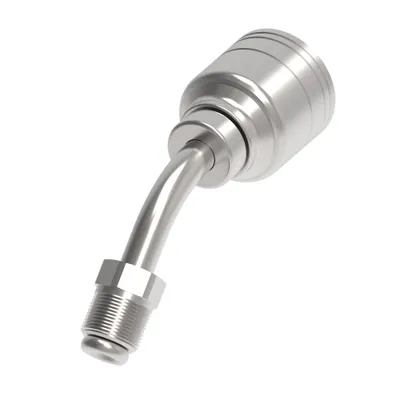

04Z-B44

Hose End (perm) 1S/1R 45 D M INVERTED

Danfoss

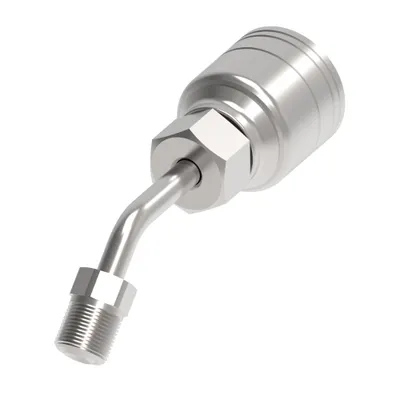

04Z-B43

Ftng (perm), SAE INV FLARE, 45 DEG, STR

Danfoss

04Z-B05-BG

Ftng (perm), SAE INV

Danfoss

04Z-B05

Ftng (perm), SAE INV FLARE, STR MALE

Danfoss

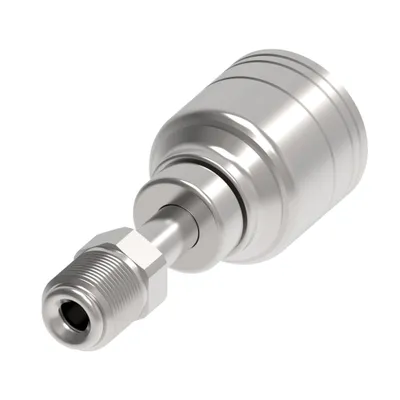

04Z-B04-BG

Hose End (perm) 1S/1R

Danfoss

04Z-B04

Hose End (perm) 1S/1R Str M. INVERTED

Danfoss

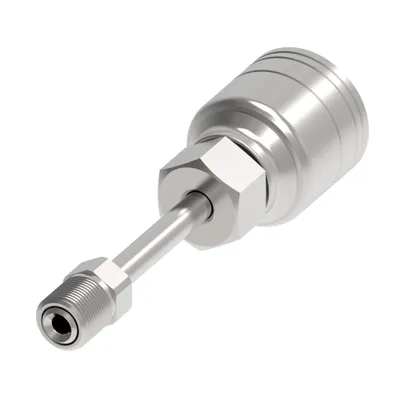

04Z-B03

Ftng (perm), SAE INV FLARE, STR MALE

Danfoss

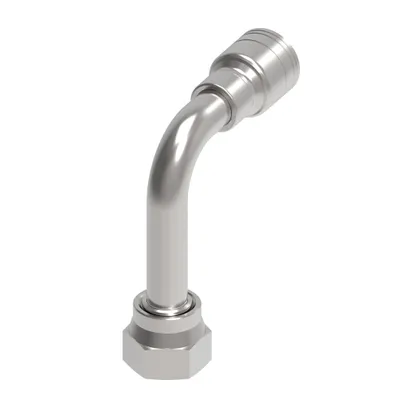

04Z-A68

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

04Z-A66-BG

Hose End (perm) 1S/1R

Danfoss

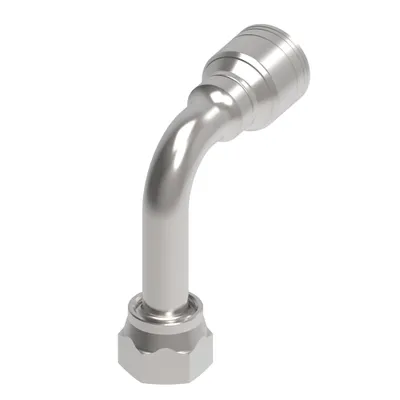

04Z-A66

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

04Z-A64-BG

Hose End (perm) 1S/1R

Danfoss

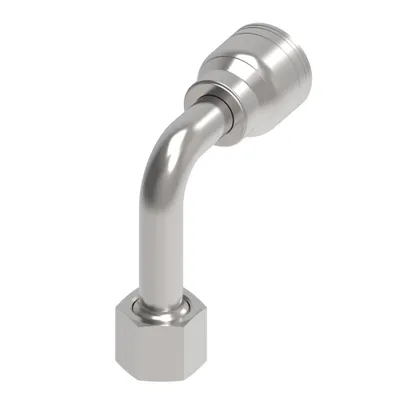

04Z-A64

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

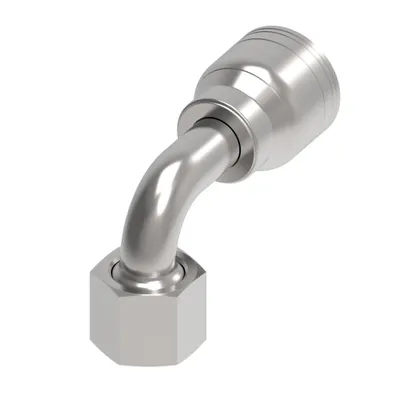

04Z-A26-BG

Hose End (perm) 1S/1R

Danfoss

04Z-A26

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Drop dimension IN	Drop dimension MM	Hose cut off factor IN	Hose cut off factor MM
04Z-BC46	639789293411	0.860	21.84	1.830	46.482
04Z-BC06	639789293404	—	—	1.140	28.956
04Z-B65-BG	810075335149	2.000	44.00	1.370	34.798
04Z-B65	639789320124	1.730	43.90	1.370	34.798
04Z-B64-BG	810075335132	2.000	43.00	1.370	34.798
04Z-B64	639789292414	1.690	42.90	1.370	34.798
04Z-B63	639789321022	1.060	26.90	1.320	33.528
04Z-B45-BG	810075335125	1.000	24.00	1.750	44.450
04Z-B45	639789322326	0.960	24.40	1.750	44.450
04Z-B44-BG	810075335118	1.000	24.00	1.750	44.450
04Z-B44	639789292612	0.960	24.40	1.750	44.450
04Z-B43	639789321015	0.690	17.50	1.960	49.784
04Z-B05-BG	810075335101	—	—	1.460	37.084
04Z-B05	639789320117	—	—	1.460	37.084
04Z-B04-BG	—	—	—	1.460	37.084
04Z-B04	639789292407	—	—	1.460	37.084
04Z-B03	639789321008	—	—	2.200	55.880
04Z-A68	639789294418	2.550	64.80	1.670	42.418
04Z-A66-BG	810075335095	2.000	54.00	1.300	33.020
04Z-A66	639789294401	2.130	54.10	1.300	33.020
04Z-A64-BG	810075335088	2.000	46.00	1.170	29.718
04Z-A64	639789292391	1.810	46.00	1.170	29.718
04Z-A26-BG	810075335071	1.000	23.00	1.300	33.020
04Z-A26	639789294395	0.900	22.90	1.300	33.020

Common to all listed parts

Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-4
Product material	Carbon steel
Thread sealant	No
