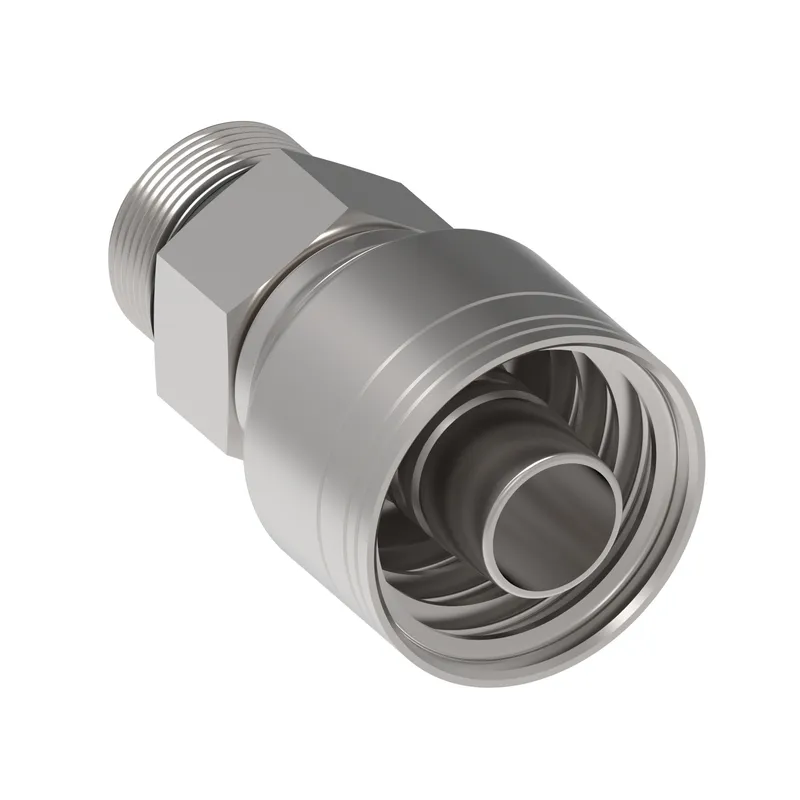

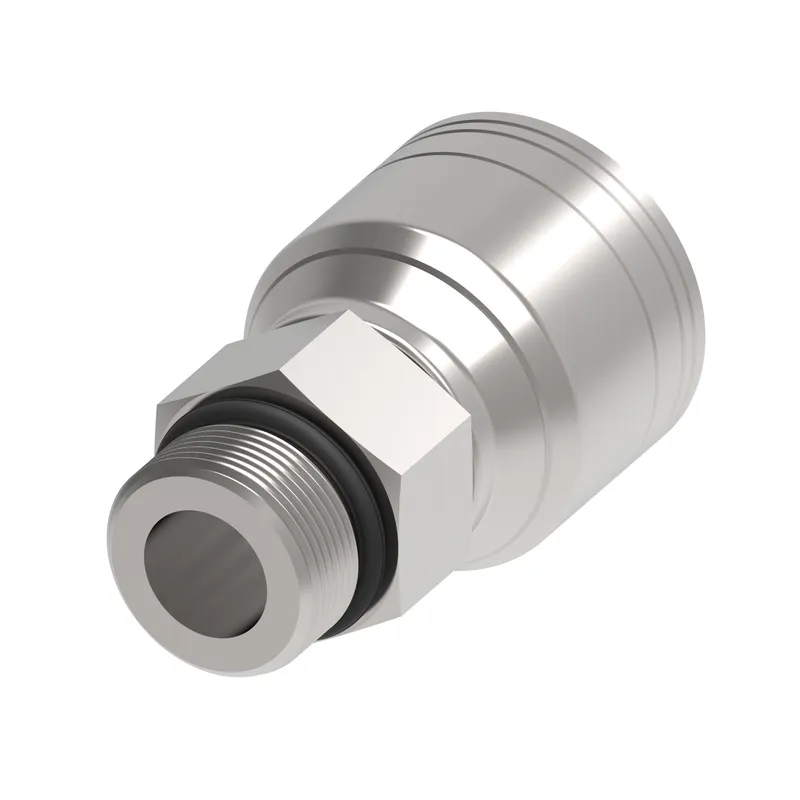

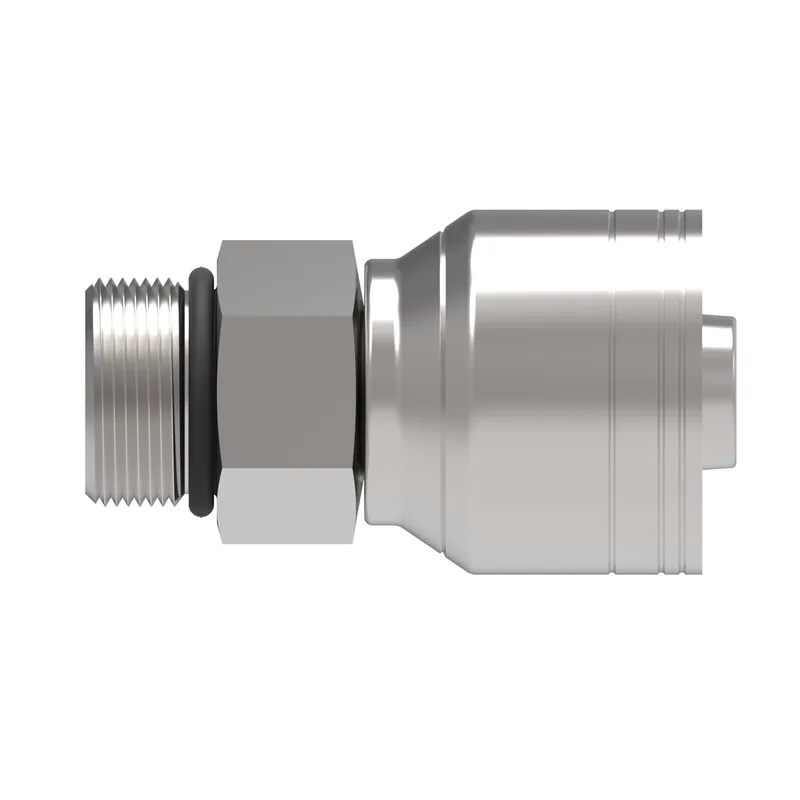

Danfoss 04Z-P04

Hose End (perm) 1S/1R Str M SAE ORB

MPN: 04Z-P04
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 04Z-P04?

Danfoss Hose End (perm) 1S/1R Str M SAE ORB, manufacturer part number 04Z-P04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789292650
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Compliances	SAE J1176
Construction Style	Crimp
End size 1	-4
Finish plating	Dura-Kote
Hex size 1 IN	0.560
Hex size 1 MM	14.200
Hose cut off factor IN	0.920
Hose cut off factor MM	23.368
Hose size	-4
Inside diameter IN	0.1700
Inside diameter MM	4.3180
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350

04Z-P04: frequently asked questions

When can 04Z-P04 be shipped?

04Z-P04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 04Z-P04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 04Z-P04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 04Z-P04, subject to availability and destination.
