Braided hose and fittings Parts

Danfoss

06Z-056-BG

Ftng (perm), NPSM

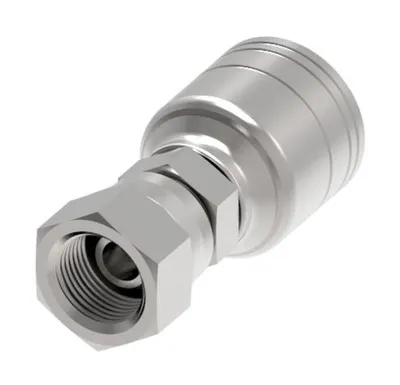

Danfoss

06Z-056

Ftng (perm), NPSM STR FEM SWIVEL

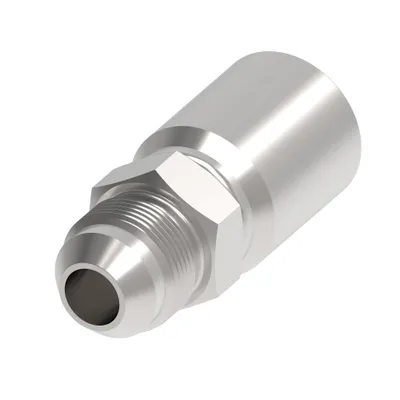

Danfoss

06904E-504

Hose End (perm) R5 Str M. SAE 37

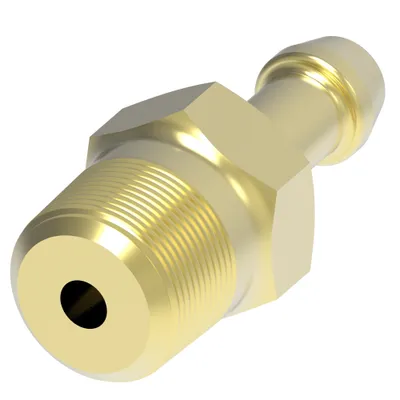

Danfoss

05704B-102-BG

HOSE INSERT, 7B/04, NPTF-M/02, B, STR

Danfoss

04ZR-606

Hose End (perm) Str F SAE37 Swvl Stainle

Danfoss

04ZR-604

Hose End (perm) Str F SAE37 Swvl Stainle

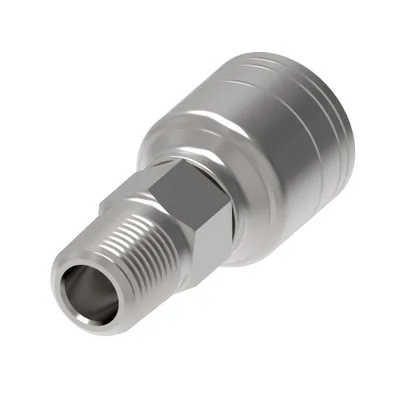

Danfoss

04ZR-104

Hose End (perm) str-04 M Pipe stainless

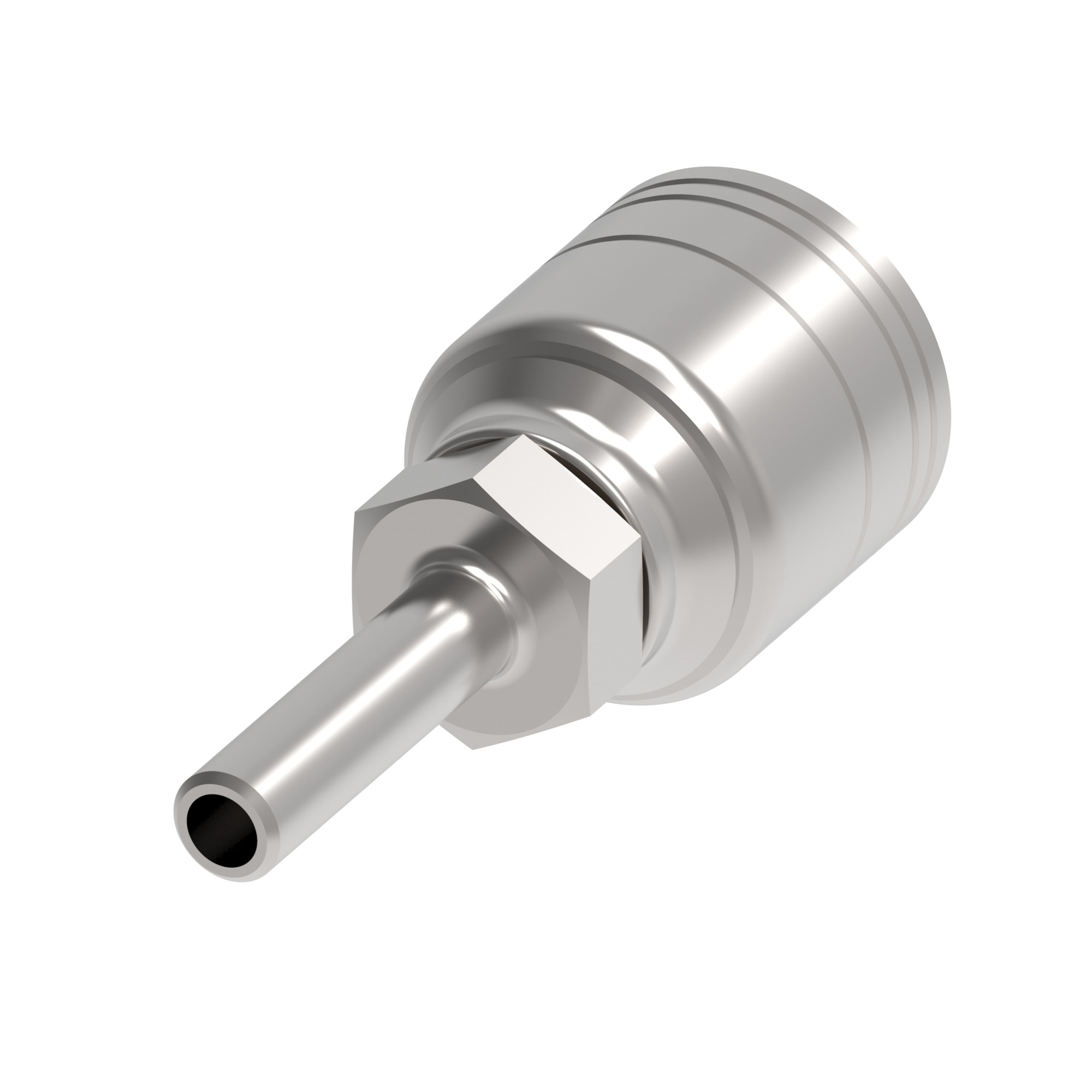

Danfoss

04Z-T04-BG

Ftng (perm), STANDPIPE

Danfoss

04Z-T04

Ftng (perm), STANDPIPE

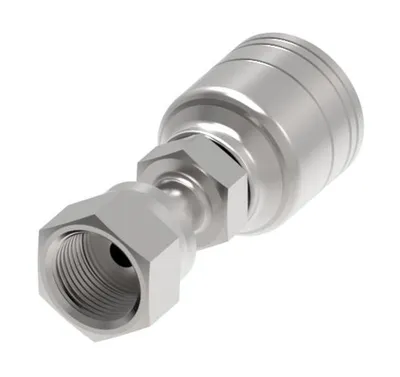

Danfoss

04Z-S68-BG

Ftng (perm), ORS

Danfoss

04Z-S68

Ftng (perm), ORS STR FEM SWIVEL

Danfoss

04Z-S66-BG

Ftng (perm), ORS R2

Danfoss

04Z-S66

Ftng (perm) ORS R2 Str F. ORS Swvl

Danfoss

04Z-S64-BG

Ftng (perm) 1S/1R

Danfoss

WH006-12MT50

HOSE-WIN, WH006, -12, 50M, RL, EN854/2T

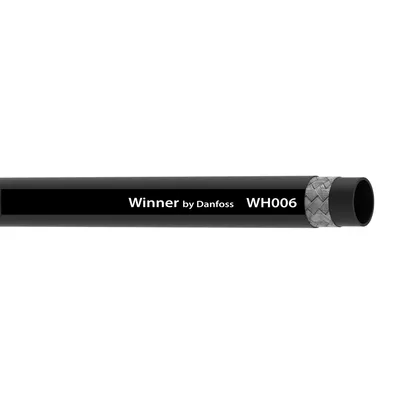

Danfoss

WH006-08MT50

HOSE-WIN, WH006, -8, 50M, RL, EN854/2T

Danfoss

WH006-06MT50

HOSE-WIN, WH006, -6, 50M, RL, EN854/2T

Danfoss

WH004-12-100

HOSE-WIN, WH004, -12, 100FT, RL, R4

Danfoss

04Z-S64

Ftng (perm) 1S/1R Female ORS Swivel

Danfoss

04Z-R66-BG

Ftng (perm), SAE ORB

Danfoss

04Z-R66

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

Danfoss

04Z-R04-BG

Ftng (perm), SAE ORB

Danfoss

04Z-R04

Ftng (perm), SAE ORB STR MALE SWIVEL

Danfoss

04Z-P54-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
06Z-056-BG	810075335309	0.880	22.400	1.200	30.480
06Z-056	639789320476	0.880	22.400	1.200	30.480
06904E-504	725975057148	0.500	12.700	0.920	23.368
05704B-102-BG	—	0.438	11.100	0.685	17.399
04ZR-606	810075333695	0.690	17.500	1.110	28.194
04ZR-604	813688025094	0.560	14.200	1.070	27.178
04ZR-104	813688025087	0.560	14.200	1.140	28.956
04Z-T04-BG	—	—	—	1.400	35.560
04Z-T04	639789321046	—	—	1.400	35.560
04Z-S68-BG	810075335293	0.800	20.300	1.280	32.512
04Z-S68	639789320469	0.800	20.300	1.280	32.512
04Z-S66-BG	810075335286	0.630	16.000	1.120	28.448
04Z-S66	639789294449	0.560	14.200	1.120	28.448
04Z-S64-BG	810075335279	0.690	17.500	1.030	26.162
WH006-12MT50	—	—	—	—	—
WH006-08MT50	—	—	—	—	—
WH006-06MT50	—	—	—	—	—
WH004-12-100	810903038976	—	—	—	—
04Z-S64	639789292667	0.688	17.000	1.030	26.162
04Z-R66-BG	810075335262	0.880	22.400	1.260	32.004
04Z-R66	639789321039	0.880	22.400	1.260	32.004
04Z-R04-BG	810075335255	0.750	19.100	1.590	40.386
04Z-R04	639789321886	0.750	19.100	1.590	40.386
04Z-P54-BG	810075335248	0.750	19.100	0.820	20.828
