Braided hose and fittings Parts

Danfoss

06Z-12C

Hose End (perm) 1S/1R Str F Metric Lgt

Danfoss

06Z-12A-BG

Hose End (perm) 1S/1R

Danfoss

06Z-12A

Hose End (perm) 1S/1R Str M Metric Lgt

Danfoss

06Z-10F-BG

Hose End (perm) DKOS

Danfoss

06Z-10F

Hose End (perm) Str M Metric Hvy M18x1.5

Danfoss

06Z-10D-BG

Ftng (perm), DKOL

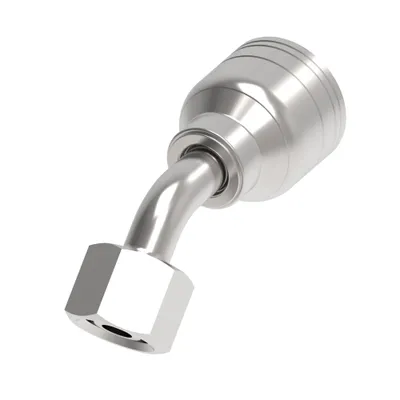

Danfoss

06Z-10D

Ftng (perm), DKOL 45D M16x1.5 F SWVL

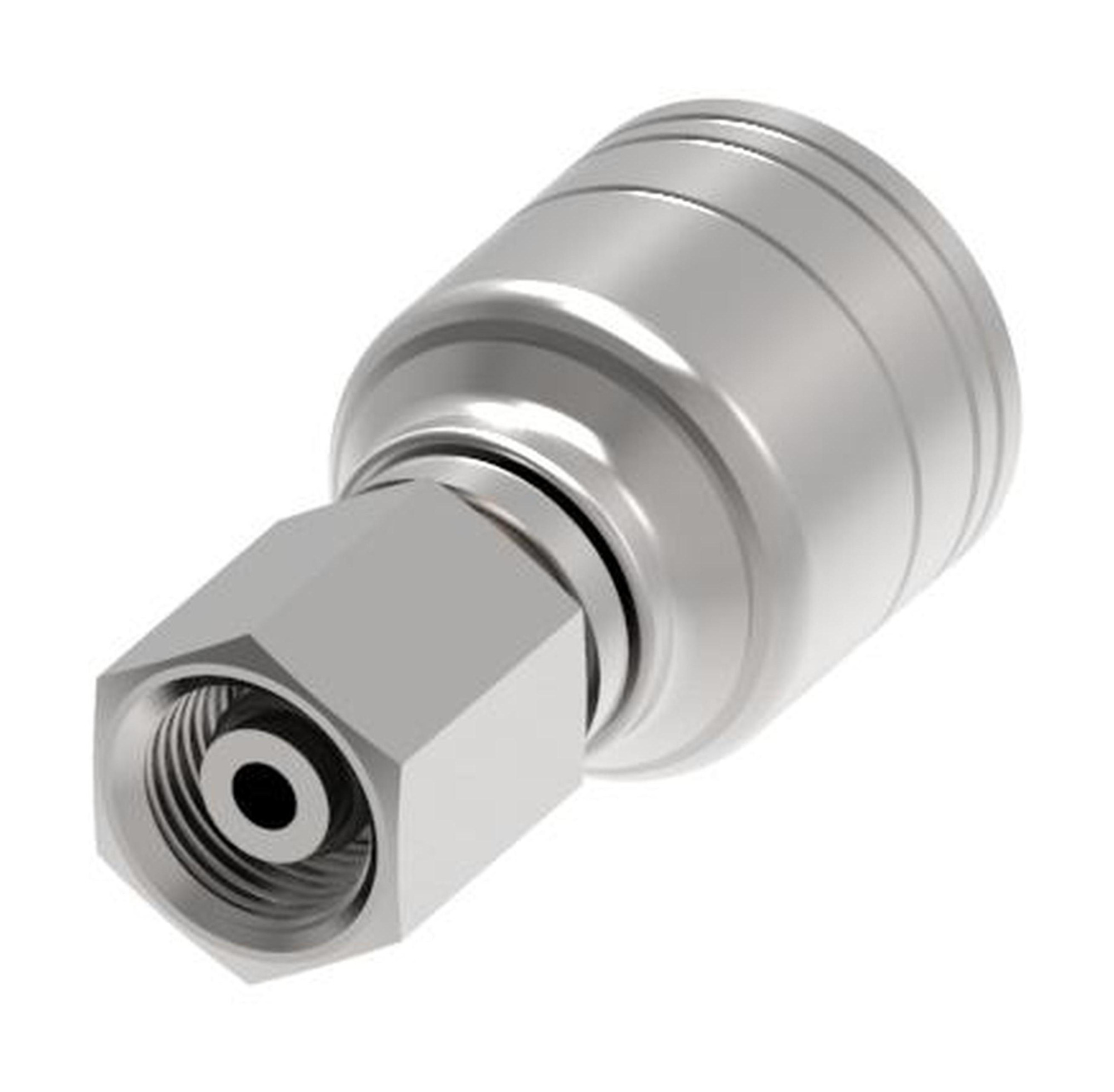

Danfoss

06Z-10C-BG

Hose End (perm) 1S/1R

Danfoss

06Z-10C

Hose End (perm) 1S/1R Str F Metric Ligh

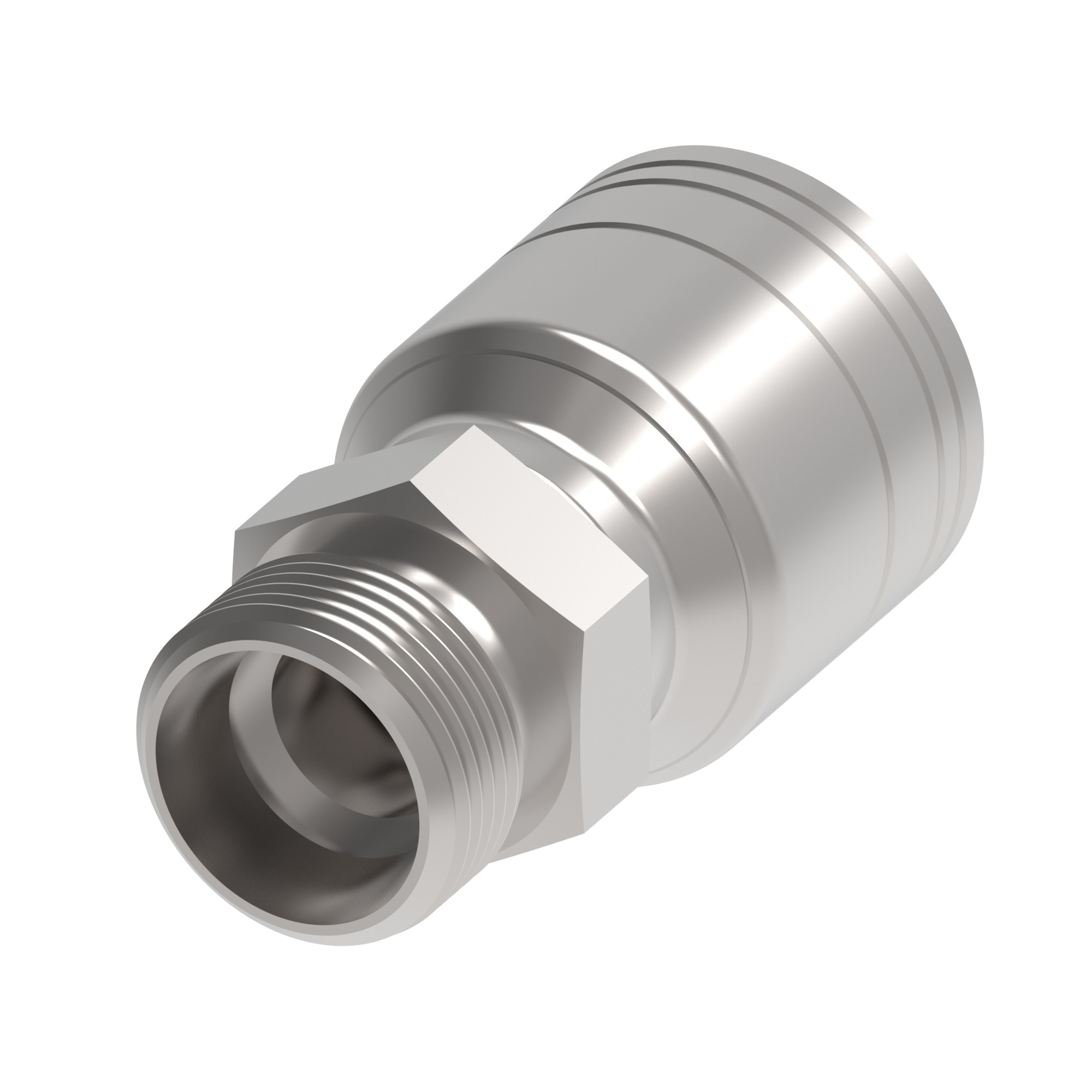

Danfoss

06Z-10A-BG

Hose End (perm) 1S/1R

Danfoss

06Z-10A

Hose End (perm) 1S/1R Str M Metric Lgt

Danfoss

06Z-108-BG

Hose End (perm) 1S/1R

Danfoss

06Z-108

Hose End (perm) 1S/1R Str -08 M Pipe

Danfoss

06Z-106-BG

Hose End (perm) 1S/1R

Danfoss

06Z-106

Hose End (perm) 1S/1R Str -06 M Pipe

Danfoss

06Z-104-BG

Hose End (perm) 1S/1R

Danfoss

06Z-104

Hose End (perm) 1S/1R Str -04 M Pipe

Danfoss

06Z-08S

Hose End (perm) 1S/1R Str M. Ready-Lok

Danfoss

06Z-08PA

Ftng (perm), BSPP FEM SWIVEL, FLAT FACE

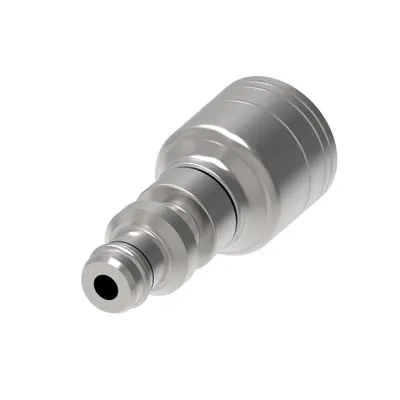

Danfoss

06Z-06S-BG

Hose End (perm) 1S/1R

Danfoss

06Z-06S

Hose End (perm) 1S/1R Str M. Ready-Lok

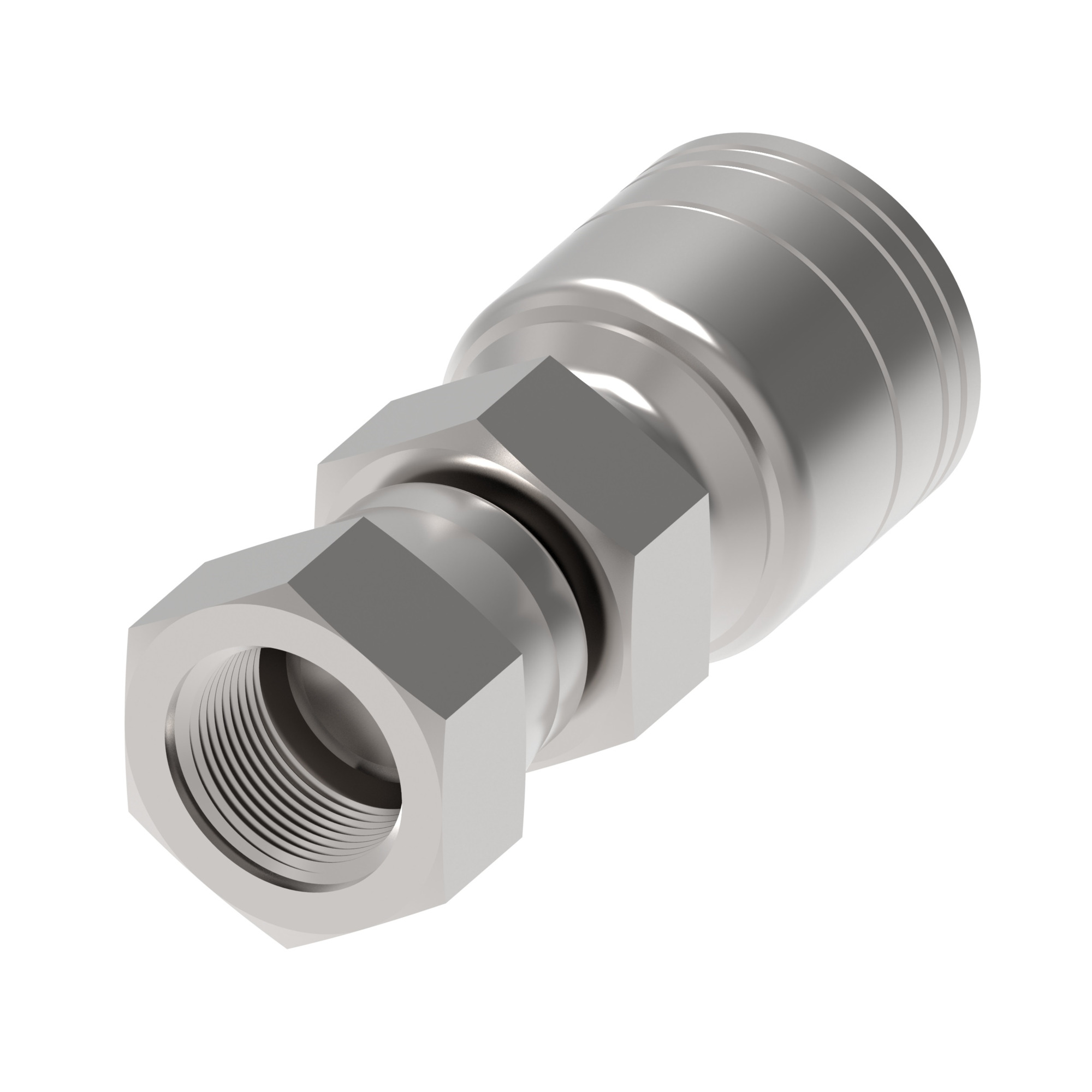

Danfoss

06Z-06PA

Ftng (perm), BSPP FEM SWIVEL, FLAT FACE

Danfoss

06Z-06L-BG

Hose End (perm) 1S/1R

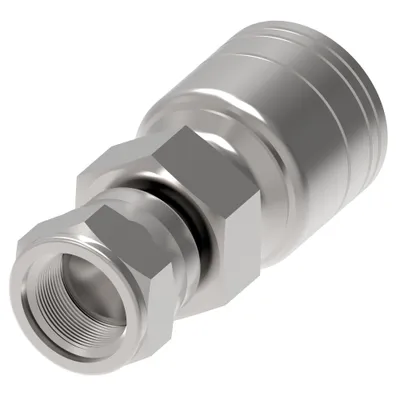

Danfoss

06Z-06L

Hose End (perm) 1S/1R Str F. JIS SWVL

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
06Z-12C	639789294517	0.870	22.100	1.020	25.908
06Z-12A-BG	810075335378	0.750	19.100	0.930	23.622
06Z-12A	639789294500	0.750	19.100	0.930	23.622
06Z-10F-BG	—	0.750	19.100	0.950	24.130
06Z-10F	639789320926	0.750	19.100	0.950	24.130
06Z-10D-BG	—	0.750	19.100	1.630	41.402
06Z-10D	639789320131	0.750	19.100	1.630	41.402
06Z-10C-BG	810075335361	0.750	19.100	1.240	31.496
06Z-10C	639789294494	0.750	19.100	1.240	31.496
06Z-10A-BG	810075335354	0.670	17.000	1.050	26.670
06Z-10A	639789294487	0.670	17.000	1.050	26.670
06Z-108-BG	810075335347	0.880	22.400	1.280	32.512
06Z-108	639789292698	0.880	22.400	1.280	32.512
06Z-106-BG	810075335330	0.690	17.500	1.270	32.258
06Z-106	639789292681	0.690	17.500	1.270	32.258
06Z-104-BG	810075335323	0.690	17.500	1.180	29.972
06Z-104	639789292674	0.690	17.500	1.180	29.972
06Z-08S	639789294470	—	—	1.300	33.020
06Z-08PA	639789320919	1.060	26.900	1.480	37.592
06Z-06S-BG	—	—	—	1.300	33.020
06Z-06S	639789294463	—	—	1.300	33.020
06Z-06PA	639789320773	0.880	22.400	1.420	36.068
06Z-06L-BG	810075335316	0.870	22.100	1.330	33.782
06Z-06L	639789294456	0.870	22.100	1.330	33.782

Common to all listed parts

Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
