Danfoss 04Z-L66

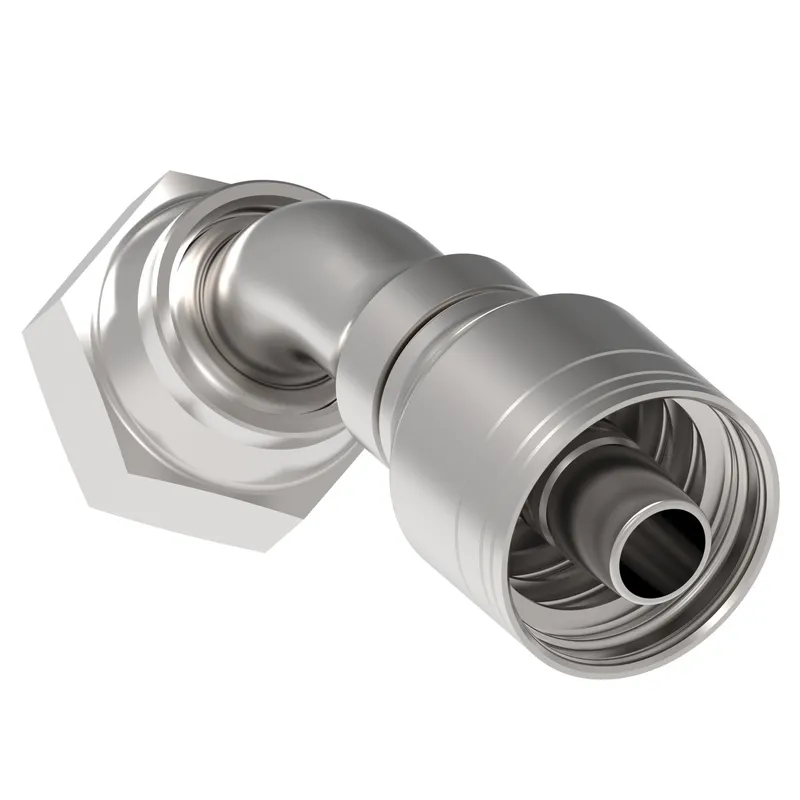

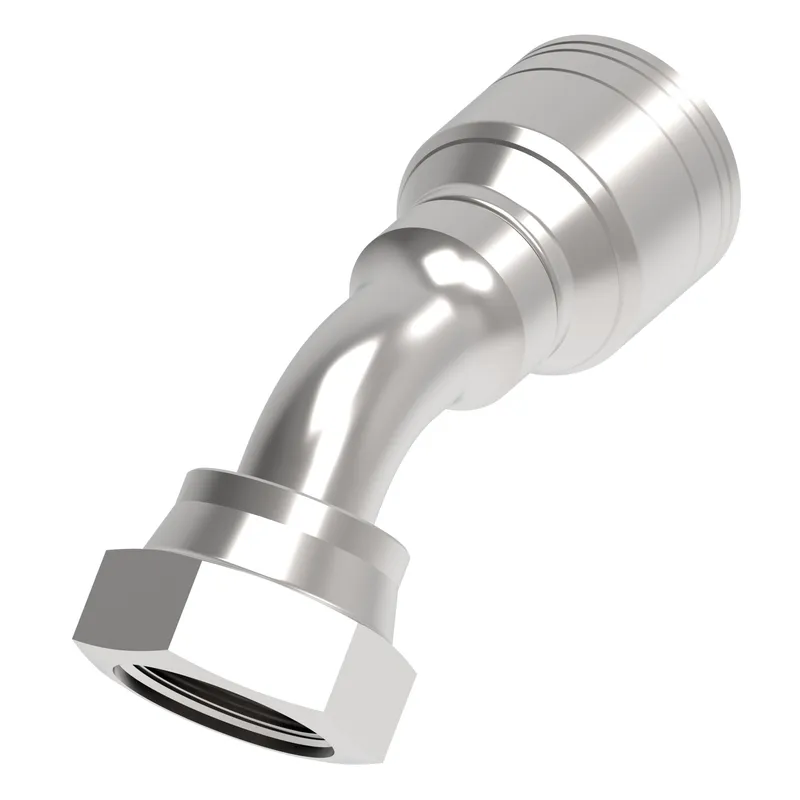

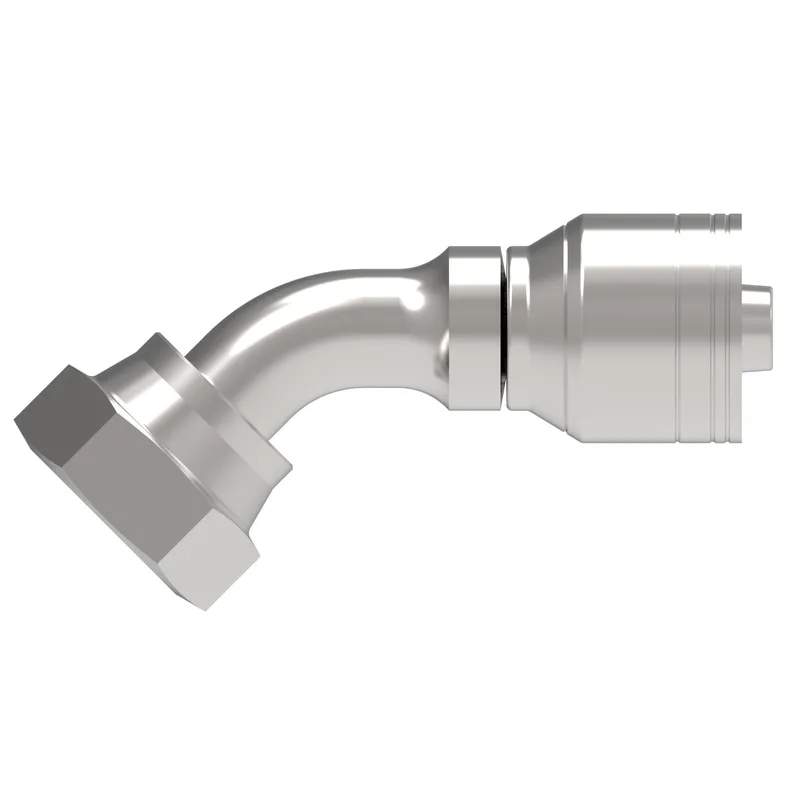

Hose End (perm) 1S/1R 45 D F. ORS SWVL

MPN: 04Z-L66
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 04Z-L66?

Danfoss Hose End (perm) 1S/1R 45 D F. ORS SWVL, manufacturer part number 04Z-L66. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789294425
Angle shape	45 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible tube OD IN	0.38
Compatible tube OD MM	9.525
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	0.430
Drop dimension MM	10.90
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.810
Hex size 1 MM	20.600
Hose cut off factor IN	1.380
Hose cut off factor MM	35.052
Hose size	-4
Inside diameter IN	0.1700
Inside diameter MM	4.3180
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.375
Tube OD 1 MM	9.525
