Braided hose and fittings Parts

Danfoss

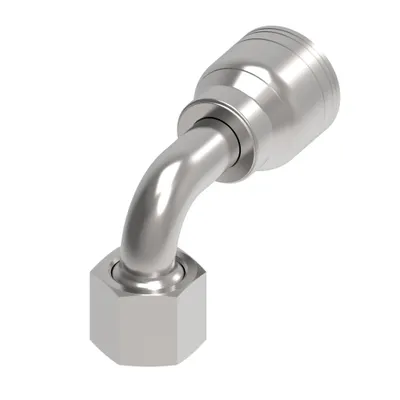

04Z-A24-BG

Ftng (perm), ORS R2

Danfoss

04Z-A24

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

04Z-755-BG

Ftng (perm), Ermeto 7000

Danfoss

04Z-755

Ftng (perm), Ermeto 7000 STR MALE RIGID

Danfoss

04Z-754-BG

Ftng (perm), Ermeto 7000

Danfoss

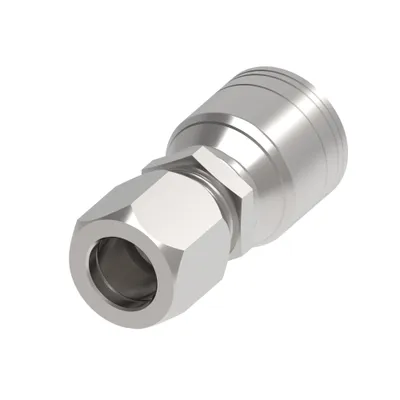

04Z-754

Ftng (perm), Ermeto 7000 STR MALE RIGID

Danfoss

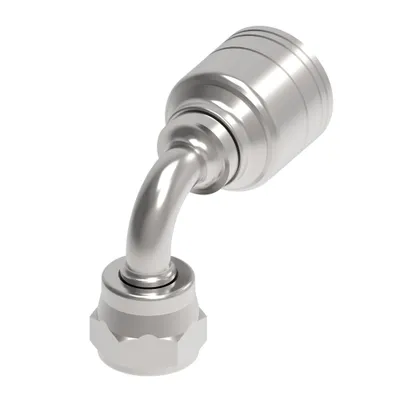

04Z-74P-BG

Hose End (perm) 1S/1R

Danfoss

04Z-74P

Hose End (perm) 1S/1R 90 D F BSPP Swvl

Danfoss

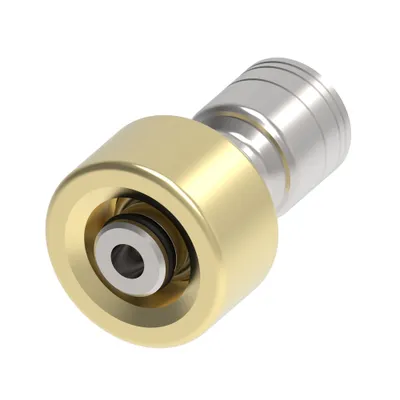

04Z-6PW

HOSE END (PERM) 1S.1R STR PRESS WASHER

Danfoss

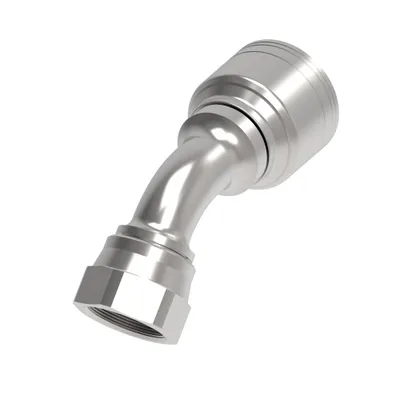

04Z-686-TZ

Ftng (perm), R2 Female JIC 45 Deg Elbow

Danfoss

04Z-686-BG

Hose End (perm) 1S/1R

Danfoss

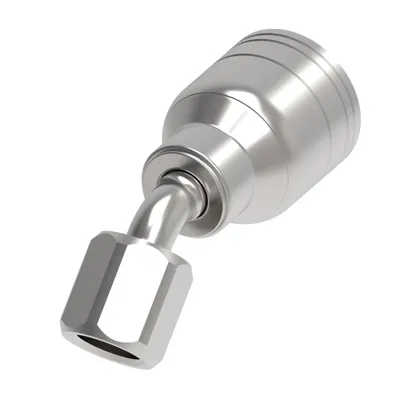

04Z-686

Hose End (perm) 1S/1R 45 D F SAE 37 Sw

Danfoss

04Z-685-BG

Hose End (perm) 1S/1R

Danfoss

04Z-685

Hose End (perm) 45 D F SAE 37 Swivel

Danfoss

04Z-684-TZ

Ftng (perm) SAE 37 R2 Female JIC 45D

Danfoss

04Z-684-BG

Ftng (perm) 1S/1R

Danfoss

04Z-684

Ftng (perm) 1S/1R Female JIC 45 Deg Swvl

Danfoss

04Z-666-TZ

Ftng (perm) R2 Female JIC 90 Deg Elbow

Danfoss

04Z-666-BG

Ftng (perm), SAE 37 R2

Danfoss

04Z-666

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

Danfoss

04Z-665-BG

Hose End (perm) 1S/1R

Danfoss

04Z-665

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

Danfoss

04Z-664-TZ

Ftng (perm) R2 Female JIC 90 Deg Elbow

Danfoss

04Z-664-BG

Ftng (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Drop dimension IN	Drop dimension MM	Hose cut off factor IN	Hose cut off factor MM
04Z-A24-BG	810075335064	1.000	21.00	1.170	29.718
04Z-A24	639789292605	0.820	20.80	1.170	29.718
04Z-755-BG	810075335057	—	—	0.800	20.320
04Z-755	639789320810	—	—	0.800	20.320
04Z-754-BG	810075335040	—	—	0.860	21.844
04Z-754	639789321367	—	—	0.860	21.844
04Z-74P-BG	810075335033	1.000	25.00	0.880	22.352
04Z-74P	639789294388	0.980	24.90	0.880	22.352
04Z-6PW	639789297044	—	—	1.390	35.306
04Z-686-TZ	810075333954	0.000	11.00	1.530	38.862
04Z-686-BG	810075335026	0.000	11.00	1.170	29.718
04Z-686	639789292599	0.450	11.40	1.530	38.862
04Z-685-BG	810075335019	0.000	9.00	1.120	28.448
04Z-685	639789294371	0.370	9.40	1.120	28.448
04Z-684-TZ	810075333848	0.330	8.40	0.970	24.638
04Z-684-BG	810075335002	0.000	8.00	0.970	24.638
04Z-684	639789292582	0.330	8.40	0.970	24.638
04Z-666-TZ	810075333978	1.000	23.00	0.990	25.146
04Z-666-BG	810075334999	1.000	23.00	0.990	25.146
04Z-666	639789292575	0.900	22.90	0.990	25.146
04Z-665-BG	810075334982	1.000	20.00	0.996	25.298
04Z-665	639789294364	0.770	19.60	0.996	25.298
04Z-664-TZ	810075333855	1.000	17.00	0.920	23.368
04Z-664-BG	810075334975	1.000	17.00	0.920	23.368

Common to all listed parts

Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
Hose size	-4
Product material	Carbon steel
Thread sealant	No
