Braided hose and fittings Parts

Danfoss

10Z-18C

Hose End (perm) 1S/1R Str F Metric Light

Danfoss

10Z-18A-BG

Hose End (perm) 1S/1R

Danfoss

10Z-18A

Hose End (perm) 1S/1R Str M Metric Lgt

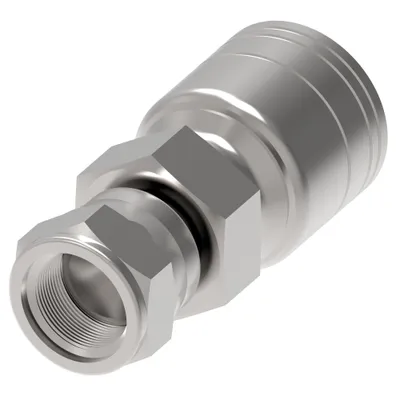

Danfoss

10Z-12L-BG

Ftng (perm), JIS

Danfoss

10Z-12L

Ftng (perm), JIS STR FEM SWIVEL

Danfoss

10Z-112-BG

Hose End (perm) 1S/1R

Danfoss

10Z-112

Hose End (perm) 1S/1R Str -12 M Pipe

Danfoss

10Z-108-BG

Hose End (perm) 1S/1R

Danfoss

10Z-108

Hose End (perm) 1S/1R Str -08 M Pipe

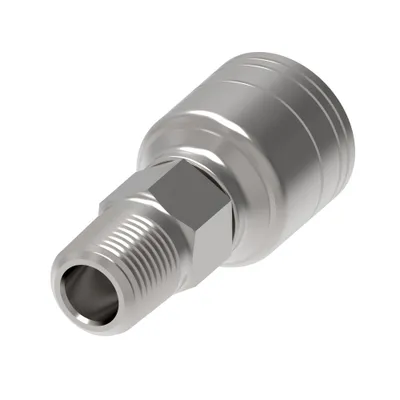

Danfoss

10Z-106-BG

Ftng (perm), NPTF

Danfoss

10Z-106

Ftng (perm), NPTF STR -10HOSE x 3/8 MP

Danfoss

10811L-22-08Z

HOSE NIPPLE ASSY,2P/08,M45D-M/22,CS,STR

Danfoss

10811L-20-08Z

HOSE NIPPLE ASSY,2P/08,M45D-M/20,CS,STR

Danfoss

10811L-16-06Z

HOSE NIPPLE ASSY,2P/06,M45D-M/16,CS,STR

Danfoss

10811L-14-06Z

HOSE NIPPLE ASSY,2P/06,M45D-M/14,CS,STR

Danfoss

10711-27-10Z

HOSE NIPPLE ASSY,2P/10,MJIC-M /27,CS,STR

Danfoss

10711-12-04AZ

HOSE NIPPLE ASSY,2P/04,MJIC-M /12,CS,STR

Danfoss

10511YT-36-12Z

HOSE FTG, 1P/12, DKOH-B/36, CS, STR

Danfoss

10511YT-24-08Z

HOSE FTG, 1P/08, DKOH-B/24, CS, STR

Danfoss

10511YT-20-06Z

HOSE FTG, 1P/06, DKOH-B/20, CS, STR

Danfoss

10511Y-24-08Z

HOSE FTG, 1P/08, DKOH-B/24, CS, STR

Danfoss

10511Y-24-06Z

HOSE FTG, 1P/06, DKOH-B/24, CS, STR

Danfoss

10511Y-20-06Z

HOSE FTG, 1P/06, DKOH-B/20, CS, STR

Danfoss

10511Y-16-04Z

HOSE FTG, 1P/04, DKOH-B/16, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM	Thread size 1
10Z-18C	1.260	32.0	1.170	29.718	—
10Z-18A-BG	1.060	26.9	1.050	26.670	—
10Z-18A	1.060	26.9	1.050	26.670	—
10Z-12L-BG	1.260	32.0	1.780	45.212	G 3/4
10Z-12L	1.260	32.0	1.780	45.212	G 3/4
10Z-112-BG	1.060	26.9	1.400	35.560	—
10Z-112	1.060	26.9	1.400	35.560	—
10Z-108-BG	0.940	23.9	1.580	40.132	—
10Z-108	0.940	23.9	1.580	40.132	—
10Z-106-BG	0.940	23.9	1.330	33.782	—
10Z-106	0.940	23.9	1.330	33.782	—
10811L-22-08Z	1.060	26.924	2.460	62.500	M22X1.5
10811L-20-08Z	1.060	26.900	2.260	57.500	M20X1.5
10811L-16-06Z	0.866	21.996	1.830	46.500	M16X1.5
10811L-14-06Z	0.669	17.000	1.830	46.500	M14X1.5
10711-27-10Z	1.181	30.000	1.490	38.000	M27x1.5
10711-12-04AZ	0.551	14.000	1.120	28.500	M12x1
10511YT-36-12Z	1.614	41.000	1.590	40.500	M36x2
10511YT-24-08Z	1.063	27.000	1.240	31.500	M24X1.5
10511YT-20-06Z	0.866	22.000	1.040	26.500	M20X1.5
10511Y-24-08Z	1.063	27.000	1.240	31.500	M24X1.5
10511Y-24-06Z	1.063	27.000	1.200	30.500	M24X1.5
10511Y-20-06Z	0.870	22.098	1.040	26.500	M20X1.5
10511Y-16-04Z	0.670	17.018	1.040	26.500	M16X1.5

Common to all listed parts

Angle shape	Straight
Construction Style	Crimp
Product material	Carbon steel
Thread sealant	No
