Danfoss 10511YT-36-12Z

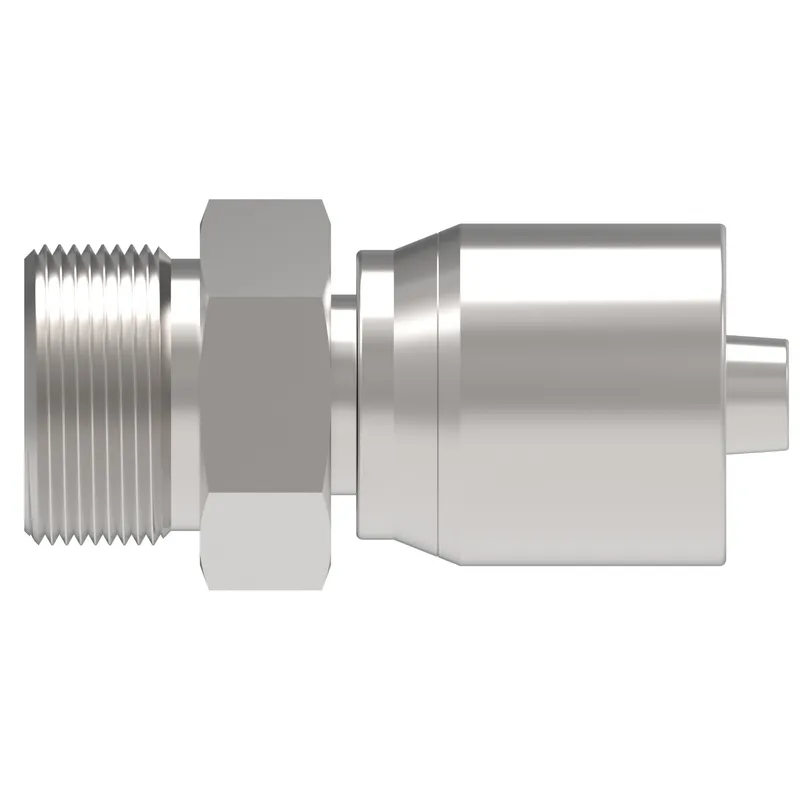

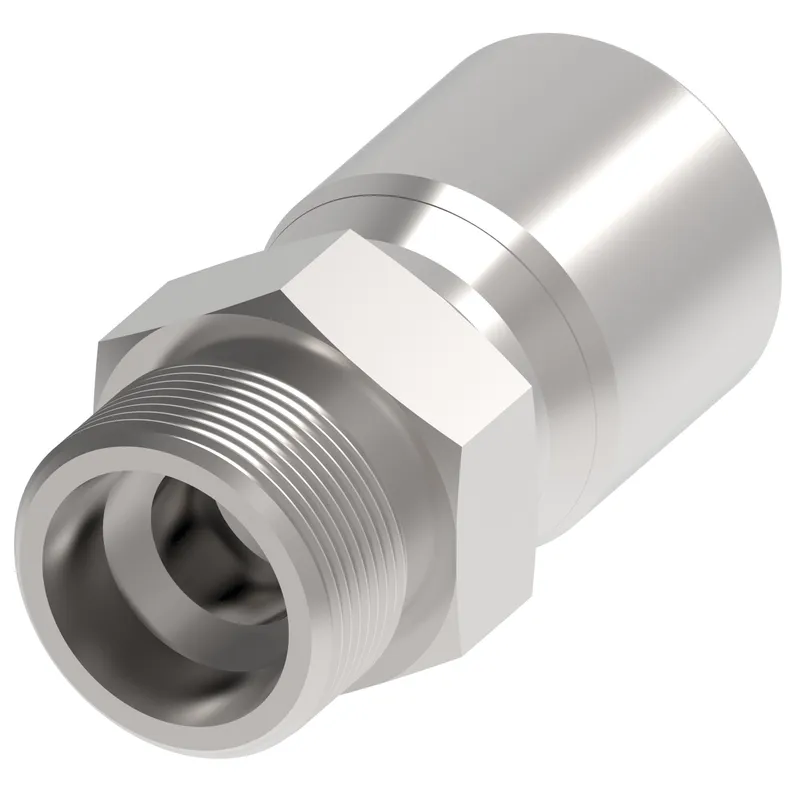

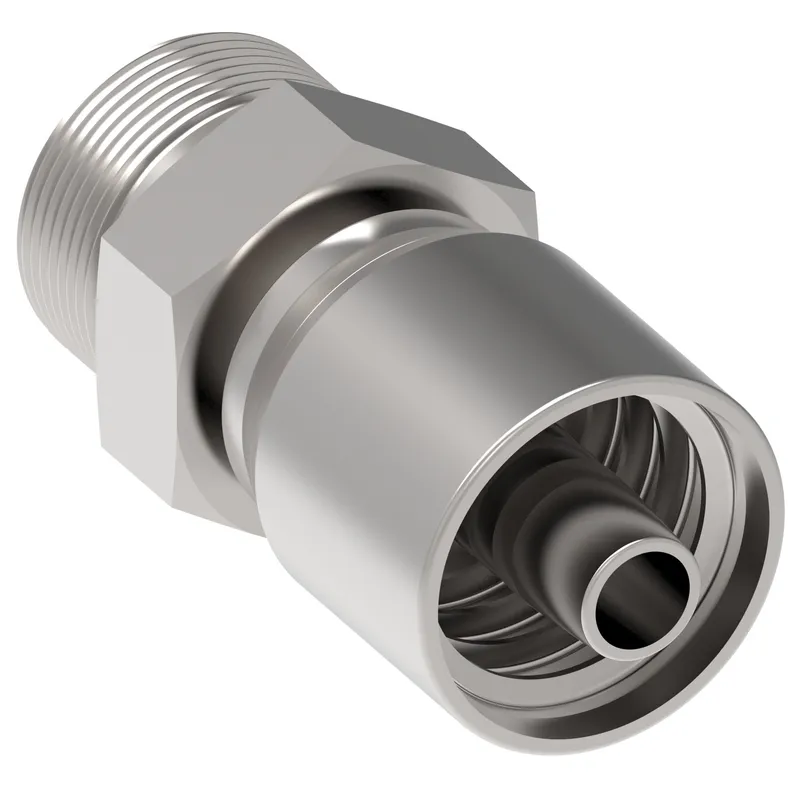

HOSE FTG, 1P/12, DKOH-B/36, CS, STR

MPN: 10511YT-36-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10511YT-36-12Z?

Danfoss HOSE FTG, 1P/12, DKOH-B/36, CS, STR, manufacturer part number 10511YT-36-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.110
A dimension MM	79.000
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	125-140 lb-ft(170-190 Nm)
End type 1	24 deg. DKO swivel heavy duty
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.614
Hex size 1 MM	41.000
Hose cut off factor IN	1.590
Hose cut off factor MM	40.500
Hose size	-12
Inside diameter IN	0.5900
Inside diameter MM	15.0000
Product height in	1.862
Product height mm	47.300
Product length in	3.110
Product length mm	79.000
Product material	Carbon steel
Product width in	1.614
Product width mm	41.000 mm
Thread sealant	No
Thread size 1	M36x2
