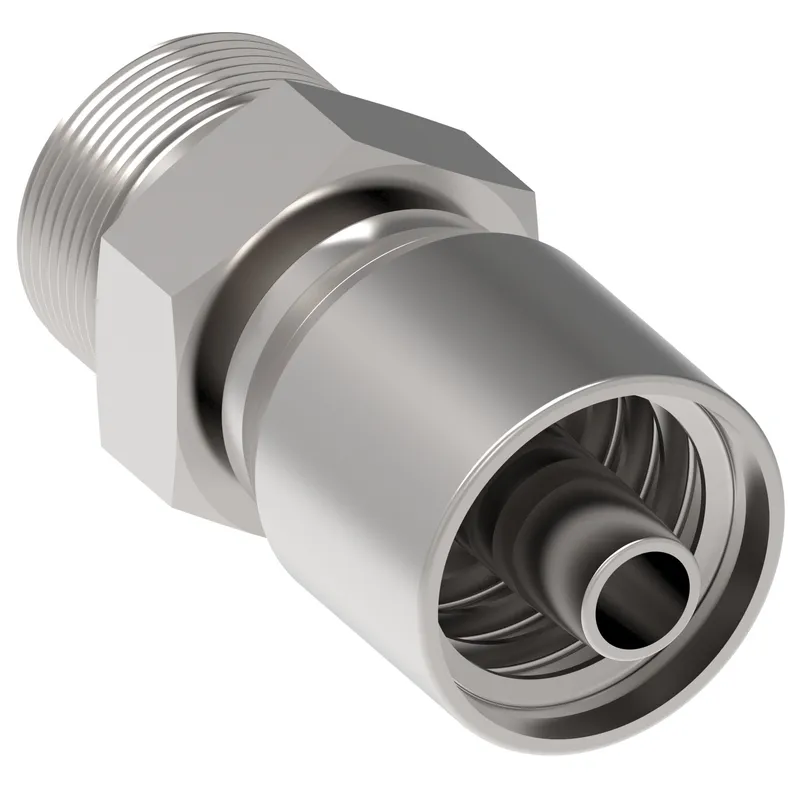

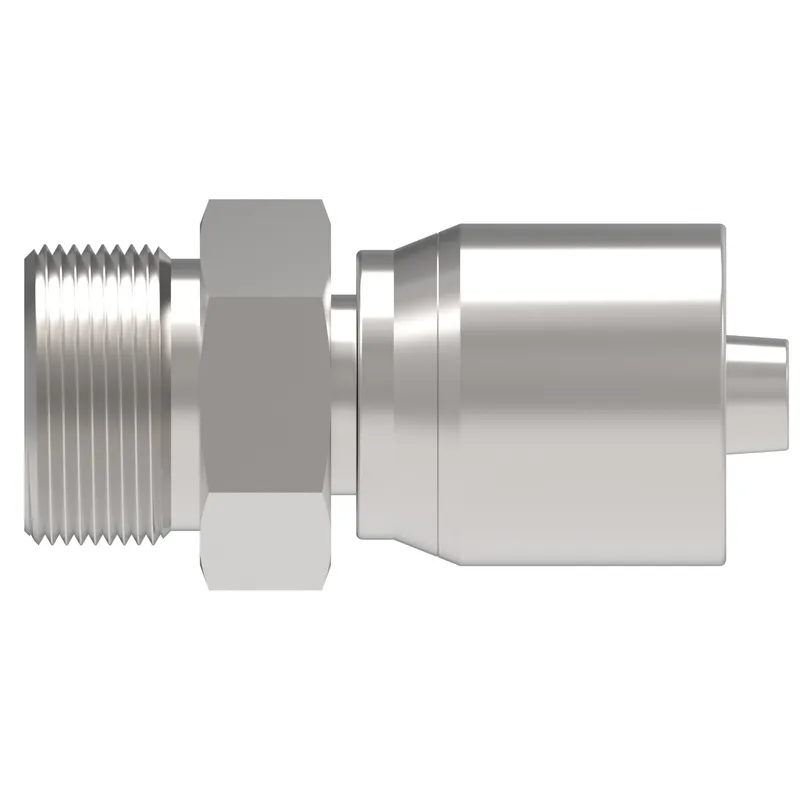

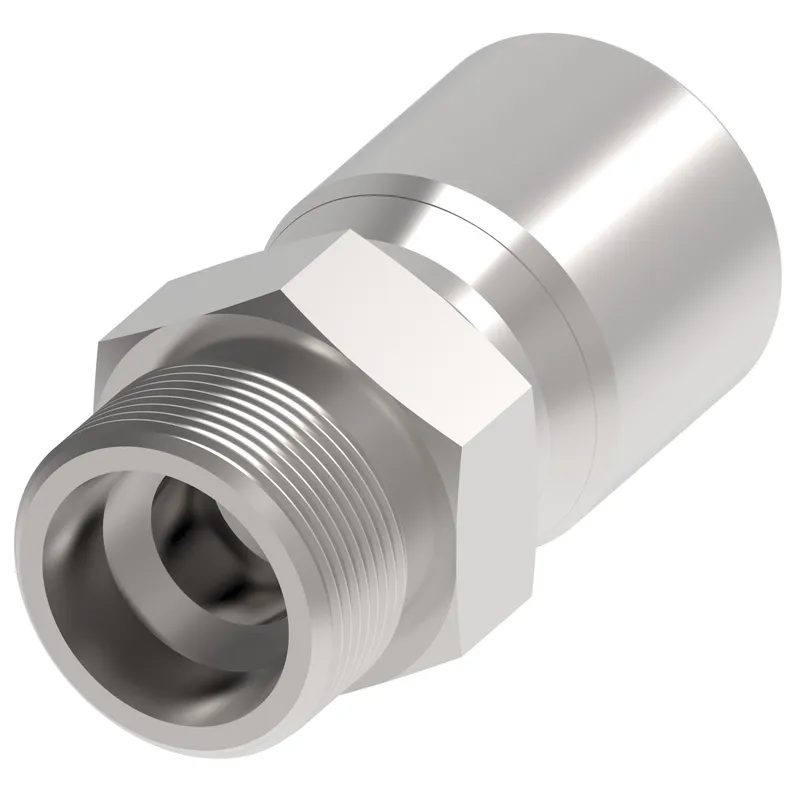

Danfoss 10511Y-16-04Z

HOSE FTG, 1P/04, DKOH-B/16, CS, STR

MPN: 10511Y-16-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10511Y-16-04Z?

Danfoss HOSE FTG, 1P/04, DKOH-B/16, CS, STR, manufacturer part number 10511Y-16-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.140
A dimension MM	54.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End size 1	-16
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.670
Hex size 1 MM	17.018
Hose cut off factor IN	1.040
Hose cut off factor MM	26.500
Hose size	-4
Inside diameter IN	0.1500
Inside diameter MM	4.0000
Product height in	0.890
Product height mm	22.606
Product length in	2.140
Product length mm	54.356
Product material	Carbon steel
Product width in	0.890
Product width mm	22.606 mm
Thread sealant	No
Thread size 1	M16X1.5
Working pressure max BAR	280
Working pressure max PSI	4050
