Danfoss 10511YT-24-08Z

HOSE FTG, 1P/08, DKOH-B/24, CS, STR

MPN: 10511YT-24-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10511YT-24-08Z?

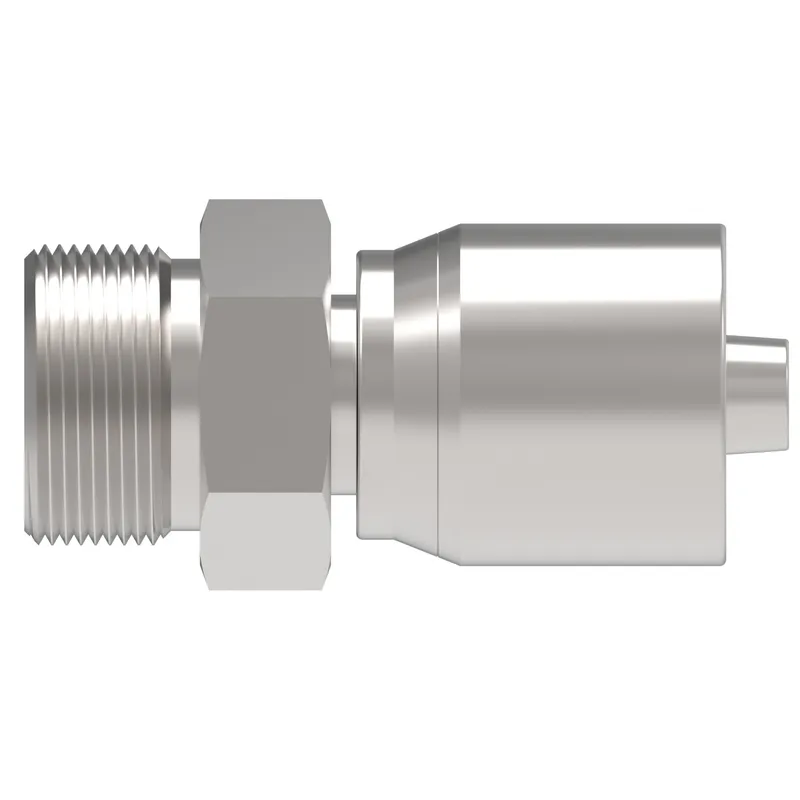

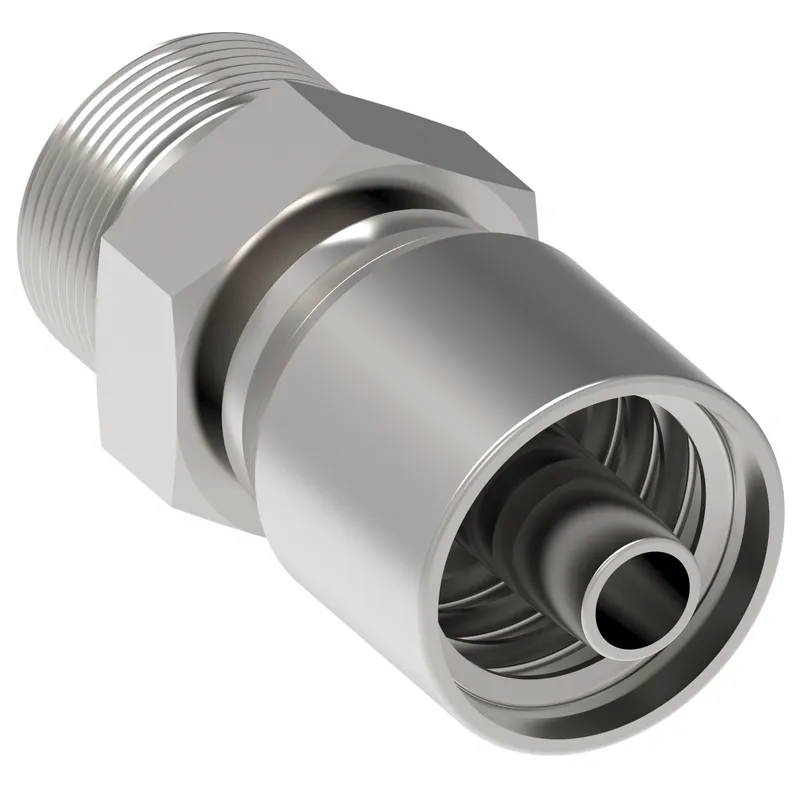

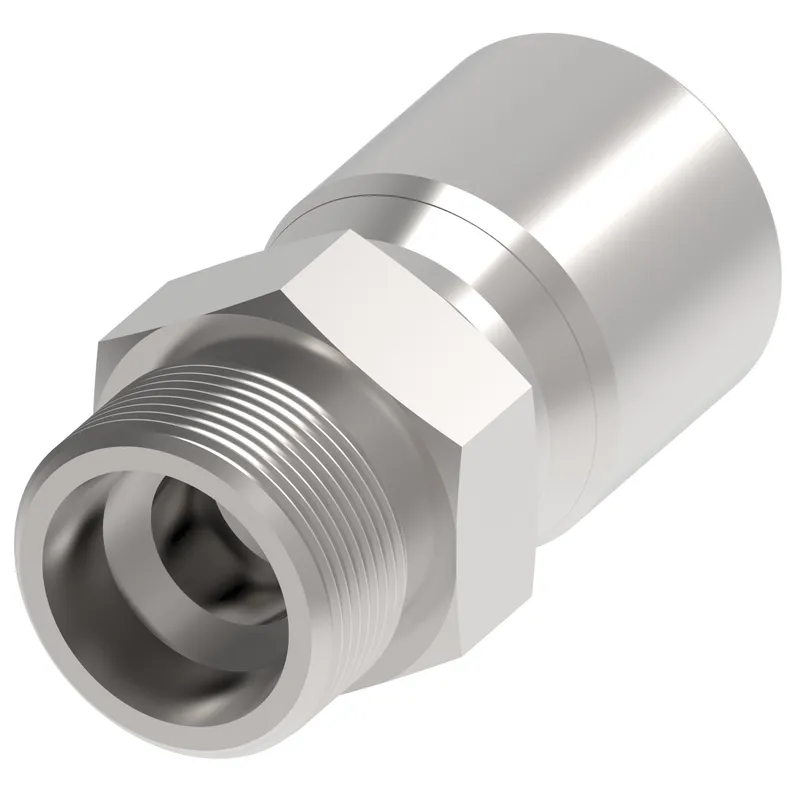

Danfoss HOSE FTG, 1P/08, DKOH-B/24, CS, STR, manufacturer part number 10511YT-24-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.480
A dimension MM	63.000
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-24
End type 1	24 deg. DKO swivel heavy duty
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	1.240
Hose cut off factor MM	31.500
Hose size	-8
Inside diameter IN	0.3900
Inside diameter MM	10.0000
Product height in	1.268
Product height mm	32.200
Product length in	2.480
Product length mm	63.000
Product material	Carbon steel
Product width in	1.268
Product width mm	32.200 mm
Thread sealant	No
Thread size 1	M24X1.5
Working pressure max BAR	172
Working pressure max PSI	2500
