Braided hose and fittings Parts

Danfoss

10Z-610-TZ

Ftng (perm), SAE 37 R2 Female JIC

Danfoss

10Z-610-BG

Hose End (perm) 1S/1R

Danfoss

10Z-610

Hose End (perm) 1S/1R Str F SAE 37 Swvl

Danfoss

10Z-608-BG

Hose End (perm) 1S/1R

Danfoss

10Z-608

Hose End (perm) 1S/1R Str F SAE 37 Swi

Danfoss

10Z-512-BG

Hose End (perm) 1S/1R

Danfoss

10Z-512

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

10Z-510-BG

Hose End (perm) 1S/1R

Danfoss

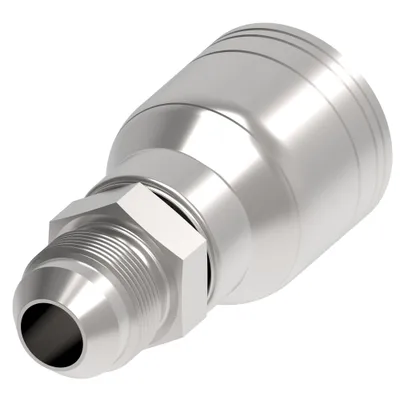

10Z-510

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

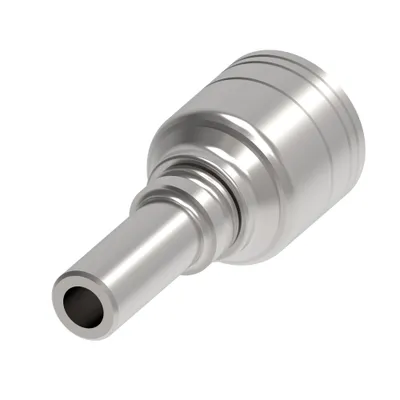

10Z-50T

Ftng (perm), Metric Metric Standpipe

Danfoss

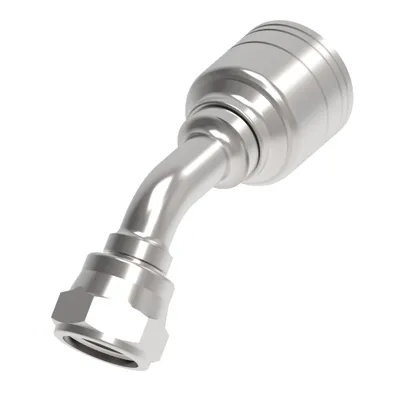

10Z-50P

Hose End (perm) 1S/1R 45 D F BSPP Swvl

Danfoss

10Z-508-BG

Ftng (perm), SAE 37

Danfoss

10Z-508

Ftng (perm) SAE 37 STR -10 HOSE X-8 M

Danfoss

10Z-48T

Ftng (perm), Metric Metric Standpipe

Danfoss

10Z-360-BG

Hose Fitting (perm) R2

Danfoss

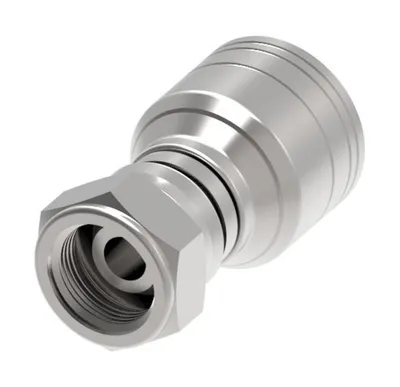

10Z-360

Hose End (perm) 5/8 BSPP Female Swivel

Danfoss

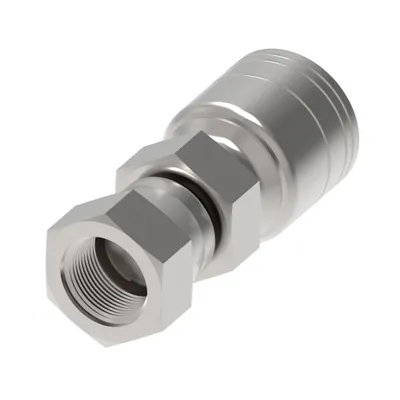

10Z-24K-BG

Hose End (perm) 1S/1R

Danfoss

10Z-24K

Hose End (perm) 1S/1R Str F Komatsu Swi

Danfoss

10Z-20F-BG

Hose End (perm) 1S/1R

Danfoss

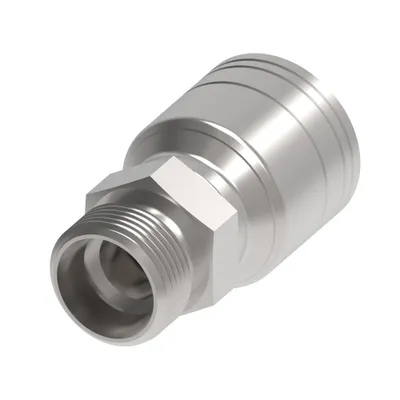

10Z-20F

Hose End (perm) 1S/1R Str M Metric Heavy

Danfoss

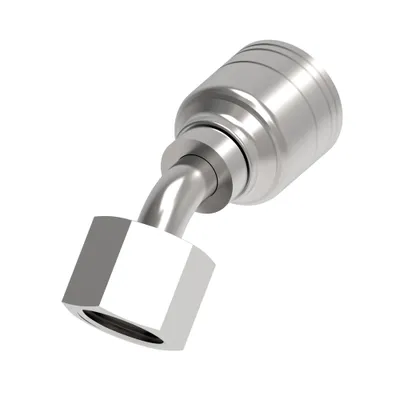

10Z-20E

Hose End (perm) 1S/1R 45D F Metric Heavy

Danfoss

10Z-18D-BG

Ftng (perm), DKOL

Danfoss

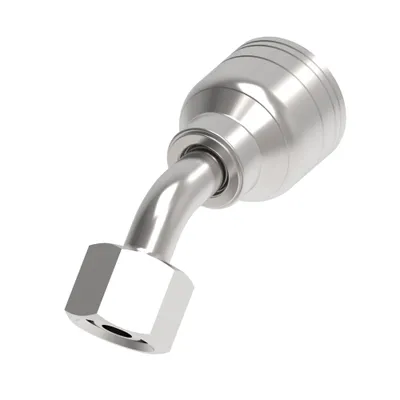

10Z-18D

Ftng (perm), DKOL 45D M26x1.5 F SWVL

Danfoss

10Z-18C-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
10Z-610-BG	810075337044	0.940	23.9	1.610	40.894
10Z-610	639789293381	1.000	23.9	1.620	41.148
10Z-608-BG	810075337037	0.880	22.4	1.500	38.100
10Z-608	639789293374	0.880	22.4	1.500	38.100
10Z-512-BG	810075337020	1.130	28.7	1.430	36.322
10Z-512	639789293367	1.130	28.7	1.430	36.322
10Z-510-BG	810075337013	0.940	23.9	1.570	39.878
10Z-510	639789293350	0.940	23.9	1.590	40.386
10Z-50T	639789320575	—	—	1.560	39.624
10Z-50P	639789295002	1.180	30.0	2.790	70.866
10Z-508-BG	810075337006	—	—	1.410	35.814
10Z-508	639789321343	—	—	1.410	35.814
10Z-48T	639789320568	—	—	1.560	39.624
10Z-360-BG	—	1.180	30.0	0.970	24.638
10Z-360	639789295507	1.180	30.0	0.970	24.638
10Z-24K-BG	810075336993	1.260	32.0	1.810	45.974
10Z-24K	639789294999	1.260	32.0	1.810	45.974
10Z-20F-BG	—	1.260	32.0	1.280	32.512
10Z-20F	639789294982	1.260	32.0	1.280	32.512
10Z-20E	639789294975	1.420	36.1	2.360	59.944
10Z-18D-BG	—	1.260	32.0	2.440	61.976
10Z-18D	639789320285	1.260	32.0	2.440	61.976
10Z-18C-BG	810075336986	1.260	32.0	1.170	29.718

Common to all listed parts

Compatible hose ID IN	0.630
Compatible hose ID MM	16.002
Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-10
Product material	Carbon steel
Thread sealant	No
