Braided hose and fittings Parts

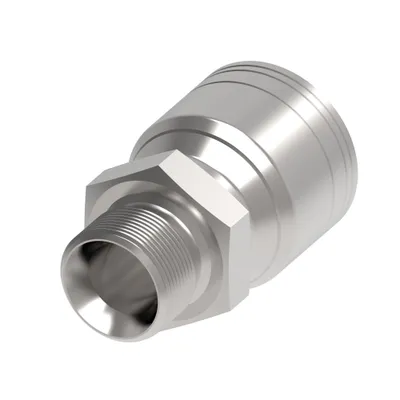

Danfoss

1A4BP5

HOSE FTG, 1A/05, BSPJ/04, CS, STR

Danfoss

1A4BP4

HOSE FTG, 1A/04, BSPJ/04, CS, STR

Danfoss

1A4BFB5

HOSE FTG, 1A/05, BF/04, CS, 90D

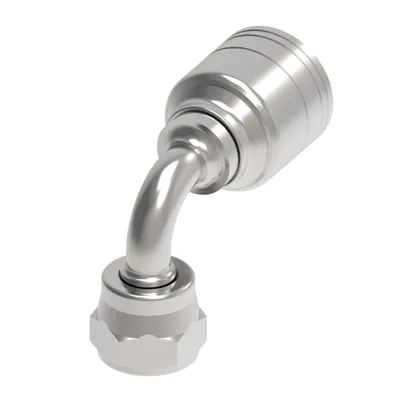

Danfoss

1A4BFB4

HOSE FTG, 1A/04, BF/04, CS, 90D

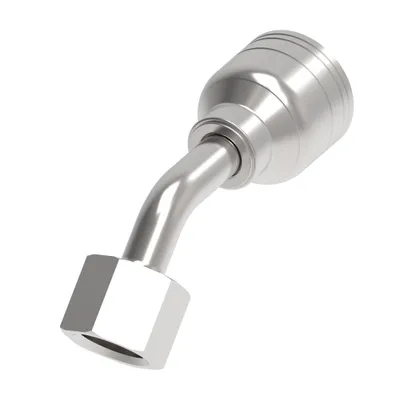

Danfoss

1A4BFA5

HOSE FTG, 1A/05, BF/04, CS, 45D

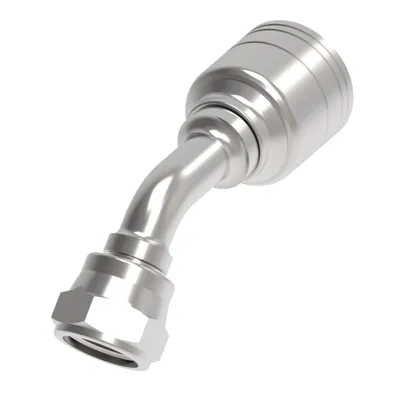

Danfoss

1A4BFA4

HOSE FTG, 1A/04, BF/04, CS, 45D

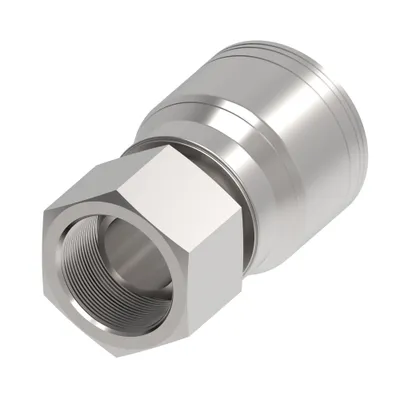

Danfoss

1A4BF5

HOSE FTG, 1A/05, BF/04, CS, STR

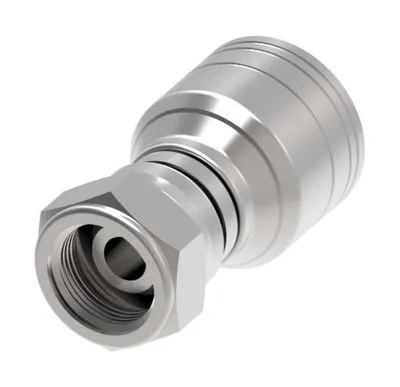

Danfoss

1A4BF4

HOSE FTG, 1A/04, BF/04, CS, STR

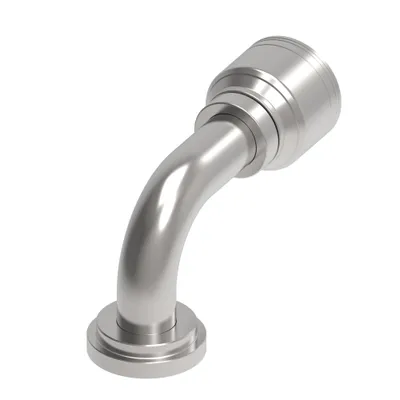

Danfoss

1A40FLB32

HOSE FTG, 1A/32, C61/40, CS, 90D

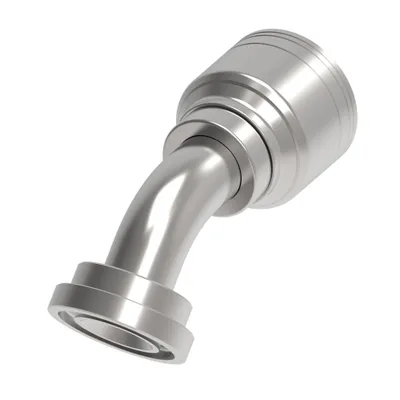

Danfoss

1A40FLA32

HOSE FTG, 1A/32, C61/40, CS, 45D

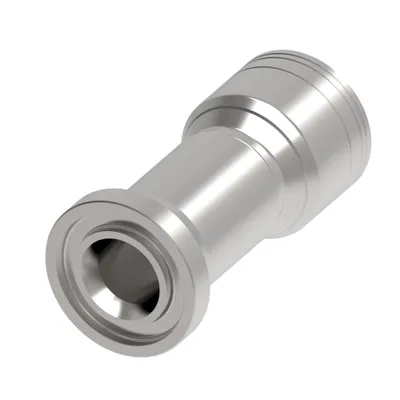

Danfoss

1A40FL32

HOSE FTG, 1A/32, C61/40, CS, STR

Danfoss

1A40DLB24.080

HOSE FTG, 1A/24, DKOL/40, CS, 90D

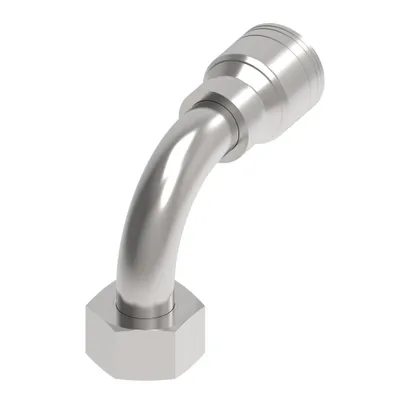

Danfoss

1A40DLB24

HOSE FTG, 1A/24, DKOL/40, CS, 90D

Danfoss

1A40DLA24.042

HOSE FTG, 1A/24, DKOL/24, CS, 45D

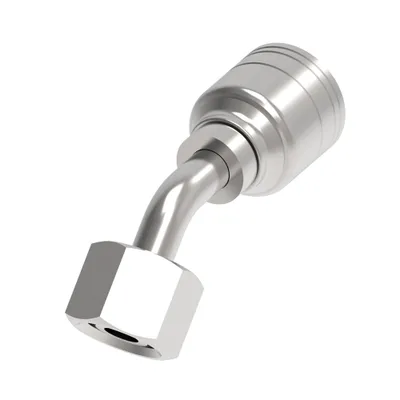

Danfoss

1A40DLA24

HOSE FTG, 1A/24, DKOL/40, CS, 45D

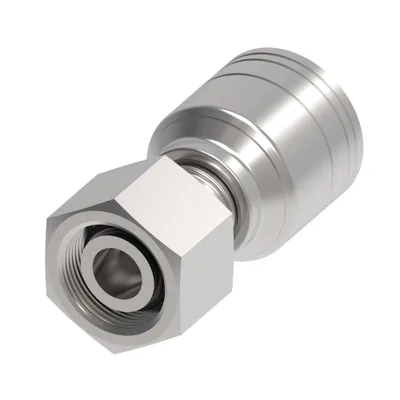

Danfoss

1A40DL24

HOSE FTG, 1A/24, DKOL/40, CS, STR

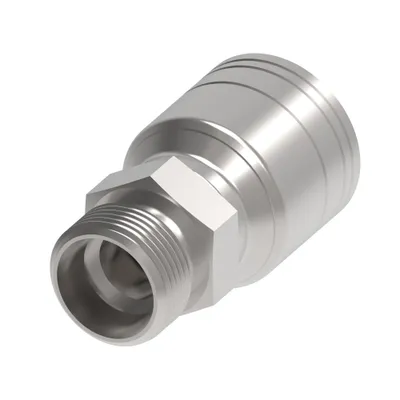

Danfoss

1A40DK24

HOSE FTG, 1A/24, DKL-M/40, CS, STR

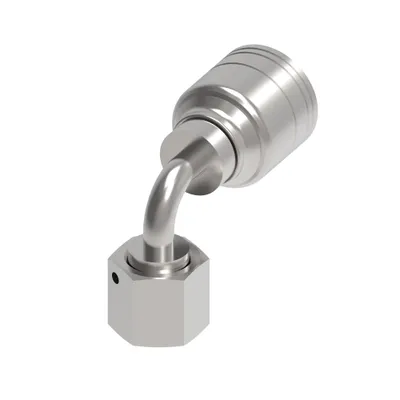

Danfoss

1A3DSB4

HOSE FTG, 1A/04, DKOH-B/03, CS, 90D

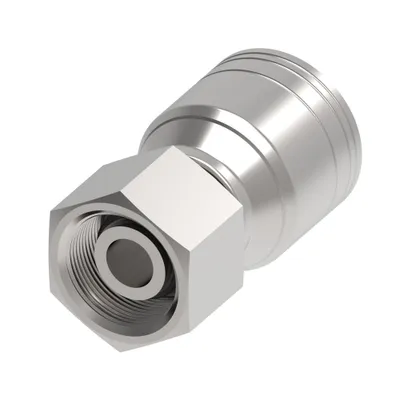

Danfoss

1A3DS4

HOSE FTG, 1A/04, DKOH-B/03, CS, STR

Danfoss

1A34GG16

HOSE FTG, 1A/16, GG/34, CS, STR

Danfoss

1A32MP32

HOSE FTG, 1A/32, NPTF-M/32, CS, STR

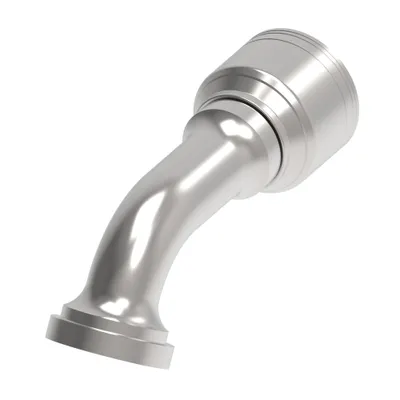

Danfoss

1A32FLG32

HOSE FTG, 1A/32, C61/32, CS, 60D

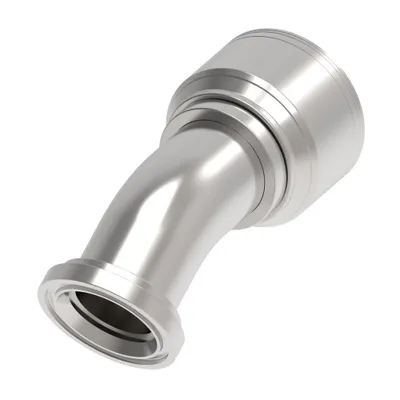

Danfoss

1A32FLF32

HOSE FTG, 1A/32, C61/32, CS, 30D

Danfoss

1A32FLB32

HOSE FTG, 1A/32, C61/32, CS, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor IN	Product length in	Product length mm
1A4BP5	1.780	45.100	0.830	1.776	45.100
1A4BP4	1.740	44.300	0.820	1.740	44.196
1A4BFB5	2.160	54.800	1.220	2.492	63.300
1A4BFB4	1.800	45.800	0.880	2.130	54.102
1A4BFA5	2.630	66.700	1.690	2.626	66.700
1A4BFA4	2.570	65.300	1.650	3.080	78.232
1A4BF5	1.790	45.500	0.850	1.791	45.500
1A4BF4	1.670	42.300	0.750	1.670	42.418
1A40FLB32	7.232	183.700	5.413	9.110	231.394
1A40FLA32	5.030	127.800	3.210	6.680	169.672
1A40FL32	4.370	111.000	2.550	4.600	116.840
1A40DLB24.080	5.060	128.500	3.240	6.420	163.068
1A40DLB24	5.980	152.000	4.160	7.160	181.864
1A40DLA24.042	5.840	148.400	4.020	7.200	182.880
1A40DLA24	7.110	180.500	5.280	8.290	210.560
1A40DL24	3.430	87.200	1.610	3.430	87.122
1A40DK24	3.350	85.000	1.530	3.346	85.000
1A3DSB4	1.179	45.400	0.870	2.122	53.900
1A3DS4	1.770	44.900	0.850	1.768	44.900
1A34GG16	2.567	65.200	1.213	2.567	65.200
1A32MP32	4.350	110.500	2.530	4.350	110.500
1A32FLG32	5.700	144.700	3.880	7.340	186.436
1A32FLF32	6.630	168.500	4.810	8.270	210.058
1A32FLB32	7.230	183.700	5.410	8.860	225.044

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	1A/Z Series
