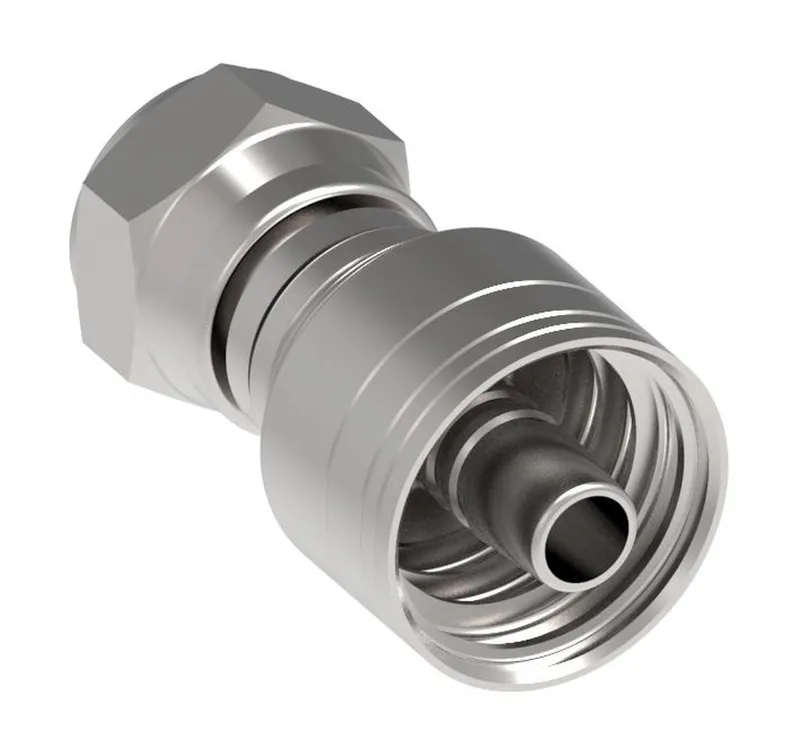

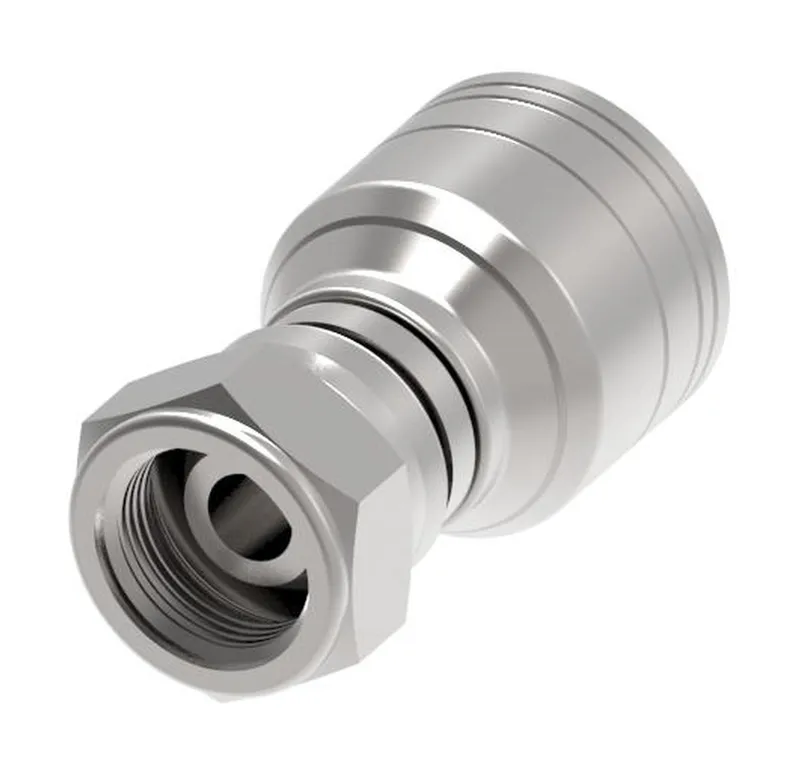

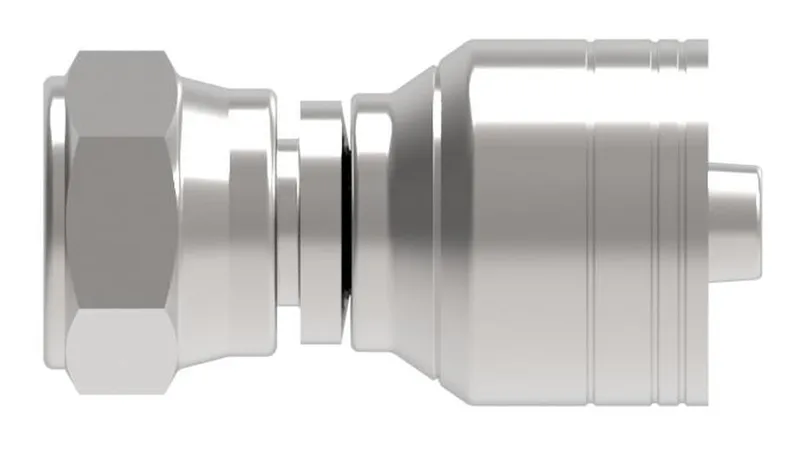

HOSE FTG, 1A/04, BF/04, CS, STR

Name: HOSE FTG, 1A/04, BF/04, CS, STR
Brand: Danfoss (Drives)
SKU: 1A4BF4

MPN: 1A4BF4 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1A4BF4 be shipped?

1A4BF4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A4BF4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A4BF4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A4BF4, subject to availability and destination.

Danfoss HOSE FTG, 1A/04, BF/04, CS, STR, manufacturer part number 1A4BF4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146124302
A dimension IN	1.670
A dimension MM	42.300
Body size	N/A
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Construction Style	Crimp
End connection torque	19-23 lb-ft(25-30 Nm)
Finish plating	Dura-Kote
Hose cut off factor IN	0.750
Hose cut off factor MM	18.900
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	1.670
Product length mm	42.418
Product material	Carbon steel
Product width in	0.882
Product width mm	22.403
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350
Working pressure max PSI	6550.00
