Braided hose and fittings Parts

Danfoss

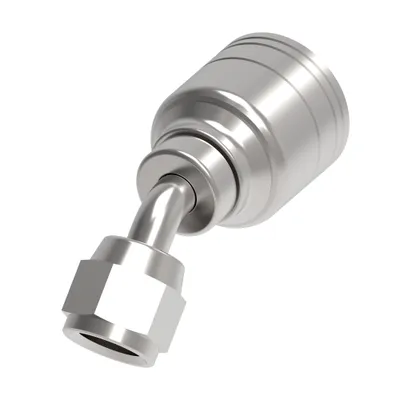

1A5FJA5

HOSE FTG, 1A/05, JIC-F/05, CS, 45D

Danfoss

1A5FJA4

HOSE FTG, 1A/04, JIC-F/05, CS, 45D

Danfoss

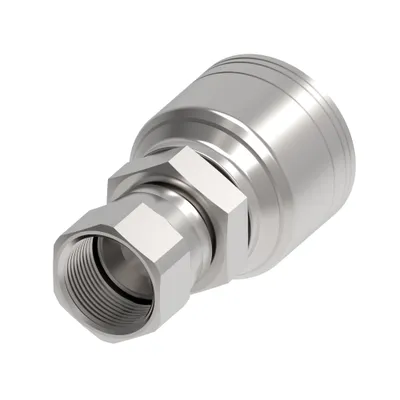

1A5FJ6

HOSE FTG, 1A/06, JIC-F/05, CS, STR

Danfoss

1A5FJ5

HOSE FTG, 1A/05, JIC-F/05, CS, STR

Danfoss

1A5FJ4

HOSE FTG, 1A/04, JIC-F/05, CS, STR

Danfoss

1A5EK4

HOSE FTG, 1A/04, DKH-M/05, CS, STR

Danfoss

1A5DSB4C

HOSE FTG, 1A/04, DKOH-B/05, AP, 90D

Danfoss

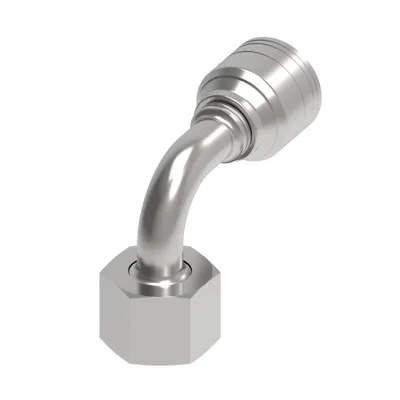

1A5DSB4

HOSE FTG, 1A/04, DKOH-B/05, CS, 90D

Danfoss

1A5DSA4

HOSE FTG, 1A/04, DKOH-B/05, CS, 45D

Danfoss

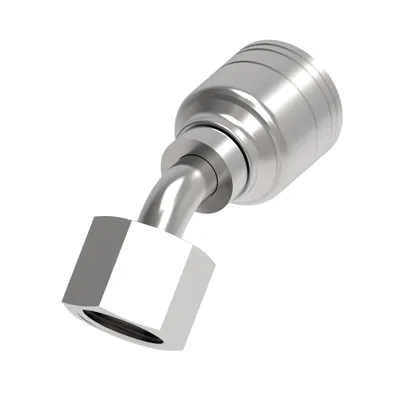

1A5DSA3

HOSE FTG, 1A/03, DKOH-B/05, CS, 45D

Danfoss

1A5DS4AH

HOSE FTG, 1A/04, DKOH-B/05, CS, STR

Danfoss

1A5DS4

HOSE FTG, 1A/04, DKOH-B/05, CS, STR

Danfoss

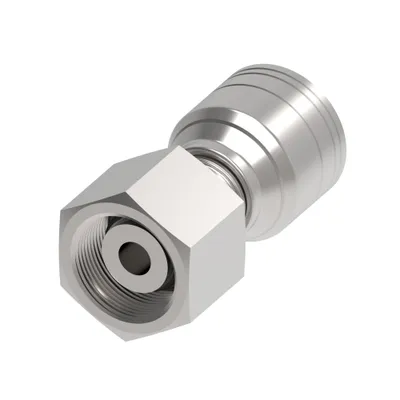

1A5DS3

HOSE FTG, 1A/03, DKOH-B/05, CS, STR

Danfoss

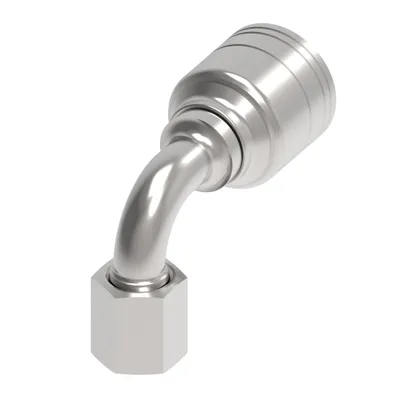

1A5DLB4

HOSE FTG, 1A/04, DKOL/05, CS, 90D

Danfoss

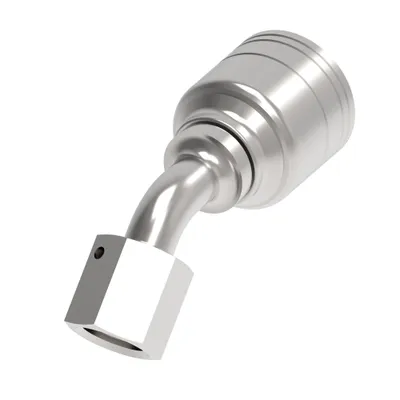

1A5DLA4

HOSE FTG, 1A/04, DKOL/05, CS, 45D

Danfoss

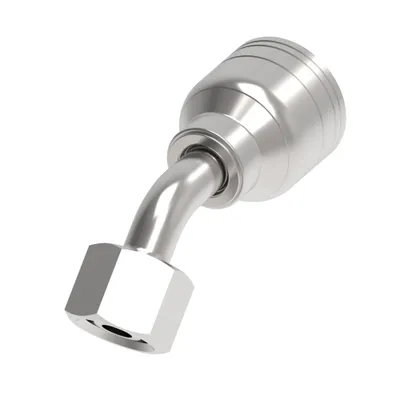

1A5DLA3

HOSE FTG, 1A/03, DKOL/05, CS, 45D

Danfoss

1A5DL4C

HOSE FTG, 1A/04, DKOL/05, CS, STR

Danfoss

1A5DL4AH

HOSE FTG, 1A/04, DKOL/05, CS, STR

Danfoss

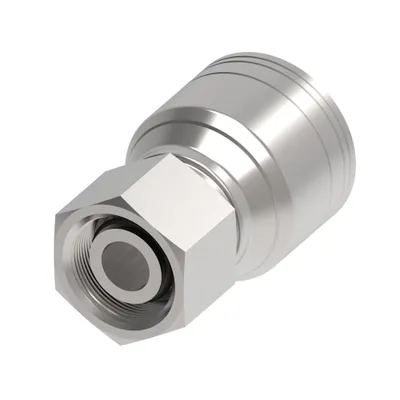

1A5DL4

HOSE FTG, 1A/04, DKOL/05, CS, STR

Danfoss

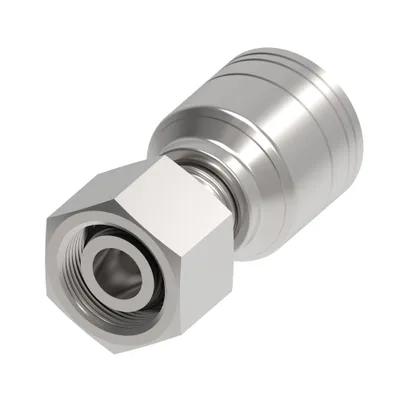

1A5DL3

HOSE FTG, 1A/03, DKOL/05, CS, STR

Danfoss

1A5DK4

HOSE FTG, 1A/04, DKL-M/05, CS, STR

Danfoss

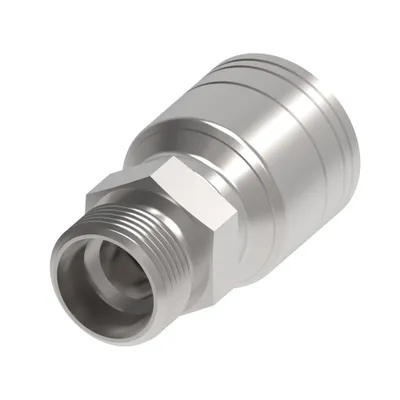

1A5DK3

HOSE FTG, 1A/03, DKL-M/05, CS, STR

Danfoss

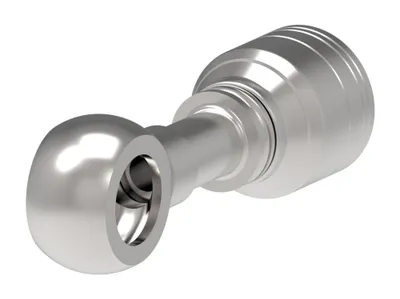

1A5BJ4

HOSE FTG, 1A/04, BANJO/05, CS, STR

Danfoss

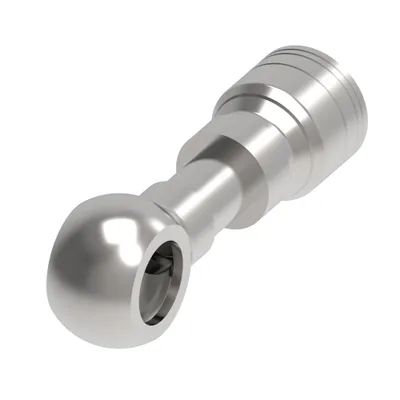

1A5BJ3

HOSE FTG, 1A/03, BANJO/05, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension MM	Hose cut off factor IN	Hose cut off factor MM	Product length in	Product length mm
1A5FJA5	50.400	1.130	28.800	1.984	50.400
1A5FJA4	48.700	1.120	28.500	2.748	69.800
1A5FJ6	52.800	1.240	31.500	2.239	56.860
1A5FJ5	50.500	1.140	28.900	2.148	54.560
1A5FJ4	50.400	1.140	28.900	1.858	47.200
1A5EK4	47.500	0.950	24.100	1.870	47.498
1A5DSB4C	54.000	1.200	30.600	2.500	63.500
1A5DSB4	54.000	1.200	30.600	2.500	63.500
1A5DSA4	56.400	1.300	33.000	2.590	65.786
1A5DSA3	51.000	1.320	33.500	2.382	60.500
1A5DS4AH	49.600	1.030	26.200	1.950	49.530
1A5DS4	49.600	1.030	26.200	1.950	49.530
1A5DS3	43.400	1.020	25.900	1.709	43.400
1A5DLB4	49.900	1.040	26.500	2.230	56.642
1A5DLA4	58.100	1.370	34.700	2.560	65.024
1A5DLA3	52.700	1.390	35.200	2.074	52.700
1A5DL4C	45.300	0.920	23.400	1.780	45.212
1A5DL4AH	45.300	0.920	23.400	1.784	45.300
1A5DL4	45.300	0.920	23.400	1.780	45.212
1A5DL3	39.700	0.870	22.200	1.563	39.700
1A5DK4	44.700	0.838	21.300	1.760	44.704
1A5DK3	38.000	0.830	21.000	1.496	38.000
1A5BJ4	50.300	1.060	26.900	2.315	58.800
1A5BJ3	60.600	1.700	43.000	2.720	69.088

Common to all listed parts

Construction Style	Crimp
End size 1	-5
Series	1A/Z Series
Thread sealant	No
