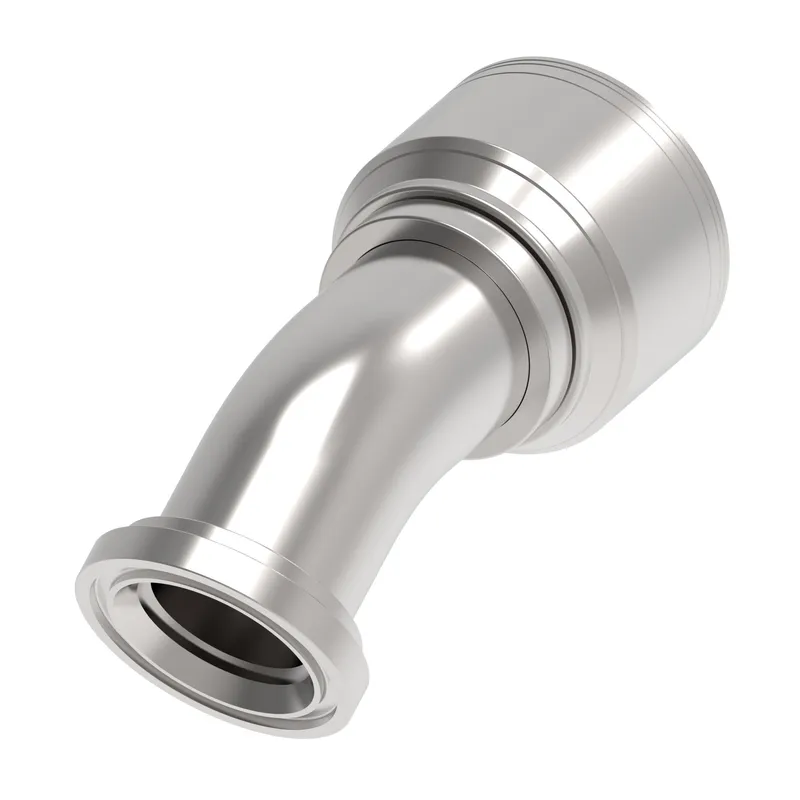

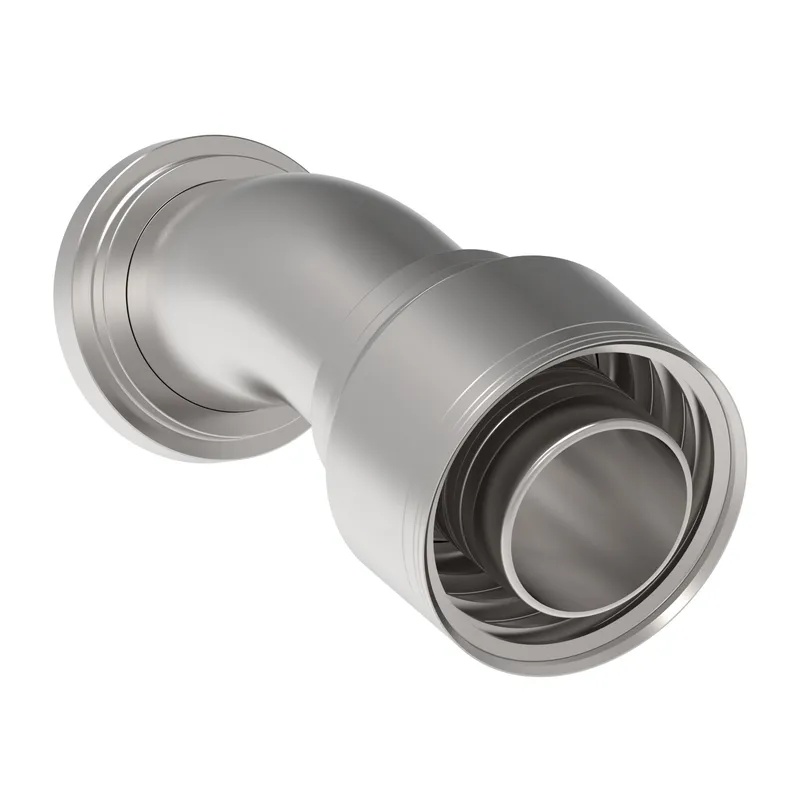

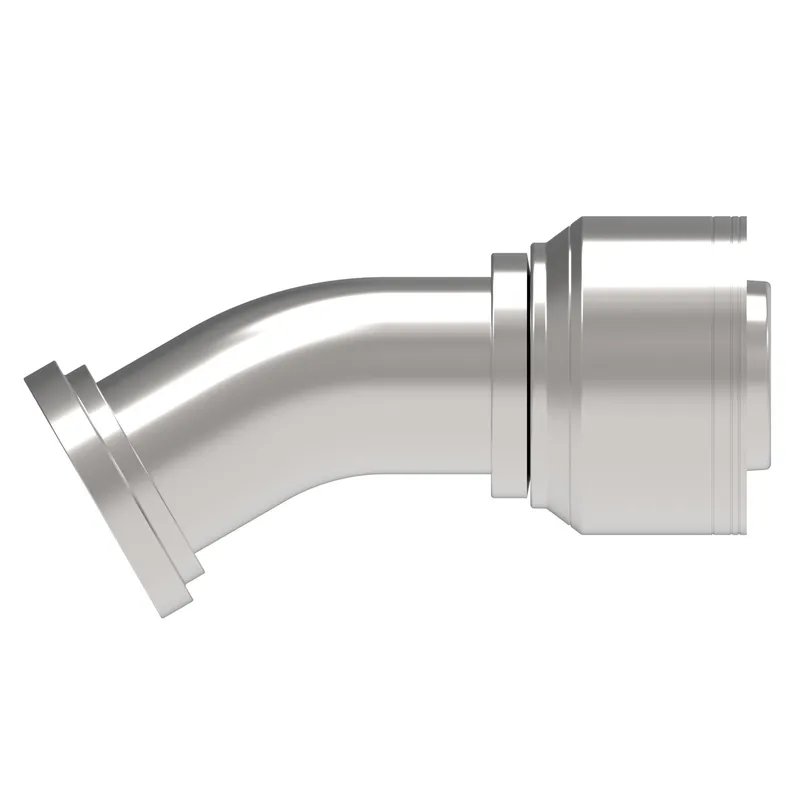

HOSE FTG, 1A/32, C61/32, CS, 30D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1A32FLF32 be shipped?
1A32FLF32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1A32FLF32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1A32FLF32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A32FLF32, subject to availability and destination.
Danfoss HOSE FTG, 1A/32, C61/32, CS, 30D, manufacturer part number 1A32FLF32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146168641 |
| A dimension IN | 6.630 |
| A dimension MM | 168.500 |
| Angle shape | 30 Degree |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Construction Style | Crimp |
| Drop dimension IN | 1.250 |
| Drop dimension MM | 31.75 |
| End size 1 | -32 |
| End Type 1 | Split flange code 61 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 4.810 |
| Hose cut off factor MM | 122.174 |
| Hose size | -32 |
| Inside diameter IN | 1.620 |
| Inside diameter MM | 41.148 |
| Product height in | 4.260 |
| Product height mm | 108.204 |
| Product length in | 8.270 |
| Product length mm | 210.058 |
| Product material | Carbon steel |
| Product width in | 3.224 |
| Product width mm | 81.89 |
| Series | 1A/Z Series |
| Thread sealant | No |
| Working pressure max BAR | 206.00 |
| Working pressure max PSI | 3000.00 |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
