Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor MM | Product length in | Product length mm |
|---|---|---|---|---|---|

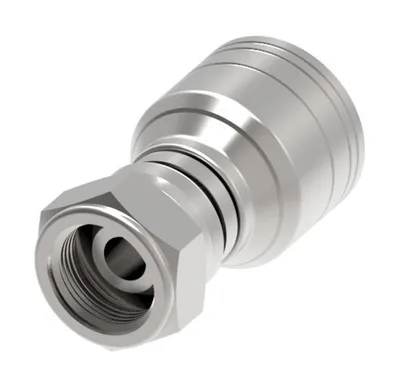

| 1A2BF3 | 1.310 | 33.300 | 15.800 | 1.631 | 41.430 |

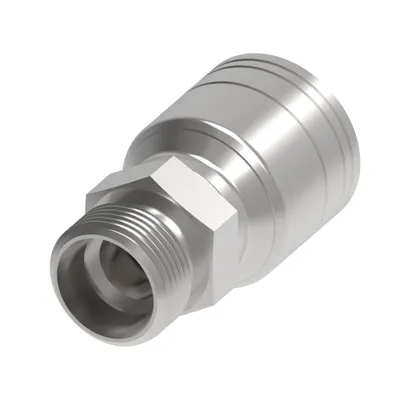

| 1A25EK16 | 2.850 | 72.300 | 37.900 | 2.850 | 72.390 |

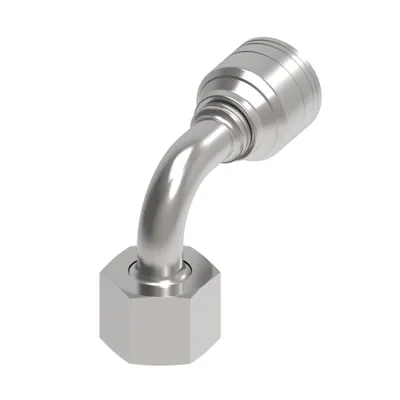

| 1A25DSB16 | 4.090 | 104.000 | 69.600 | 5.040 | 128.016 |

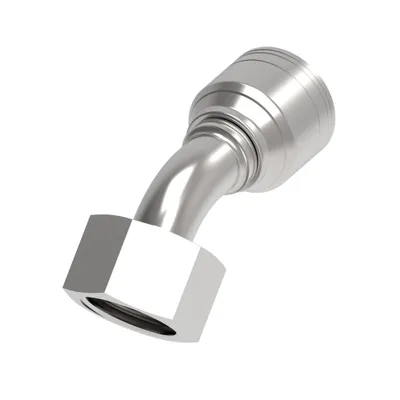

| 1A25DSA16 | 4.780 | 121.400 | 87.000 | 5.760 | 146.304 |
| 1A25DS20 | 3.170 | 80.600 | 36.600 | 3.170 | 80.518 |

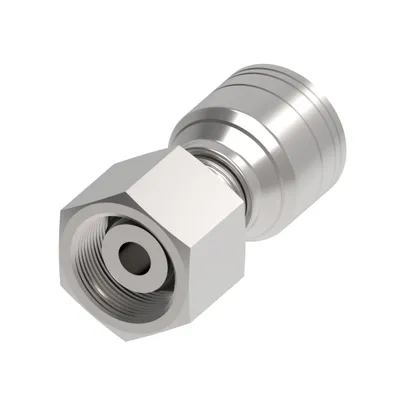

| 1A25DS16 | 3.090 | 78.500 | 44.100 | 3.090 | 78.486 |
| 1A25DLB16V | 3.940 | 100.000 | 65.600 | 4.870 | 123.698 |
| 1A25DLB16AH | 3.940 | 100.000 | 65.600 | 4.870 | 123.698 |

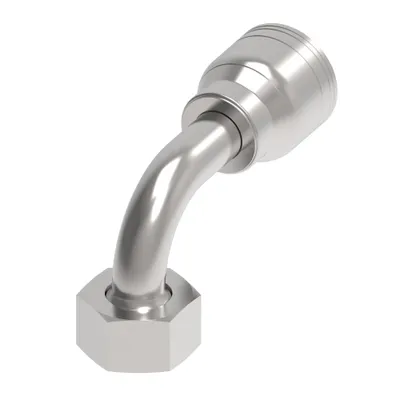

| 1A25DLB16 | 3.940 | 100.000 | 65.600 | 4.740 | 120.396 |

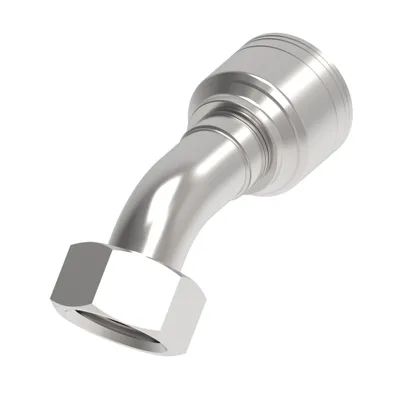

| 1A25DLA16AH | 4.060 | 103.100 | 68.700 | 4.990 | 126.746 |

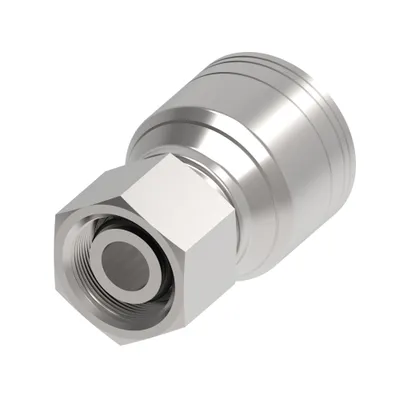

| 1A25DL20 | 3.040 | 77.200 | 33.200 | 3.040 | 77.216 |
| 1A25DL16C | 2.690 | 68.200 | 33.782 | 2.690 | 68.326 |
| 1A25DL16AH | 2.690 | 68.200 | 33.800 | 0.740 | 0.336 |
| 1A25DL16 | 2.690 | 68.200 | 33.800 | 2.690 | 68.326 |

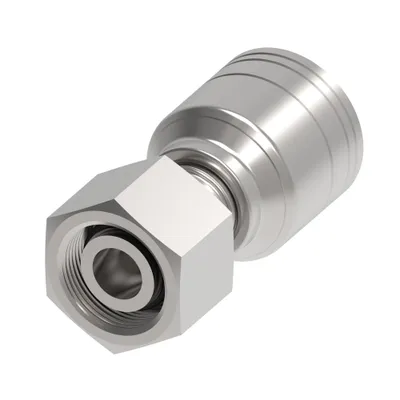

| 1A25DL12 | 2.520 | 64.000 | 33.800 | 2.520 | 64.000 |
| 1A25DK16AH | 2.600 | 66.000 | 31.600 | 2.600 | 66.040 |
| 1A25DK16 | 2.606 | 66.200 | 31.800 | 2.600 | 66.040 |

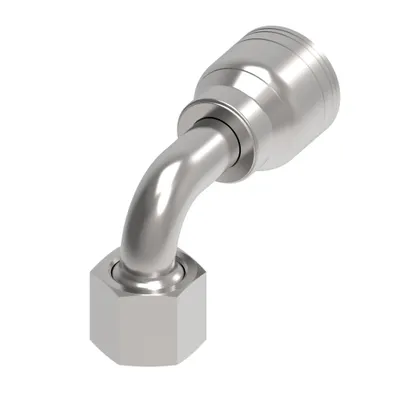

| 1A25ADB16 | 4.310 | 109.500 | 75.100 | 5.216 | 132.500 |

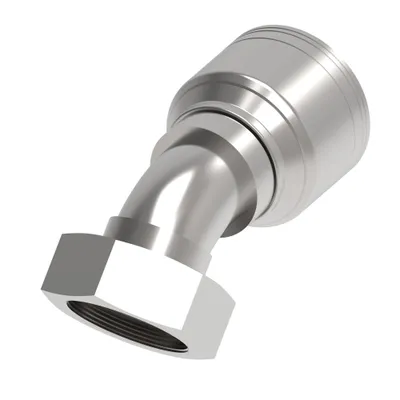

| 1A25ADA16 | 4.290 | 108.900 | 74.500 | 5.330 | 135.382 |

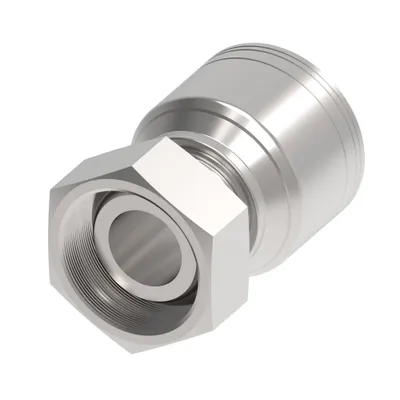

| 1A25AD16 | 2.590 | 65.800 | 31.400 | 2.590 | 65.786 |

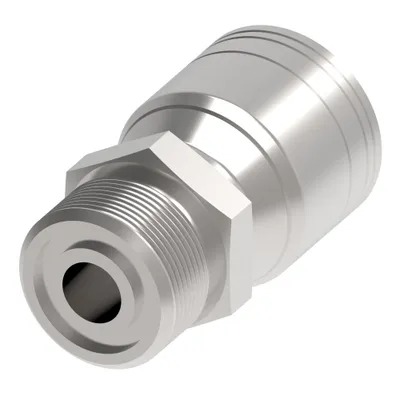

| 1A24MR20 | 3.420 | 86.800 | 47.244 | 3.450 | 87.630 |

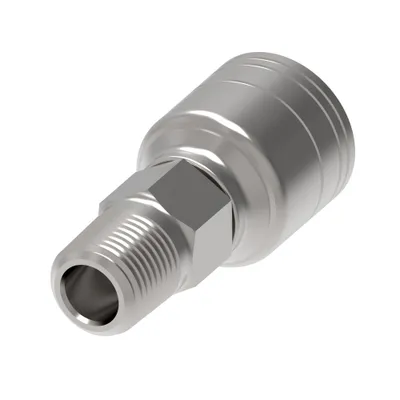

| 1A24MP24 | 4.080 | 103.700 | 60.000 | 4.083 | 103.700 |
| 1A24FR24 | 4.110 | 104.400 | 60.400 | 4.710 | 119.634 |

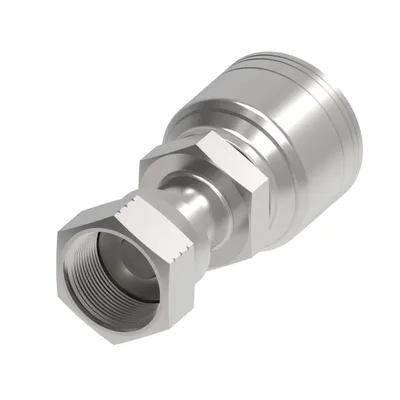

| 1A24FR20 | 3.700 | 94.100 | 54.600 | 4.280 | 108.712 |
Common to all listed parts
| Construction Style | Crimp |
| Series | 1A/Z Series |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -46 |
| Working temperature min F | -50 |
