Braided hose and fittings Parts

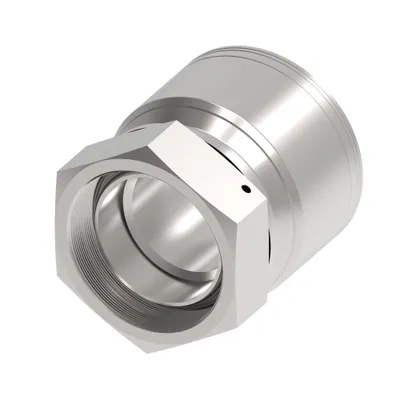

Danfoss

1A50AD32

HOSE FTG, 1A/32, AD/50, CS, STR

Danfoss

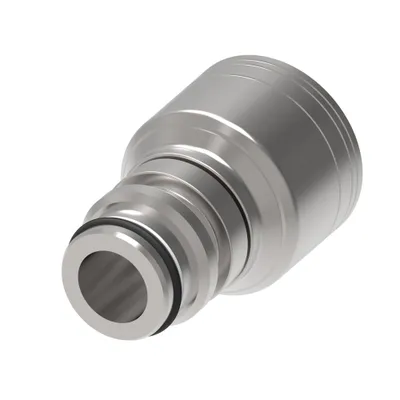

1A4SL4

HOSE FTG, 1A/04, STLOK-M/04, CS, STR

Danfoss

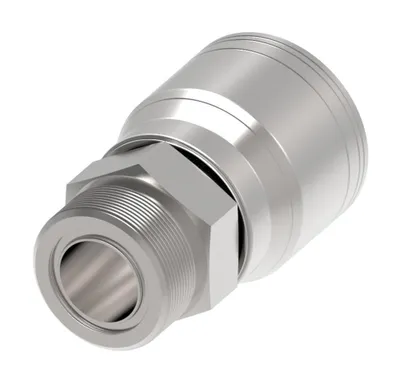

1A4MR4

HOSE FTG, 1A/04, ORS-M/04, CS, STR

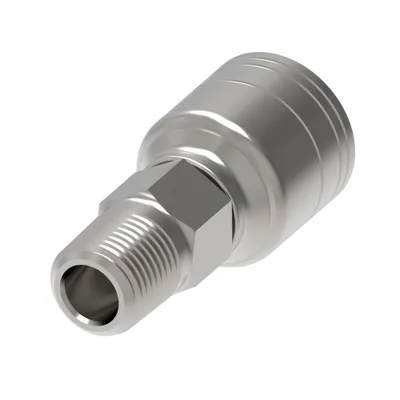

Danfoss

1A4MP6

HOSE FTG, 1A/06, NPTF-M/04, CS, STR

Danfoss

1A4MP4

HOSE FTG, 1A/04, NPTF-M/04, CS, STR

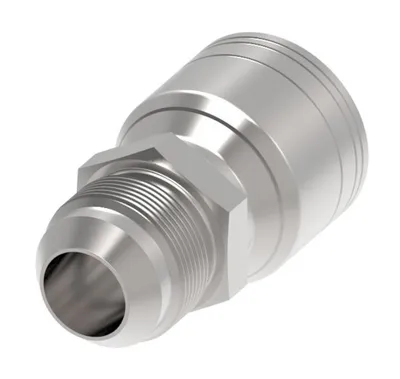

Danfoss

1A4MJ4

HOSE FTG, 1A/04, JIC-M/04, CS, STR

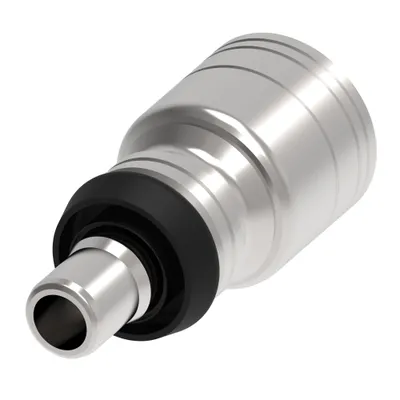

Danfoss

1A4MC4

HOSE FTG, 1A/04, STC-M/04, CS, STR

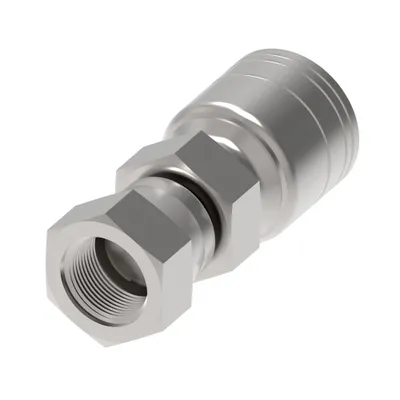

Danfoss

1A4KF4

HOSE FTG, 1A/04, KSF/04, CS, STR

Danfoss

1A4JM4

HOSE FTG, 1A/04, JIS-M/04, CS, STR

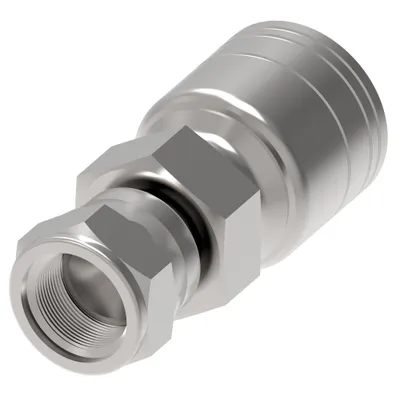

Danfoss

1A4JF4

HOSE FTG, 1A/04, KSF/04, CS, STR

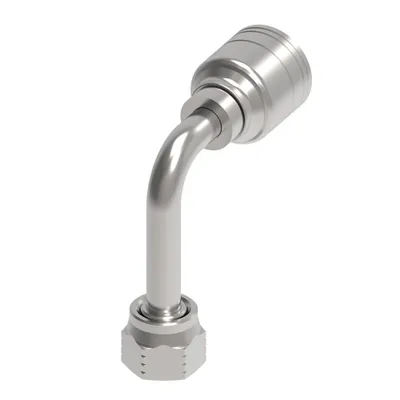

Danfoss

1A4FRC4

HOSE FTG, 1A/04, ORS-F/04, CS, 90D

Danfoss

1A4FRB6

HOSE FTG, 1A/06, ORS-F/04, CS, 90D

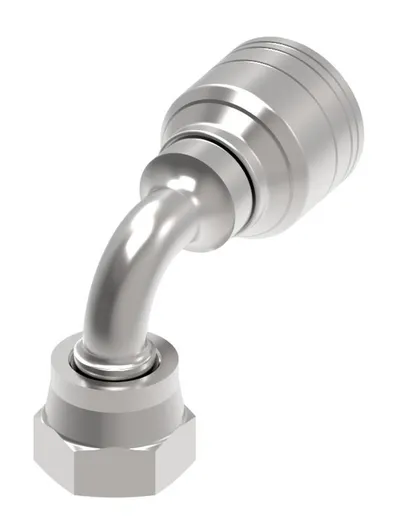

Danfoss

1A4FRB4

HOSE FTG, 1A/04, ORS-F/04, CS, 90D

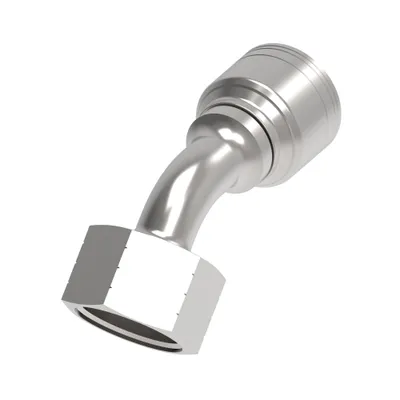

Danfoss

1A4FRA6

HOSE FTG, 1A/06, ORS-F/04, CS, 45D

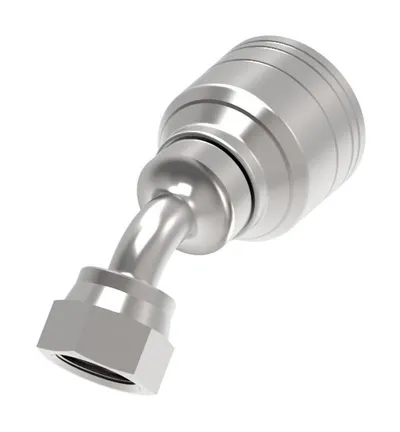

Danfoss

1A4FRA4

HOSE FTG, 1A/04, ORS-F/04, CS, 45D

Danfoss

1A4FR6

HOSE FTG, 1A/06, ORS-F/04, CS, STR

Danfoss

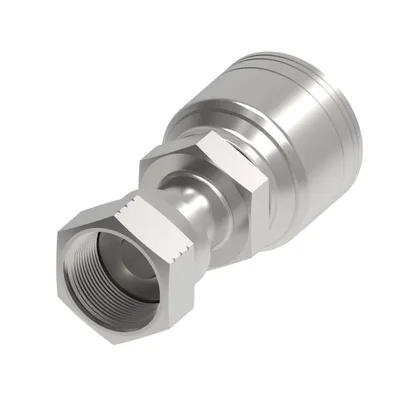

1A4FR4

HOSE FTG, 1A/04, ORS-F/04, CS, STR

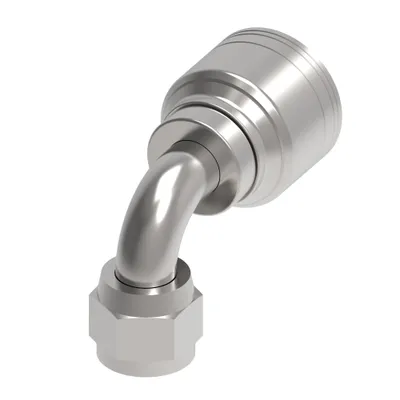

Danfoss

1A4FJB4

HOSE FTG, 1A/04, JIC-F/04, CS, 90D

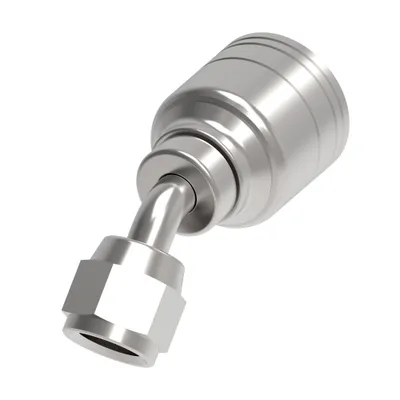

Danfoss

1A4FJA4

HOSE FTG, 1A/04, JIC-F/04, CS, 45D

Danfoss

1A4FJ6

HOSE FTG, 1A/06, JIC-F/04, CS, STR

Danfoss

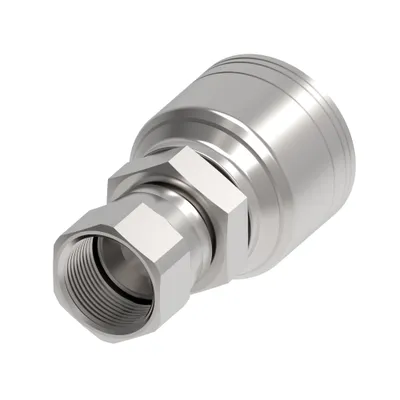

1A4FJ5

HOSE FTG, 1A/05, JIC-F/04, CS, STR

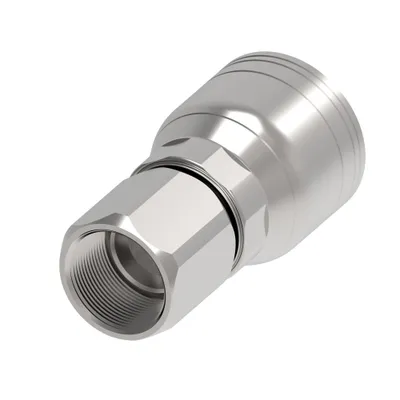

Danfoss

1A4FJ4

HOSE FTG, 1A/04, JIC-F/04, CS, STR

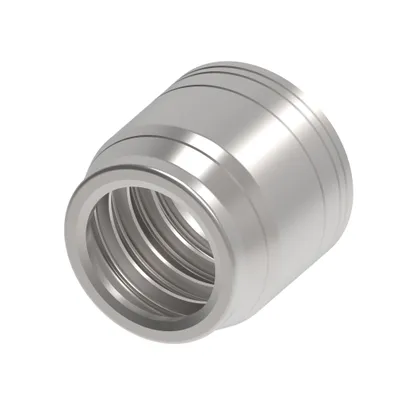

Danfoss

1A4C

SOCKET-PERM, 1A/04, AP

Danfoss

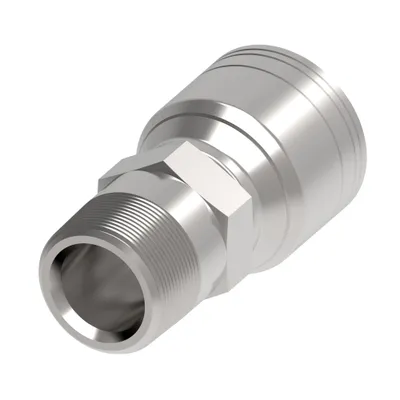

1A4BT4

HOSE FTG, 1A/04, BSPT-M/04, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A50AD32	3.260	82.900	30.700	3.795	96.393
1A4SL4	2.050	52.100	31.900	2.180	55.372
1A4MR4	1.650	42.000	21.800	1.654	42.000
1A4MP6	2.020	51.400	30.100	2.024	51.400
1A4MP4	1.930	49.100	28.900	1.933	49.100
1A4MJ4	1.870	47.500	27.300	1.870	47.500
1A4MC4	1.830	46.500	26.500	1.960	49.784
1A4KF4	2.080	52.900	32.700	2.210	56.134
1A4JM4	1.850	47.000	23.600	1.850	46.990
1A4JF4	2.090	53.000	32.800	2.200	55.880
1A4FRC4	1.950	49.500	29.300	2.410	61.200
1A4FRB6	2.050	52.100	30.734	2.380	60.452
1A4FRB4	1.760	44.700	23.300	2.420	61.468
1A4FRA6	2.140	54.400	33.100	2.900	73.660
1A4FRA4	1.990	50.600	30.400	2.780	70.600
1A4FR6	1.980	50.400	29.210	2.310	58.674
1A4FR4	1.820	46.300	26.100	2.276	57.800
1A4FJB4	1.710	43.500	23.300	2.100	53.340
1A4FJA4	1.690	41.900	21.700	2.430	61.722
1A4FJ6	2.030	51.600	30.300	2.187	55.550
1A4FJ5	1.940	49.200	27.600	1.937	49.200
1A4FJ4	1.920	48.800	27.300	2.040	51.816
1A4C	0.949	24.100	—	0.949	24.105
1A4BT4	1.990	50.600	27.200	1.990	50.546

Common to all listed parts

Construction Style	Crimp
Finish plating	Dura-Kote
Series	1A/Z Series
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-46
Working temperature min F	-50
