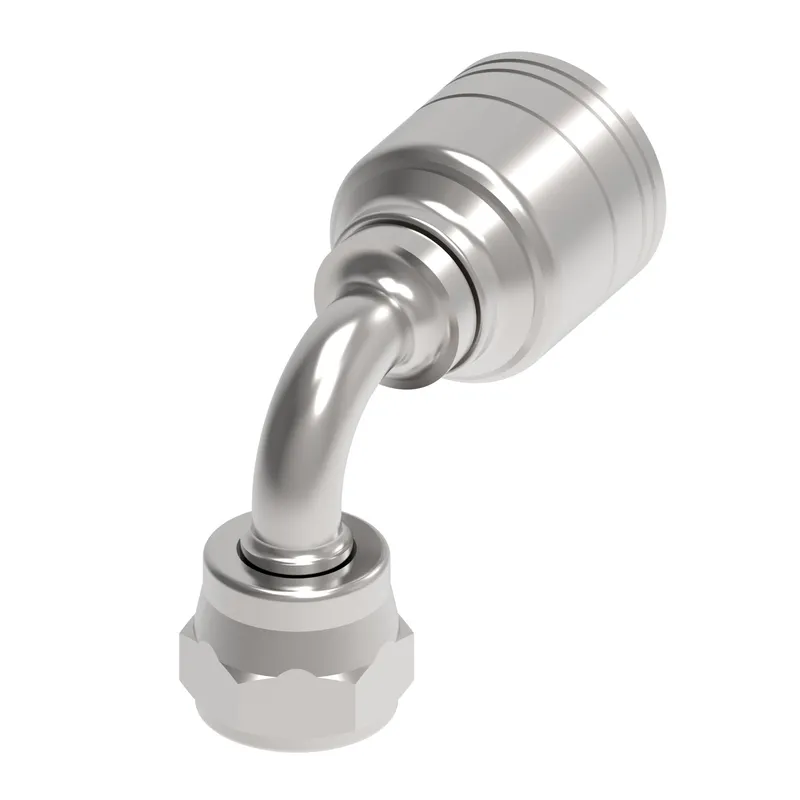

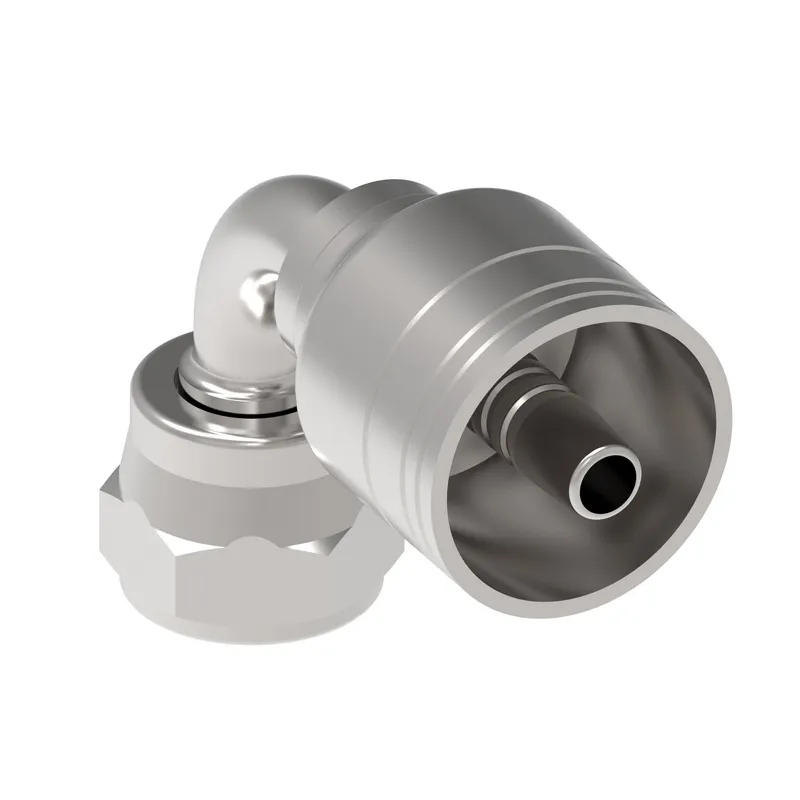

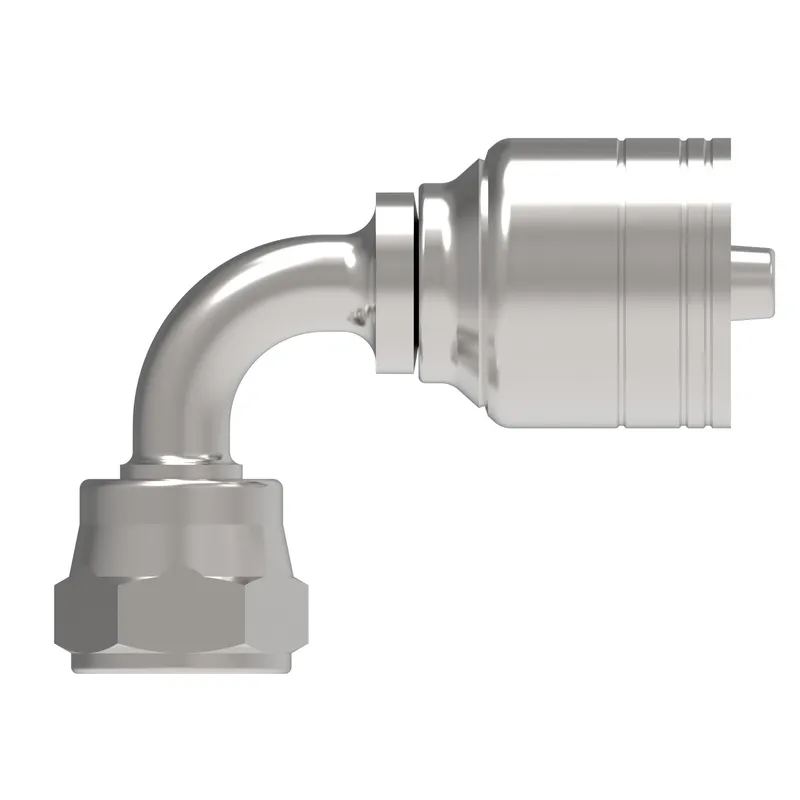

HOSE FTG, 1A/04, BF/04, CS, 90D

Name: HOSE FTG, 1A/04, BF/04, CS, 90D
Brand: Danfoss (Drives)
SKU: 1A4BFB4

MPN: 1A4BFB4 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1A4BFB4 be shipped?

1A4BFB4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A4BFB4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A4BFB4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A4BFB4, subject to availability and destination.

Danfoss HOSE FTG, 1A/04, BF/04, CS, 90D, manufacturer part number 1A4BFB4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146124326
A dimension IN	1.800
A dimension MM	45.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Construction Style	Crimp
Drop dimension IN	0.980
Drop dimension MM	24.80
End connection torque	19-23 lb-ft(25-30 Nm)
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hose cut off factor IN	0.880
Hose cut off factor MM	22.400
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.420
Product height mm	36.068
Product length in	2.130
Product length mm	54.102
Product material	Carbon steel
Product width in	0.882
Product width mm	22.403
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1/4
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350
Working pressure max BAR	450
Working pressure max PSI	6550
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-46
Working temperature min F	-50
