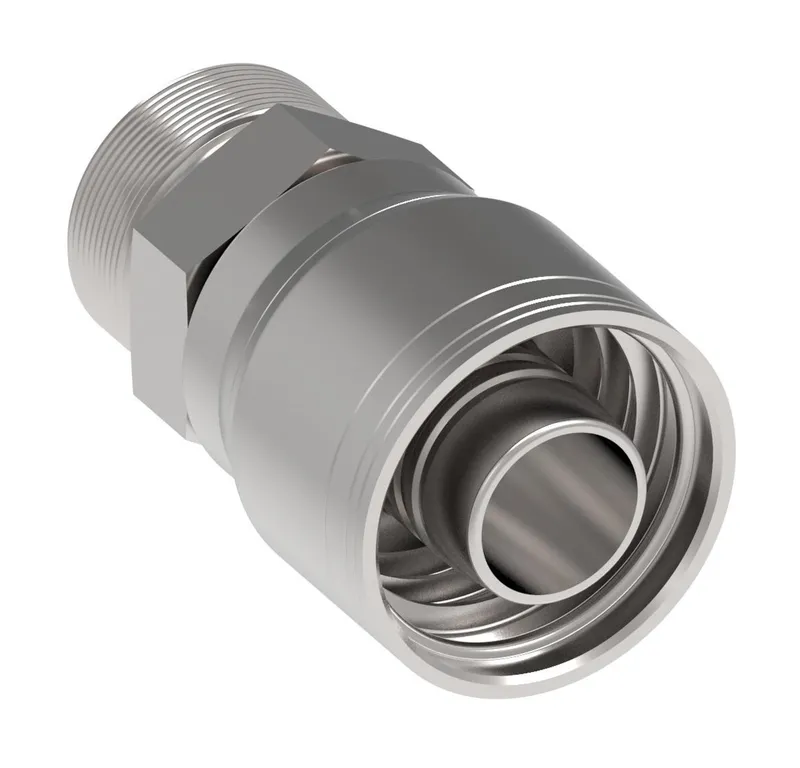

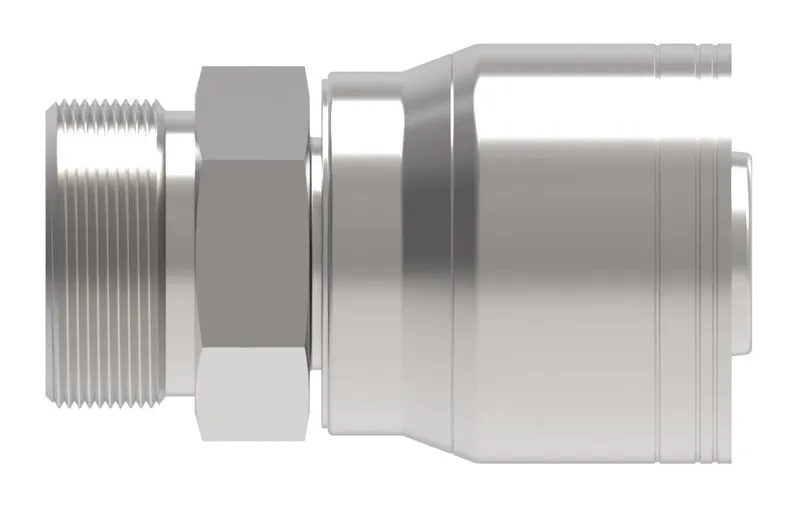

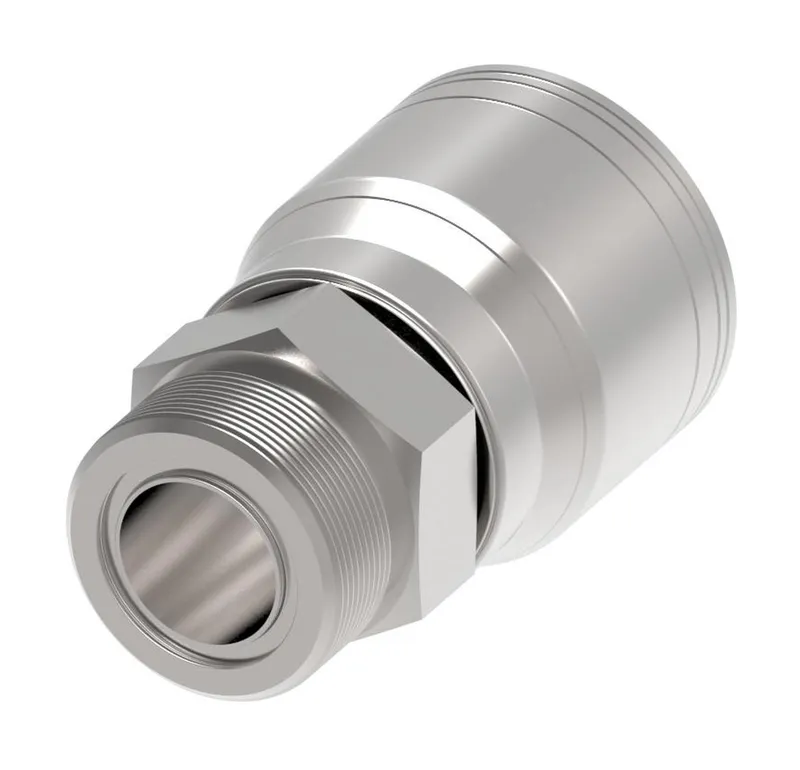

Danfoss 1AA8MR8

HOSE FTG, 1A/08, ORS-M/08, CS, STR

MPN: 1AA8MR8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA8MR8?

Danfoss HOSE FTG, 1A/08, ORS-M/08, CS, STR, manufacturer part number 1AA8MR8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127983
A dimension IN	2.470
A dimension MM	62.600
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 2 MM	21.000
Hose cut off factor IN	1.340
Hose cut off factor MM	32.900
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.220
Product height mm	30.988
Product length in	2.660
Product length mm	67.564
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Series	1A/Z Series
Thread size 1	13/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA8MR8: frequently asked questions

When can 1AA8MR8 be shipped?

1AA8MR8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA8MR8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA8MR8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA8MR8, subject to availability and destination.
