Danfoss 1AA8MR6

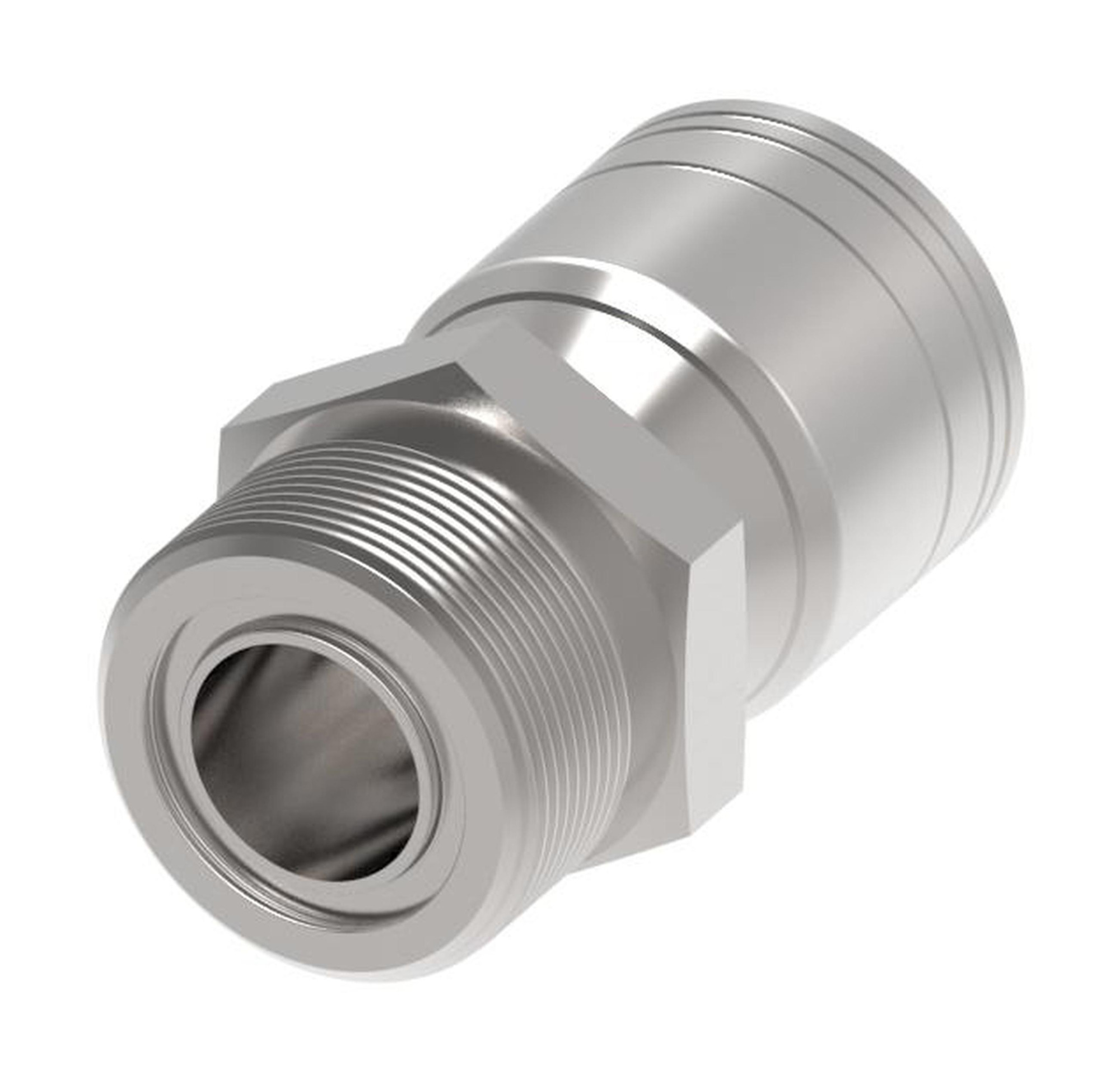

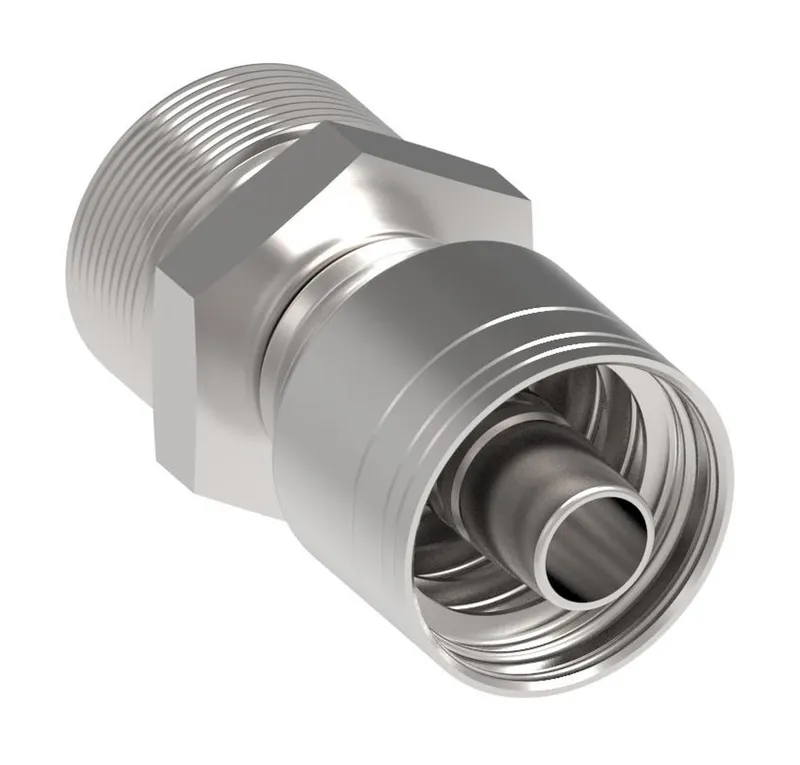

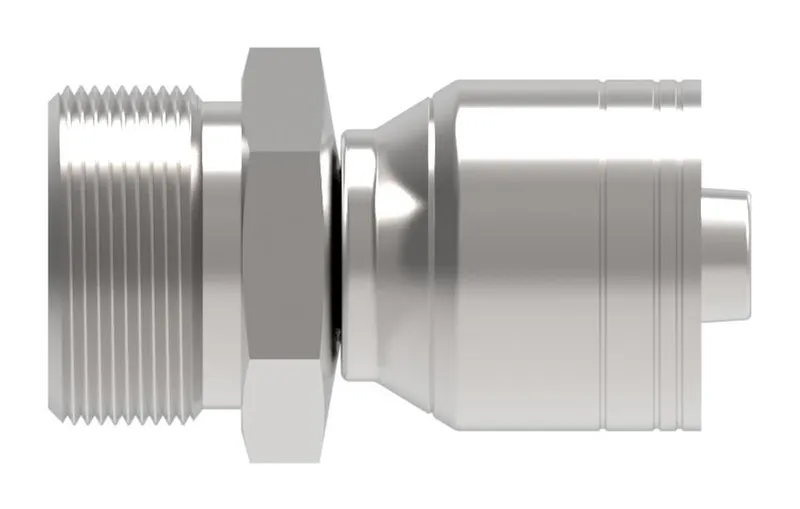

HOSE FTG, 1A/06, ORS-M/08, CS, STR

MPN: 1AA8MR6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA8MR6?

Danfoss HOSE FTG, 1A/06, ORS-M/08, CS, STR, manufacturer part number 1AA8MR6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127976
A dimension IN	1.800
A dimension MM	45.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.826
Hex size 2 MM	21.000
Hose cut off factor IN	0.950
Hose cut off factor MM	24.200
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.070
Product height mm	27.178
Product length in	1.950
Product length mm	49.530
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	13/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
