Danfoss 1AP32DK20

HOSE FTG, 1A/20, DKL-M/32, CS, STR

MPN: 1AP32DK20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AP32DK20?

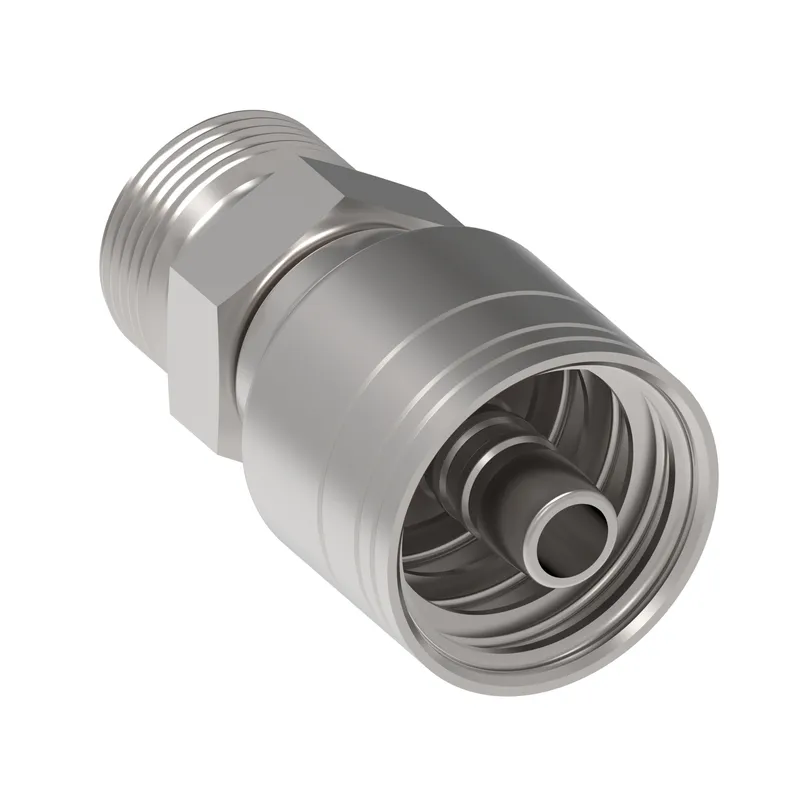

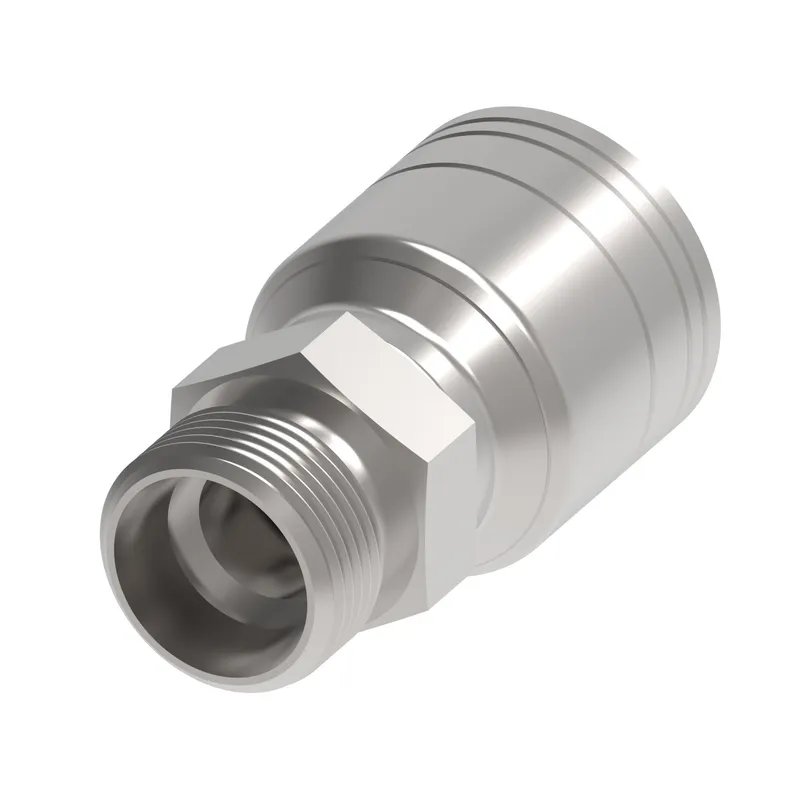

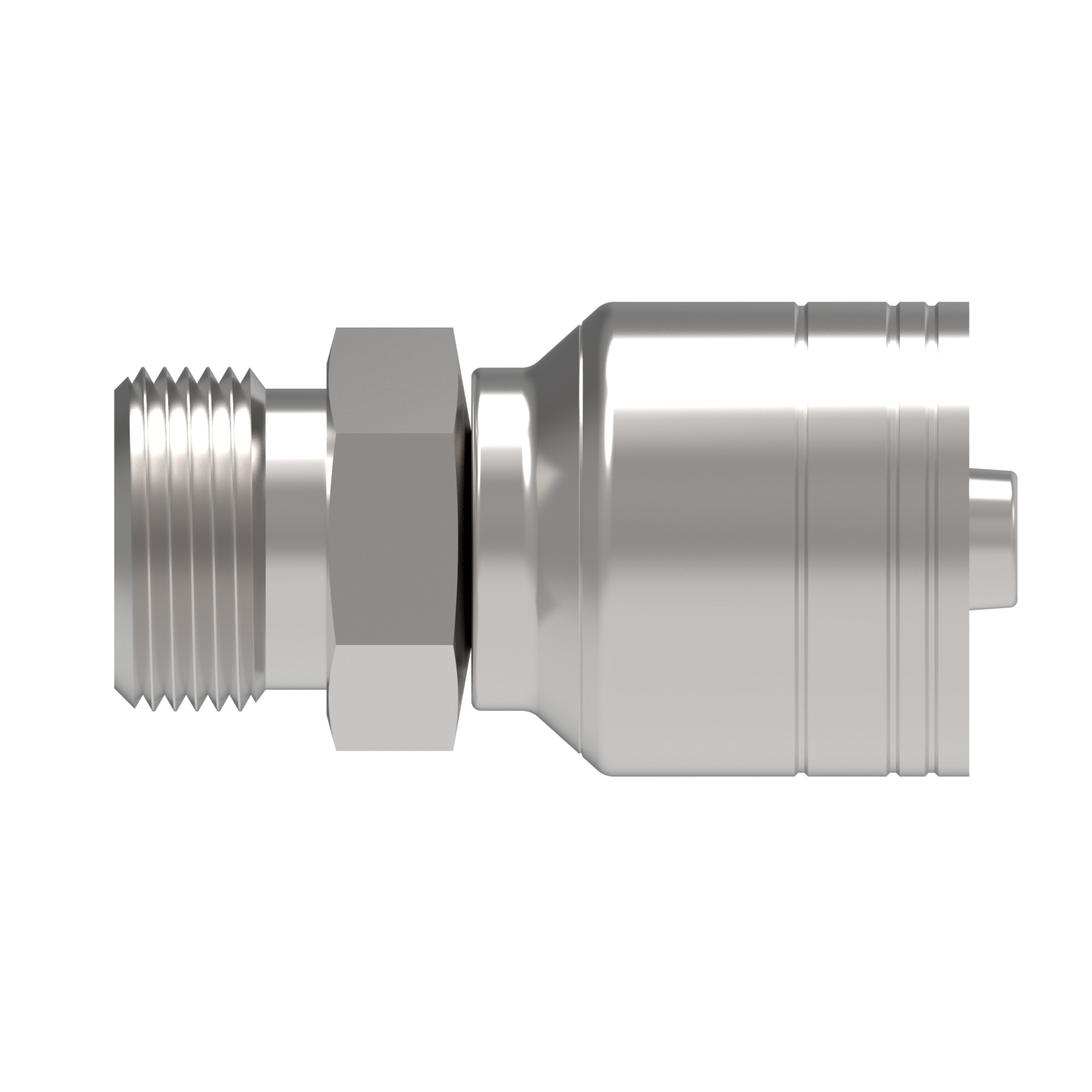

Danfoss HOSE FTG, 1A/20, DKL-M/32, CS, STR, manufacturer part number 1AP32DK20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.120
A dimension MM	79.400
Angle shape	Straight
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-32
End Type 1	24 deg. tube port light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.810
Hex size 1 MM	45.974
Hose cut off factor IN	1.390
Hose cut off factor MM	35.400
Hose size	-20
Inside diameter IN	1.040
Inside diameter MM	26.600
Product height in	2.120
Product height mm	53.848
Product length in	3.130
Product length mm	79.502
Product material	Carbon steel
Product width in	2.120
Product width mm	53.848
Series	1A/Z Series
Thread sealant	No
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
