Modicon X80 modules Parts
Schneider Electric
BMXERT1604HMultifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement
Schneider Electric
BMXEAE0300HSSI encoder interface module - 3 channels - up to 31 data bits / 1 Mbauds
Schneider Electric

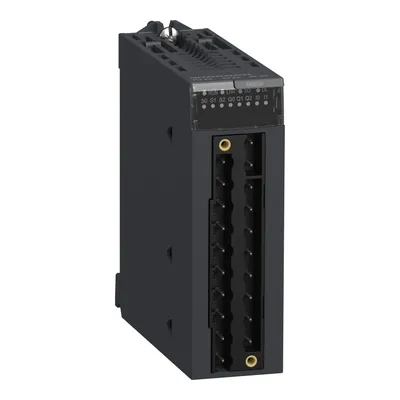

BMXEAE0300SSI encoder interface module - 3 channels - up to 31 data bits / 1 Mbauds
Schneider Electric

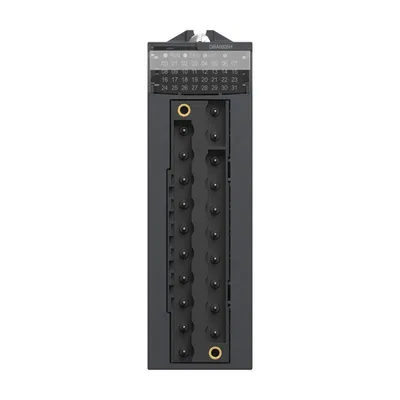

BMXDRA0805HDiscrete output module X80 - 8 O relay - 24..240 V AC - for severe environments
Schneider Electric

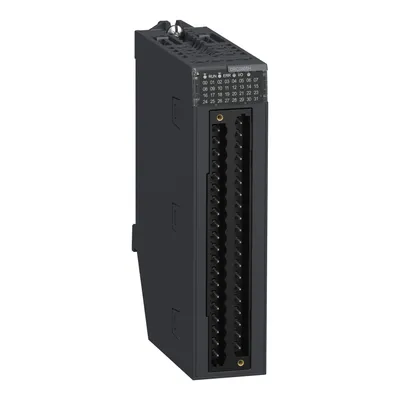

BMXDRC0805HDiscrete module X80 - 8 NO/NC Type C - Isolated relays - 125 V DC/250 V AC - sev
Schneider Electric

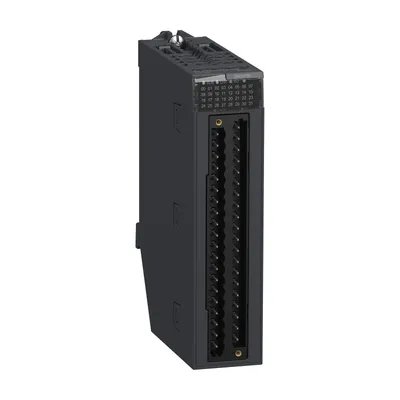

BMXDAO1615HDiscrete output X80 - 16 channel isolated triac - 24..240 V AC - severe
Schneider Electric
BMXDAI1614HDiscrete input X80 - 16 channel isolated supervised - 100..120 V AC - severe
Schneider Electric
BMXDAI1615HDiscrete input X80 - 16 channel isolated supervised - 200..240 V AC - severe
Schneider Electric

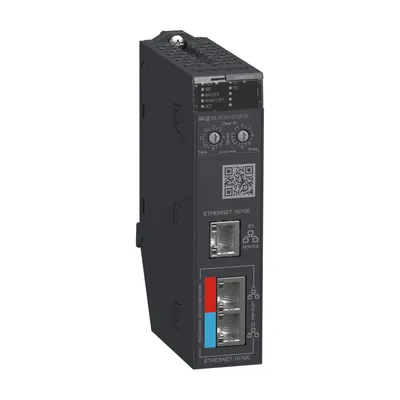

BMECRA31310HModicon X80 RIO Harsh Environment Drop redundant communication adapter PRP
Compare Modicon X80 modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net weight | Product or component type | Relative humidity | Protective treatment |
|---|---|---|---|---|

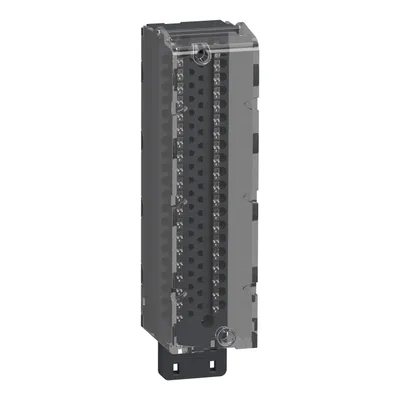

| BMXFTB4020H | 0.12 kg | — | — | — |

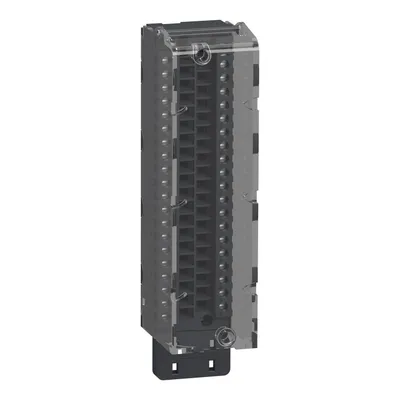

| BMXFTB4000H | 0.19 kg | — | — | — |
| BMXFCC501 | 1.39 kg | — | — | — |
| BMXFCC201 | 0.56 kg | — | — | — |
| BMXFCC1001 | 2.78 kg | — | — | — |
| BMXFCC101 | 0.195 kg | — | — | — |
| BMXFCC051 | 0.14 kg | — | — | — |

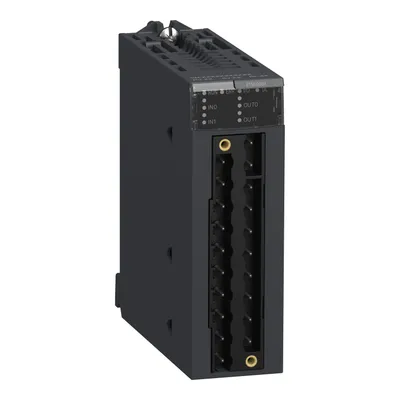

| BMXETM0200H | 0.124 kg | Frequency module | 10…95 % without condensation | Conformal coating |
| BMXERT1604H | — | Multifunction input module | 95 % without condensation | Conformal coating |
| BMXEAE0300H | 0.138 kg | Encoder interface module | — | Conformal coating |
| BMXEAE0300 | 0.138 kg | Encoder interface module | — | — |
| BMXDRA0805H | 0.145 kg | Discrete output module | 5…95 % at 55 °C without condensation | Conformal coating |
| BMXDRC0805H | 0.189 kg | Relay discrete output module | 5…95 % at -25…70 °C without condensation | Conformal coating |
| BMXDAO1615H | 0.264 kg | Discrete output module | 5…95 % at -25…70 °C without condensation | Conformal coating |
| BMXDRA0805 | 0.145 kg | Discrete output module | 5…95 % at 55 °C without condensation | Standard version |

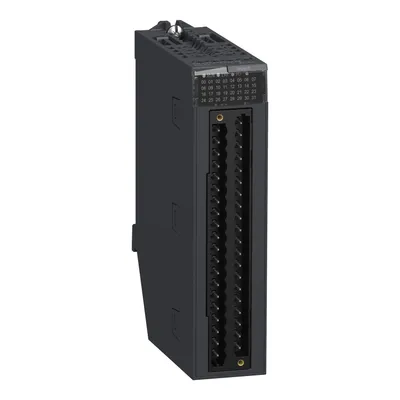

| BMXDAI1615 | 0.157 kg | Discrete input module | 5…95 % at 0…60 °C without condensation | Standard version |
| BMXDAI1614H | 0.157 kg | Discrete input module | 5…95 % at -25…70 °C without condensation | Conformal coating |
| BMXDAI1615H | 0.157 kg | Discrete input module | 5…95 % at -25…70 °C without condensation | Conformal coating |

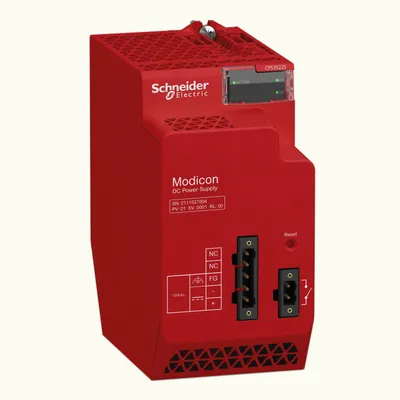

| BMXCPS3522S | 0.64 kg | Power supply module | 5…95 % at 55 °C without condensation | Conformal coating |
| BMXDAI1614 | 0.157 kg | Discrete input module | 5…95 % at 0…60 °C without condensation | Standard version |

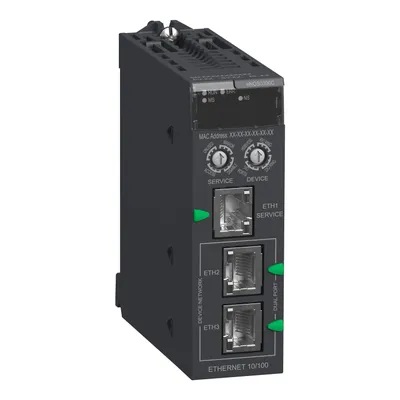

| BMENOS0300C | — | Switch module | 95 % without condensation | Conformal coating |
| BMECRA31310H | 0.396 kg | Ethernet I/O head module | 95 % without condensation | Conformal coating |

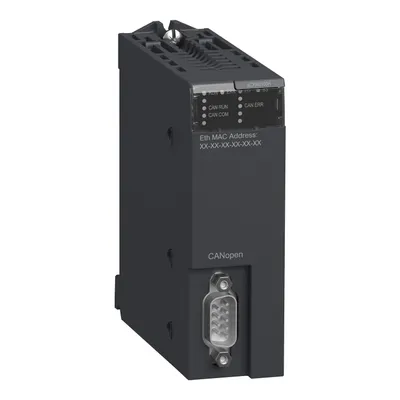

| BMECXM0100H | — | CANopen communication module | 10…95 % | Conformal coating |
Common to all listed parts
| Range of product | Modicon X80 |
