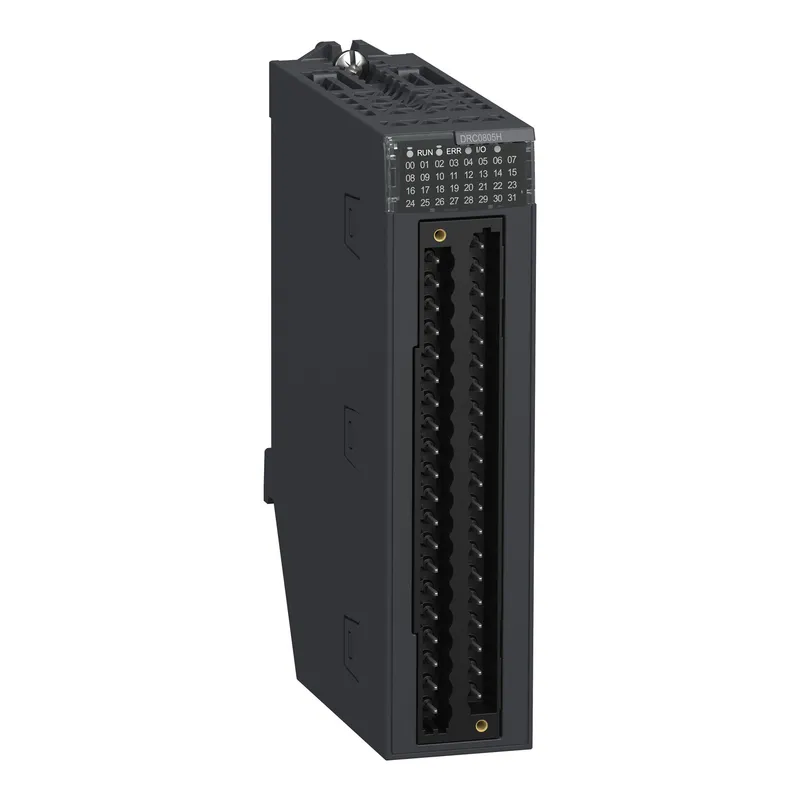

Schneider Electric BMXDRC0805H – discrete module X80 - 8 NO/NC Type C - Isolated relays - 125 V DC/250 V AC - sev

MPN: BMXDRC0805H · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon X80 modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606489485078
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BMXDRC0805H be shipped?

BMXDRC0805H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXDRC0805H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXDRC0805H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDRC0805H, subject to availability and destination.

"This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 8 normally open and normally close isolated relay outputs, and it is supplied with 24 to 240V AC/24 to 125V DC." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 2774309 hours of MTBF." "This discrete module has a weight of 0.189kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon X80
Product or component type	Relay discrete output module
Discrete output logic	Positive or negative

Complementary

Minimum switching current	10 mA 5 V DC
Response time on output	<= 10 ms activation; <= 13 ms deactivation
Insulation resistance	> 10 MOhm 500 V DC
MTBF reliability	2650000 H
Protection type	External short-circuit protection; External overload protection; External overvoltage protection, inductive AC network; External overvoltage protection, inductive DC network
Net weight	0.189 kg

Environment

IP degree of protection	IP20
Protective treatment	Conformal coating
Dielectric strength	1780 V AC at 50/60 Hz 1 min
Relative humidity	5…95 % at -25…70 °C without condensation
Environmental characteristic	Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2
