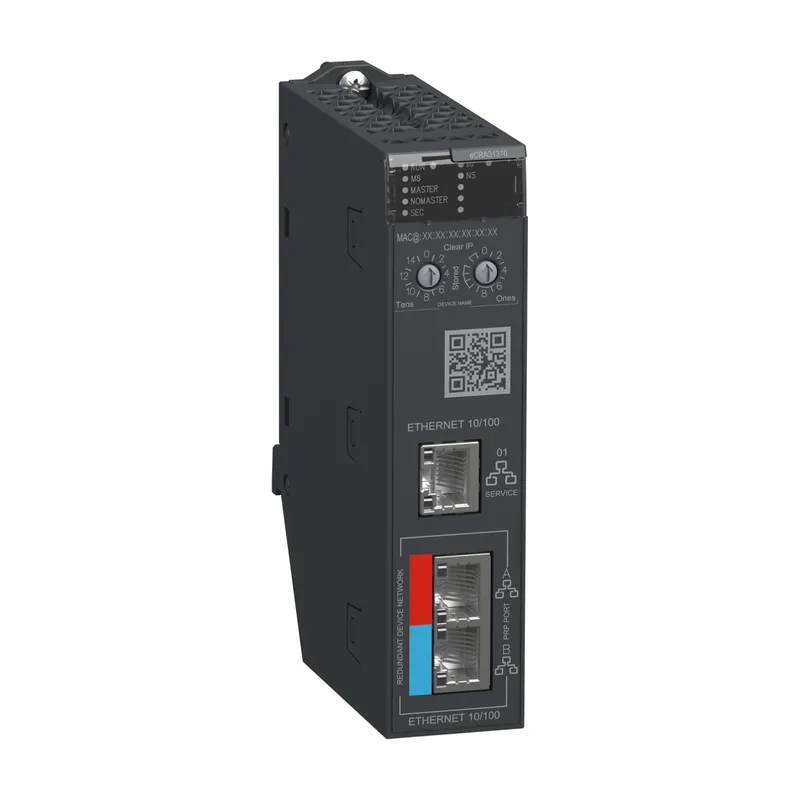

Schneider Electric BMECRA31310H
Modicon X80 RIO Harsh Environment Drop redundant communication adapter PRP
- MPN
- BMECRA31310H
- EAN
- 3606482184152
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMECRA31310H?
This redundant CRA module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This Ethernet Remote Input Output (RIO) drop adaptor is equipped with 3 Ethernet ports on front panel, 1 service port (ETH1) and 2 PRP ports for redundant device network (LAN A and LAN B). Its casing provides IP20 protection of the electronics and offers 981900 hours of MTBF. This module has a grey color, and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This adaptor is compatible with Modicon M580 BMEP58XX40 and BMEH58XX40 CPUs and large range of in rack modules like, multifunction input module BMXERT, Serial link module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels, HART module BMEAH•••. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon X80 |
| Range compatibility | Modicon M580 |
| Product or component type | Ethernet I/O head module |
| Device application | X80 Ethernet RIO drop adaptor |
| Product specific application | For remote I/O modules |
Complementary
| Bus type | Bus X across the remote backplane; Ethernet across the remote backplane |
| Number of port | 3 |
| Integrated connection type | 1 port for service or distributed equipment; 1 port for Ethernet Redundant RIO Network (PRP Lan A); 1 port for Ethernet Redundant RIO Network (PRP Lan B) |
| Communication network type | IPv4 (internet protocol) |
| Communication port protocol | EtherNet/IP over PRP |
| Communication service | Ethernet/IP adapter; Ethernet Redundant RIO network; Quality of Service (QoS); CIP Explicit messaging (server); Modbus TCP server for module diagnostics; DHCP client; TFTP client; FTP client; FDR client; NTP v4 client; SNMP v3 agent |
| Cybersecurity | Enable/disable communication ports; Syslog protocol support; Firmware signature; Secure firmware upgrade through HTTPS |
| Connector type | 3 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function available | CCOTF (configuration change on the fly); Input data is collected and published to the remote I/O head adaptor; Output modules are updated with the data received from remote I/O head adaptor; Diagnostics for remote I/O devices (Device DDT); Port mirroring; System time stamping; Module redundancy; Hot swap; Use module in simlex or redundant mode; I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Tree-structure; Star; Ring |
| Local signalling | 1 LED (green) for module active (RUN); 1 LED (red) for module error (ERR); 1 LED (green/red) for module status (Mod Status); 1 LED (green/red) for network communication status (Net Status); 1 LED (green) for Ethernet link diagnostics (STS); 1 LED (green) for module redundancy role Master (MASTER); 1 LED (green) for module redundancy role Not Master (NOMASTER) |
| Current consumption | 155 mA |
| Input voltage | 24 V DC |
| Product compatibility | 0…1024 discrete channel; 0…256 analog channel; counter module; time-stamping module; SSI encoder interface module; frequency input module; AS-Interface module; serial link module; fiber converter modules; HART module; weighing module; CANopen master module (standalone CPU only); PROFIBUS module (standalone CPU only) |
| Net weight | 0.396 kg |
| Maximum altitude transport | 3000 m |
| Relative humidity | 95 % without condensation |
| fixing mode | By screws |
| Mounting mode | Rack-mounted |
| Width | 32 mm |
| Height | 131 mm |
| Depth | 86.05 mm |
Environment
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive |
| Product certifications | CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22; Hazardous location class 1, division 2 |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0; UL 121201; CSA C22.2 No 213 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m; 2000 m...5000 m with derating factor |
