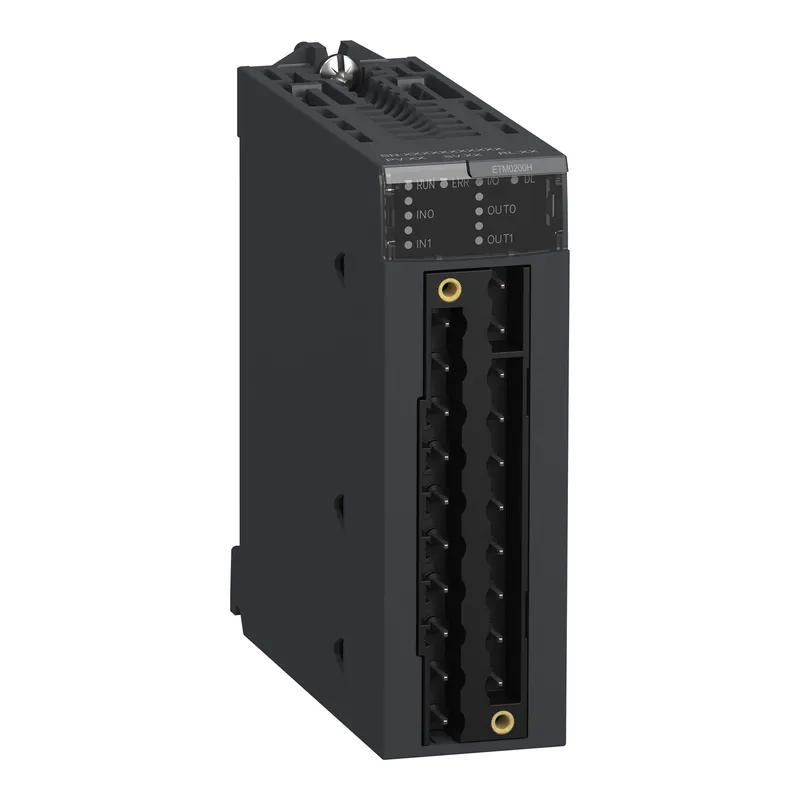

Schneider Electric BMXETM0200H – Harshed Turbomachinery Frequency Input 2 channels

MPN: BMXETM0200H · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon X80 modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3606480915765
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BMXETM0200H be shipped?

BMXETM0200H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXETM0200H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXETM0200H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXETM0200H, subject to availability and destination.

"This turbonmachinery frequency input module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "The BMXETM0200H frequency input module offers turbine shaft and engine speed monitoring functionality for general purpose turbomachinery control applications." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This frequency module for turbo machine is equipped with 2 discrete inputs and 2 reflex digital outputs." "Its casing provides IP20 protection of the electronics." "This module has a weight of 0.124kg." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "This adaptor is compatible with Modicon M580 BMEP58XX40(S), Modicon M580 BMEH58XX40(S) and Quantum processor." "The product must be installed on the rack and fixed with 2 screws." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon X80
Product or component type	Frequency module
Product destination	Turbo machine
Product compatibility	M340 PLC; M580 PLC
Device application	Speed and frequency control
Number of channels	2
Input frequency	0…500 kHz
Type of measurement	Frequency
Function available	Compare
Number of inputs	2 (MPU); 2 (APU)
Input compatibility	19.2…30 V incremental encoder; active pick-up sensor, 10...30 V totem pole; magnetic pick-up sensor
Number of outputs	2

Complementary

Output type	Reflex digital output
Cycle time	1 ms
Isolation voltage	1400 V DC for 1 min field/bus or ground; 1000 V DC for 1 min differential interfaces; 1000 V DC for 1 min input/output
Input type	High speed
Input voltage	24 V DC; 100 V AC
Input voltage limits	19.2...30 V at 60 °C; 26.4 V at 70 °C
Voltage state 1 guaranteed	MPU: 0.3...100 V AC; APU: 2.5...30 V DC
Voltage state 0 guaranteed	< 0.3 V
Discrete output logic	Positive logic (source)
Output voltage	24 V DC
Output voltage limits	19.2...30 V
Maximum load current	1 A per module; 0.5 A per output
Maximum leakage current	0.1 mA at state 0
Maximum voltage drop	<3 V at state 1
Output overload protection	Integrated
Output short-circuit protection	1.5 A integrated
Overlap time	0.2 ms
Electrical connection	Connector with 28 pins
Current consumption	<= 200 mA at 3.3 V DC bus; <= 30 mA at 24 V DC sensor
Module format	Standard
Net weight	0.124 kg

Environment

Ambient air temperature for operation	-25…70 °C
Relative humidity	10…95 % without condensation
IP degree of protection	IP20
Protective treatment	Conformal coating
Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive
Product certifications	CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22
Standards	IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3; Hazardous location class I division 2
