BMXDDO6402KDiscrete output module, Modicon X80, 64 transistor outputs, 24V DC positive

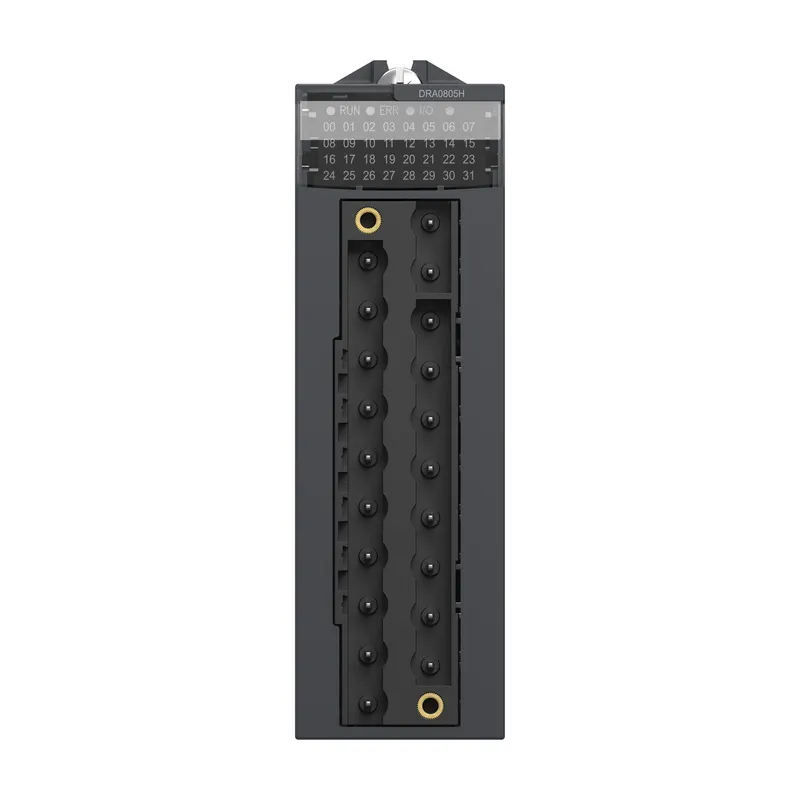

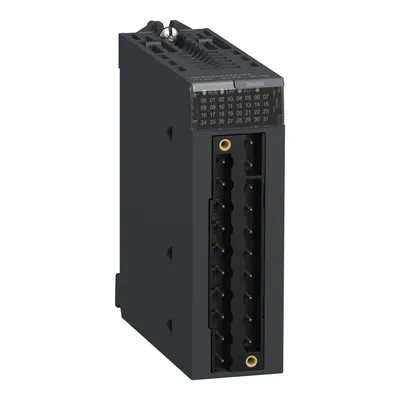

Schneider Electric BMXDRA0805H
Discrete output module X80 - 8 O relay - 24..240 V AC - for severe environments
- MPN
- BMXDRA0805H
- EAN
- 3595864027869
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BMXDRA0805H (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMXDRA0805H?
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Discontinued by Schneider Electric; the manufacturer's successor is BMXDRA0815H. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output logic | Positive |
Complementary
| Minimum switching current | 10 mA 5 V DC |
| Response time on output | < 10 ms activation; < 8 ms deactivation |
| Insulation resistance | > 10 MOhm 500 V DC |
| MTBF reliability | 2119902 H |
| Net weight | 0.145 kg |
Environment
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Environmental characteristic | Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMXDRA0805H: frequently asked questions
Can I still buy the BMXDRA0805H now that it is discontinued?
Yes. Schneider Electric has discontinued the BMXDRA0805H, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDRA0815H as its successor — we can quote both.
When can BMXDRA0805H be shipped?
BMXDRA0805H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXDRA0805H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXDRA0805H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDRA0805H, subject to availability and destination.
