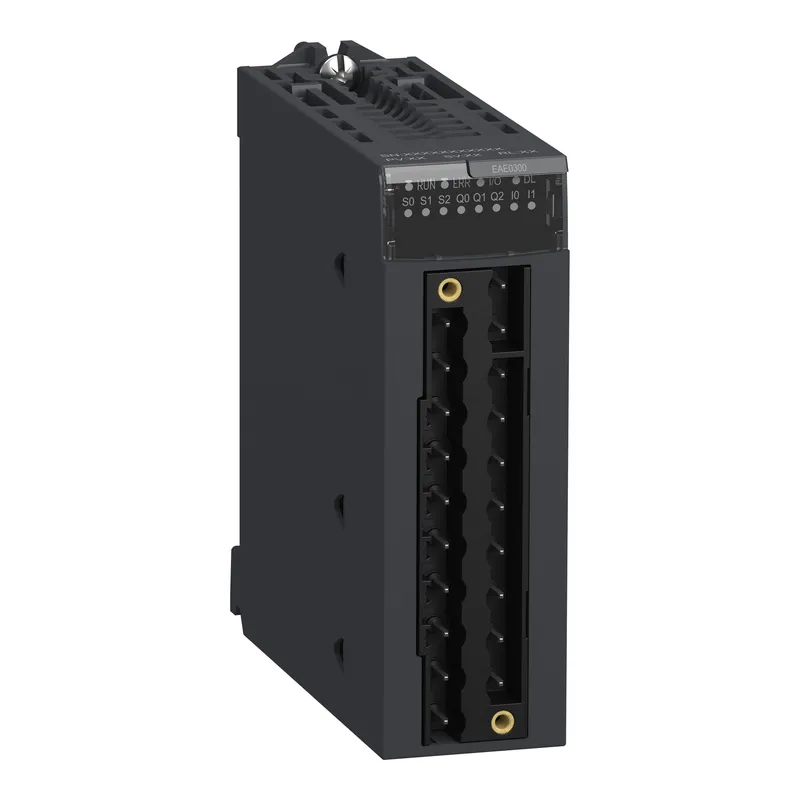

Schneider Electric BMXEAE0300 – SSI encoder interface module - 3 channels - up to 31 data bits / 1 Mbauds

MPN: BMXEAE0300 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon X80 modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3595864126685
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BMXEAE0300 be shipped?

BMXEAE0300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXEAE0300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXEAE0300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXEAE0300, subject to availability and destination.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This encoder interface module has 3 SSI channels. It is an encoder interface module with a rated supply voltage of 24V DC, a current consumption of 250mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. Available functions are offset, compare, modulo, reduction and capture. The transmission rate is 500kbauds, 200kbauds, 1Mbauds, 100kbauds and 8bit to 31bit data format. It is an IP20 rated product. It weighs 0.138kg. It is suitable for medium to large process applications. This product is certified by UL, C-Tick, CSA, GOST, ATEX, CSA, CE, FM Class 1 Division 2, CCS. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input is compatible with 24V DC SSI absolute encoder for 200mA per channel. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon X80
Product or component type	Encoder interface module
Function available	Offset; Compare; Modulo; Reduction; Capture
Number of channels	3 SSI channel
Number of outputs	1 24 V DC reflex digital output for each SSI channel
Number of inputs	2 24 V DC capture digital inputs for the 3 SSI channels

Complementary

Data format	8...31 bits
Transmission rate	500 kbauds; 200 kbauds; 1 Mbauds; 100 kbauds
Refresh time	1 ms
Input compatibility	24 V DC SSI absolute encoder (voltage limits: 19.2…30 V) for 200 mA per channel
Dielectric strength	1400 V DC 60 s
[Us] rated supply voltage	19.2...30 V DC, <30 mA; 24 V DC, <30 mA (typical)
Protection type	Overvoltage protection DC
Current consumption	150 mA at 3.3 V DC for back plane, (typical); 250 mA at 3.3 V DC for back plane, (maximum)
Net weight	0.138 kg

Environment

Ambient air temperature for operation	0…60 °C
Operating altitude	0...4000 m
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Product certifications	CE; RCM; CSA; EAC; Merchant Navy; UL
Standards	IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201
