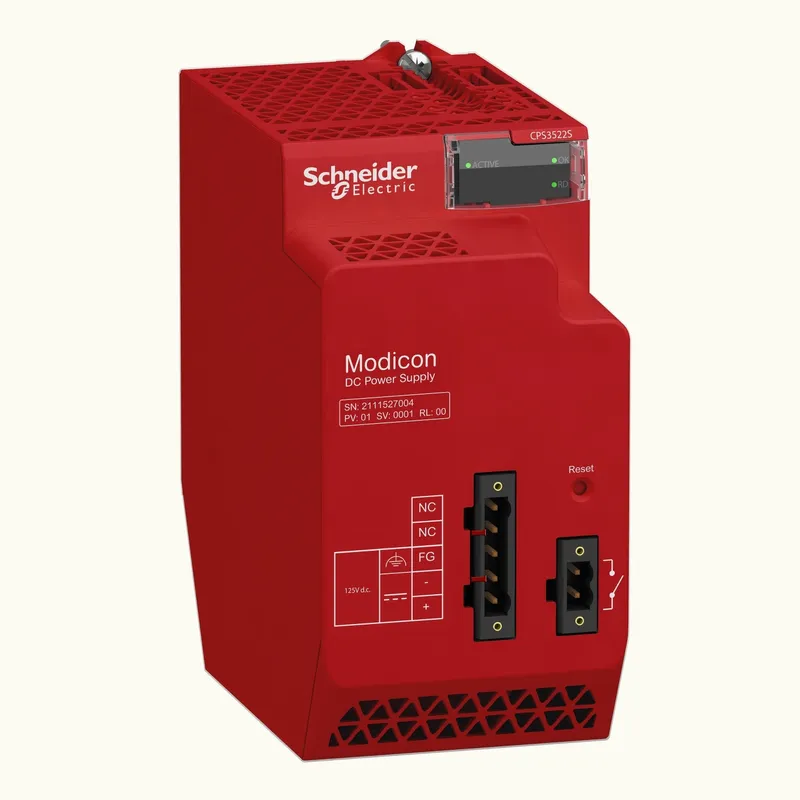

Schneider Electric BMXCPS3522S
Redundant power supply module X80 - 125 V DC - Safety
- MPN
- BMXCPS3522S
- EAN
- 3606489562502
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMXCPS3522S?
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). On the front face of the power supply, 2 connectors (2-way and 5-way) can take a removable terminal block. It converts 100…150 V DC current into 24 V DC and 3.3 V DC output voltages, distributed over the backplane. This safety power supply can provide advanced diagnostics that simplify maintenance by predicting when to replace power supply before it fails. It detects overvoltage, overload, and short-circuit conditions on 24 V DC and 3.3 V DC backplane lines. It can be installed in any rack, main or extended local rack, main or extended remote rack. It has a red coating specific to Safety products. For high-availability applications, two independent redundant power supplies can be used to increase the security of the power supply. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. The safety power supply is compatible with Modicon STB terminal for grounding kit. A set of two caged removable terminal blocks (5-way and 2-way) is included in the power supply package. The power supply has to be inserted in the leftmost dedicated slots on each rack (marked CPS). Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Redundancy information; Redundancy test; Remaining lifetime; Temperature sensing; Uptime duration |
| Primary voltage | 125 V |
| Supply circuit type | DC |
| Secondary power | 18 W 3.3 V DC at -25…60 °C I/O module logic power supply; 40 W 24 V DC at -25…60 °C I/O module power supply and processor if 3.3 V not loaded |
Complementary
| Primary voltage limit | 100...150 V |
| Input current | 600 A 125 V |
| Inrush current | 60 A 125 V |
| I²t on activation | 2.5 A².s 125 V |
| It on activation | 0.09 A.s 125 V |
| MTBF reliability | 791000 H |
| Protection type | Internal fuse not accessible for primary circuit; Overload protection for secondary circuit; Overvoltage protection for secondary circuit; Short-circuit protection for secondary circuit |
| Current at secondary voltage | 1.67 A 24 V DC I/O module logic power supply; 5 A 3.3 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK); 1 LED (green) redundancy OK; 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay; 1 connector 5 pin(s)line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground; >= 100 MOhm primary/secondary |
| Net weight | 0.64 kg |
Environment
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply; 1500 V primary/secondary I/O module power supply and processor; 2300 V primary/secondary sensor power supply; 1500 V primary/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| IP degree of protection | IP20 |
| Directives | 2014/30/EU - electromagnetic compatibility; 2006/42/EC - machinery; 2014/34/EU - ATEX directive |
| Product certifications | CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22; TÜV |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2; Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m; 2000...5000 m with derating factor |
