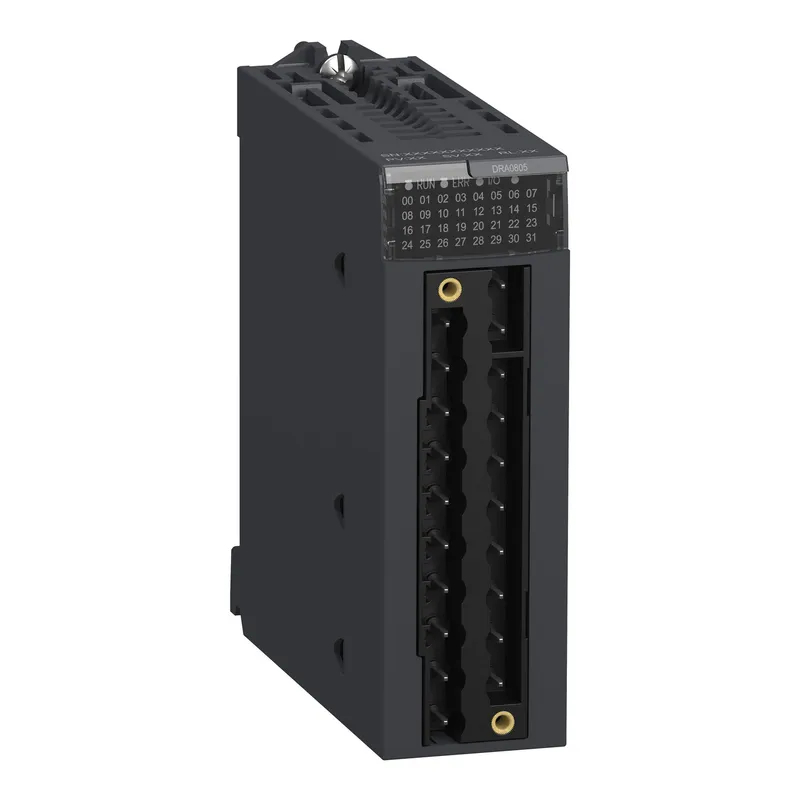

Schneider Electric BMXDRA0805

Discrete output module X80 - 8 outputs - relay - 24..240 V AC

MPN
BMXDRA0805
EAN
3595863910650
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BMXDRA0805 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the Schneider Electric BMXDRA0805?

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Discontinued by Schneider Electric; the manufacturer's successor is BMXDRA0815. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon X80
Product or component typeDiscrete output module

Complementary

Minimum switching current10 mA 5 V DC
Response time on output< 10 ms activation; < 8 ms deactivation
Insulation resistance> 10 MOhm 500 V DC
MTBF reliability2119902 H
Net weight0.145 kg

Environment

IP degree of protectionIP20
Protective treatmentStandard version
Directives2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
Dielectric strength2000 V AC at 50/60 Hz 1 min
Relative humidity5…95 % at 55 °C without condensation
Environmental characteristicCorrosion resistance; Dust resistant

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMXDRA0805: frequently asked questions

Can I still buy the BMXDRA0805 now that it is discontinued?

Yes. Schneider Electric has discontinued the BMXDRA0805, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDRA0815 as its successor — we can quote both.

When can BMXDRA0805 be shipped?

BMXDRA0805 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXDRA0805 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXDRA0805 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDRA0805, subject to availability and destination.

More Schneider Electric parts

Schneider Electric BMXDDO3202KC – Discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating
Schneider Electric
BMXDDO3202KC

Discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating

Schneider Electric BMXDDO6402K – Discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive
Schneider Electric
BMXDDO6402K

Discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive

Schneider Electric BMXDDO6402KC – Discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive, conformal coating
Schneider Electric
BMXDDO6402KC

Discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive, conformal coating

Schneider Electric BMXDRA0804T – Discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
Schneider Electric
BMXDRA0804T

Discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

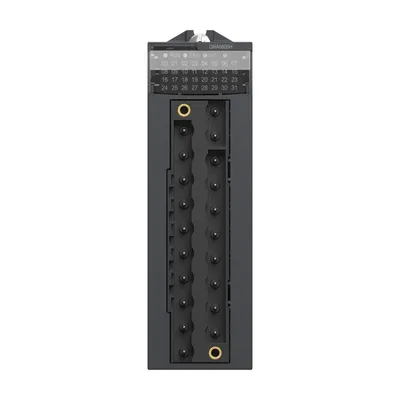

Schneider Electric BMXDRA0805H – Discrete output module X80 - 8 O relay - 24..240 V AC - for severe environments
