Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Open slots | Moment of resistance in the x-direction [Wx] [cm³] | Moment of resistance in the y-direction [Wy] [cm³] | Weight [kg] |
|---|---|---|---|---|---|

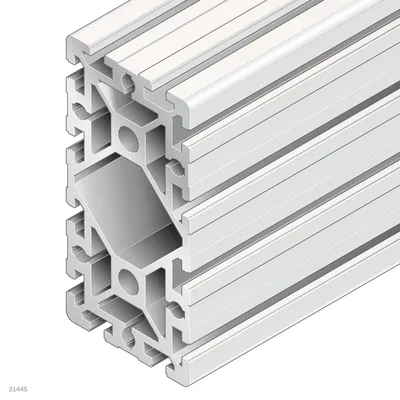

| 3842993676 | 90x180 | 12.0 | 237.6 | 121 | 0 |
| 3842990416 | 90x180 | 12.0 | 237.6 | 121 | 0 |

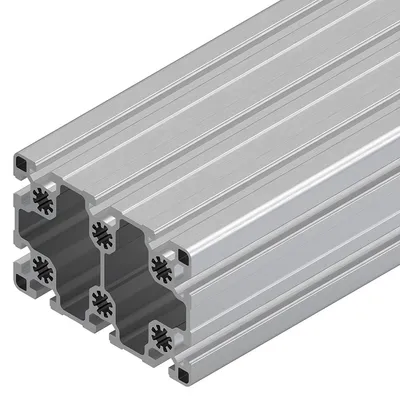

| 3842564806 | 90x135L | 10.0 | 93.26 | 67.84 | 54.9 |
| 3842993776 | 90x135L | 10.0 | 67.84 | 93.26 | 0 |
| 3842994179 | 90x135L | 10.0 | 93.26 | 67.84 | 0 |

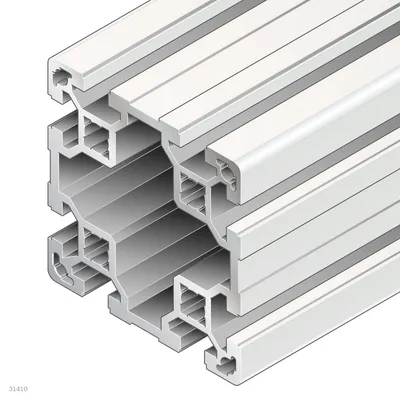

| 3842993147 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842993148 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842993134 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842529348 | 80x80L | 8.0 | 33 | 33 | 27.82 |
| 3842993151 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842993150 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842993149 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842529347 | 80x80L | 8.0 | 33 | 33 | 190 |

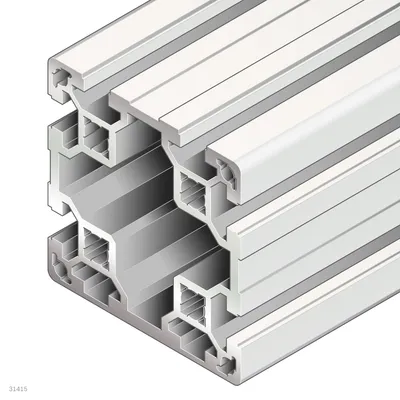

| 3842536482 | 80x80L 6N | 8.0 | 33.5 | 36.2 | 31.04 |
| 3842536481 | 80x80L 6N | 6.0 | 33.5 | 36.2 | 187 |
| 3842993675 | 80x80L 6N | 6.0 | 33.5 | 36.2 | 0 |
| 3842993423 | 80x80L 6N | 6.0 | 33.5 | 36.2 | 0 |

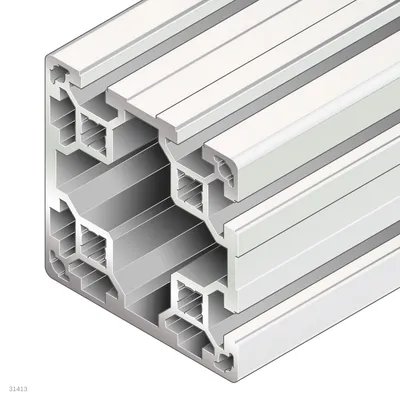

| 3842538334 | 80x80L 4NVS | 4.0 | 35.6 | 35.6 | 223 |
| 3842993758 | 80x80L 4NVS | 4.0 | 35.6 | 35.6 | 0 |
| 3842993658 | 80x80L 4NVS | 4.0 | 35.6 | 35.6 | 0 |

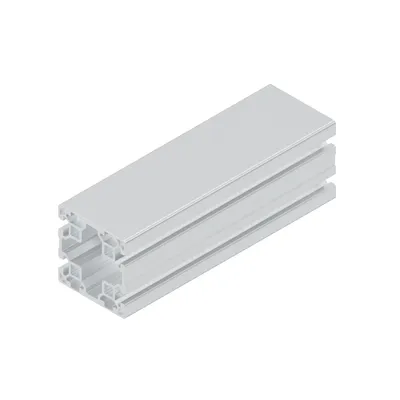

| 3842555651 | 80x80L 4N | 4.0 | 35.6 | 35.6 | 206 |
| 3842993769 | 80x80L 4N | 4.0 | 35.6 | 35.6 | 0 |
| 3842993674 | 80x80L | 8.0 | 33 | 33 | 0 |
| 3842993133 | 80x80L | 8.0 | 33 | 33 | 0 |
Common to all listed parts
| Profile slot | 10 |
| Color | Natural |
| Material | Aluminum, anodized |
