Bosch Rexroth 3842993776

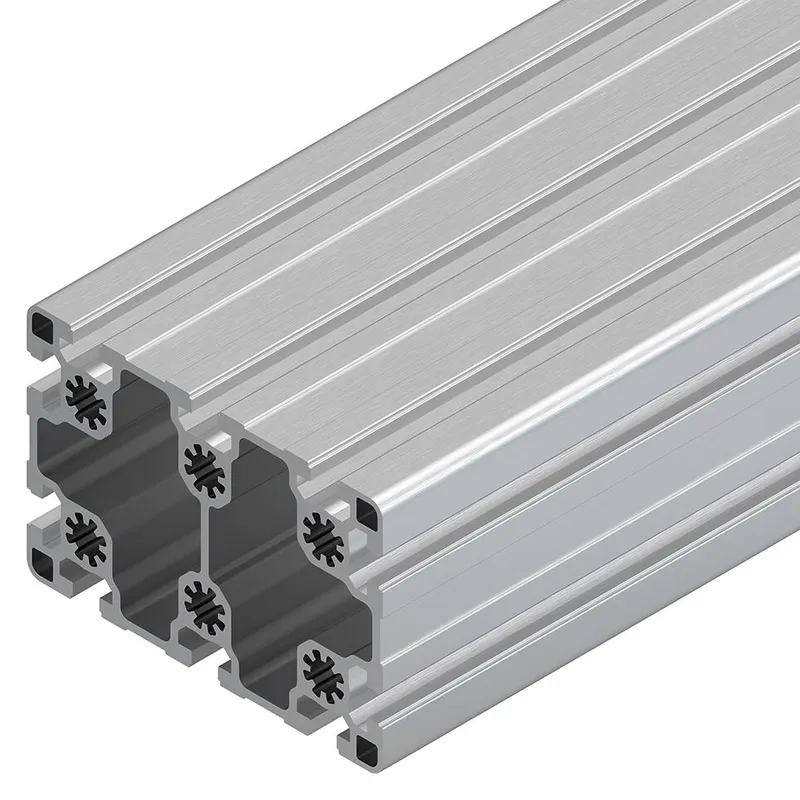

STRUT PROFILE 90X135L Q&E

MPN: 3842993776
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993776?

Strut profile 90x135L Q&E

Specifications

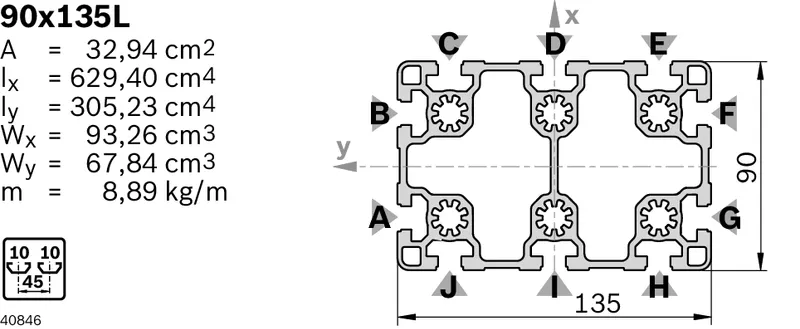

Condition on delivery	Profile finishing
Cross-section	90x135L
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x135
Open slots	10.0
Profile type	Standard
Color	Natural
Delivery unit	1
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M12 / D9,8(C,D,E,H,I,J)<sup>1)</sup> / D17(C,D,E,H,I,J)<sup>1)</sup> / DB17 / F1(A,F)
Mass [m] [kg]	8.89
Area moment of inertia in x-direction [lx] [cm⁴]	629.4
Area moment of inertia in y-direction [ly] [cm⁴]	305.23
Profile surface [A] [cm²]	32.94
Moment of resistance in the x-direction [Wx] [cm³]	67.84
Moment of resistance in the y-direction [Wy] [cm³]	93.26
Torsional moment of inertia [It] [cm⁴]	163.7
Moment of torsion resistance [Wt] [cm³]	39.6
Notice	DGmax = 45°; Lmin1 / Lmin2 = 534 / 768 mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Weight [kg]	0
